26

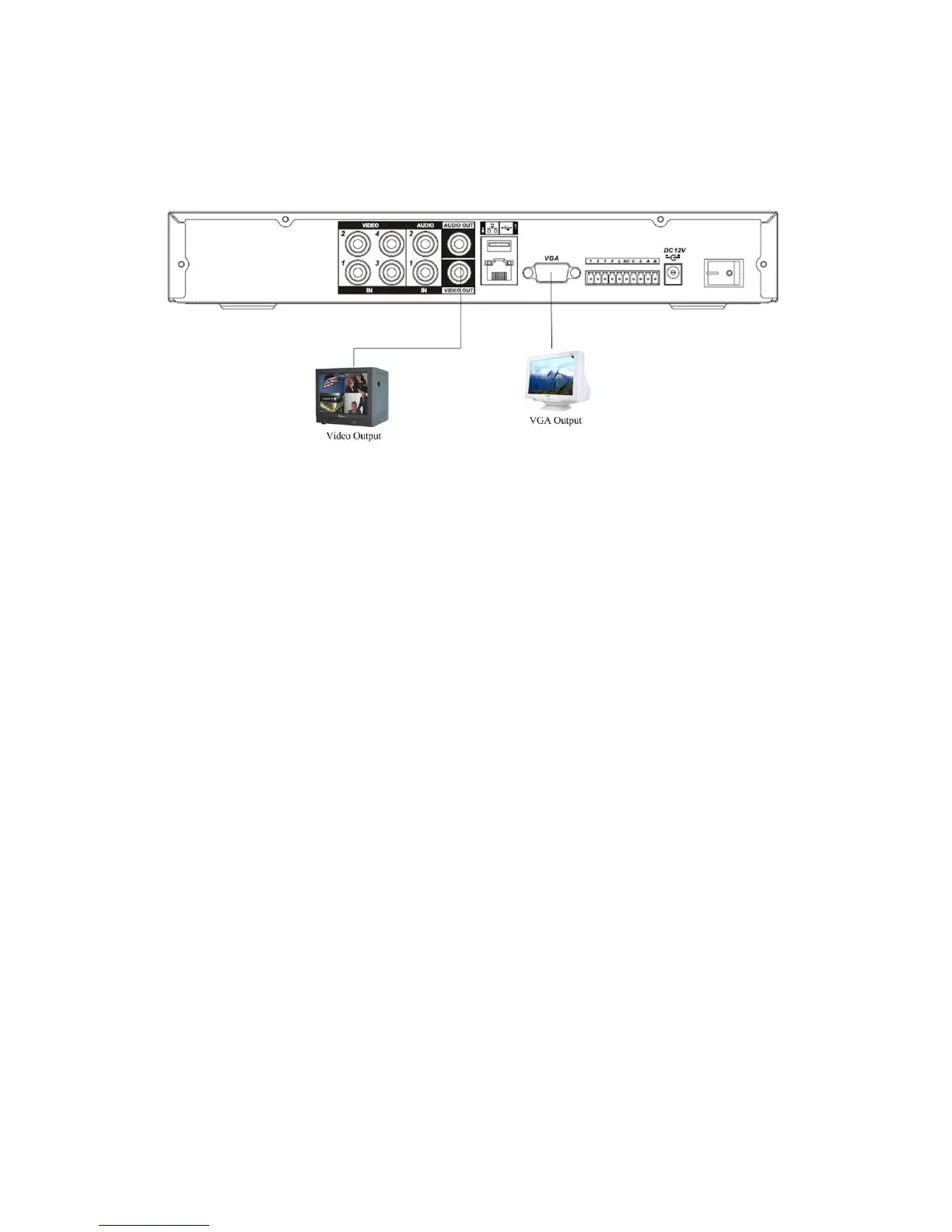

Figure 3-2
3.6 Connecting Audio Input & Output, Bidirectional Audio
3.6.1 Audio Input
The SDR 2004 adopt BNC port.
Due to high impedance of audio input, please use active sound pick-up.
Audio transmission is similar to video transmission. Try to avoid interference, dry joint, loose
contact and it shall be away from high tension current.
