SIGLENT SDG2042X User Manual

SIGLENT
46 SDG2000X User Manual
LFPulse
Waveform of the low frequency pulse electrotherapy
Tens1
Waveform 1 of the nerve stimulation electrotherapy
Tens2
Waveform 2 of the nerve stimulation electrotherapy
Tens3
Waveform 3 of the nerve stimulation electrotherapy
Mod
AM
Sectional sine AM signal
FM
Sectional sine FM signal
PFM
Sectional pulse FM signal
PM
Sectional sine PM signal l
PWM
Sectional PWM signal
Filter
Butterworth
Butterworth filter
Chebyshev1
Chebyshev1 filter
Chebyshev2
Chebyshev2 filter
Demo
demo1_375pts
TureArb waveform 1（375 pts）
demo1_16kpts
TureArb waveform 1（16384 pts）
demo2_3kpts
TureArb waveform 2（3000 pts）
demo2_16kpts
TureArb waveform 2（16384 pts）
2. To Select the Stored Waveform
Choose Waveforms → Page 1/2 → Arb → Arb Type → Stored Waveforms to
enter the following interface, as shown in Figure 2-22.

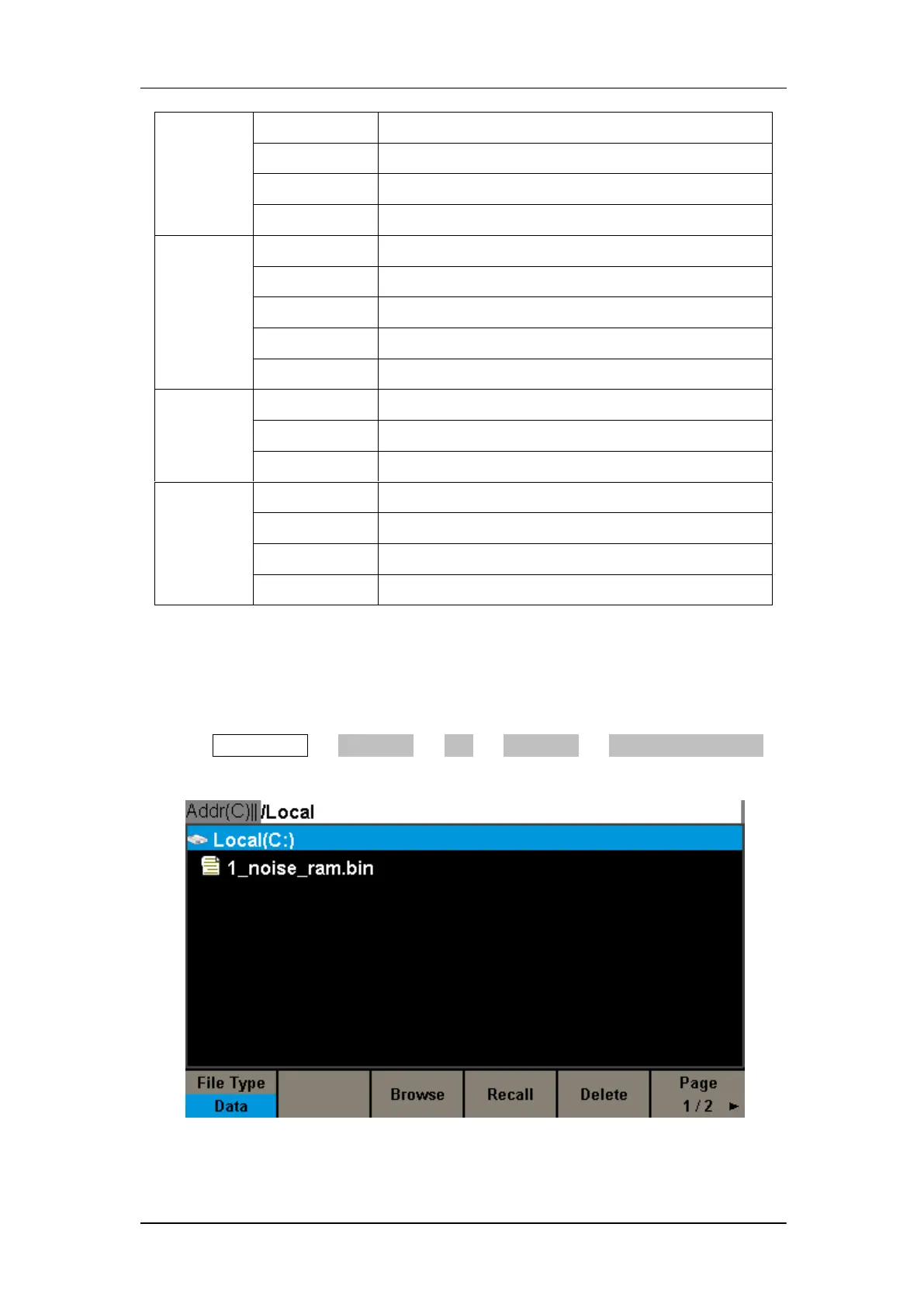

Figure 2-22 Stored Waveform Display Interface
