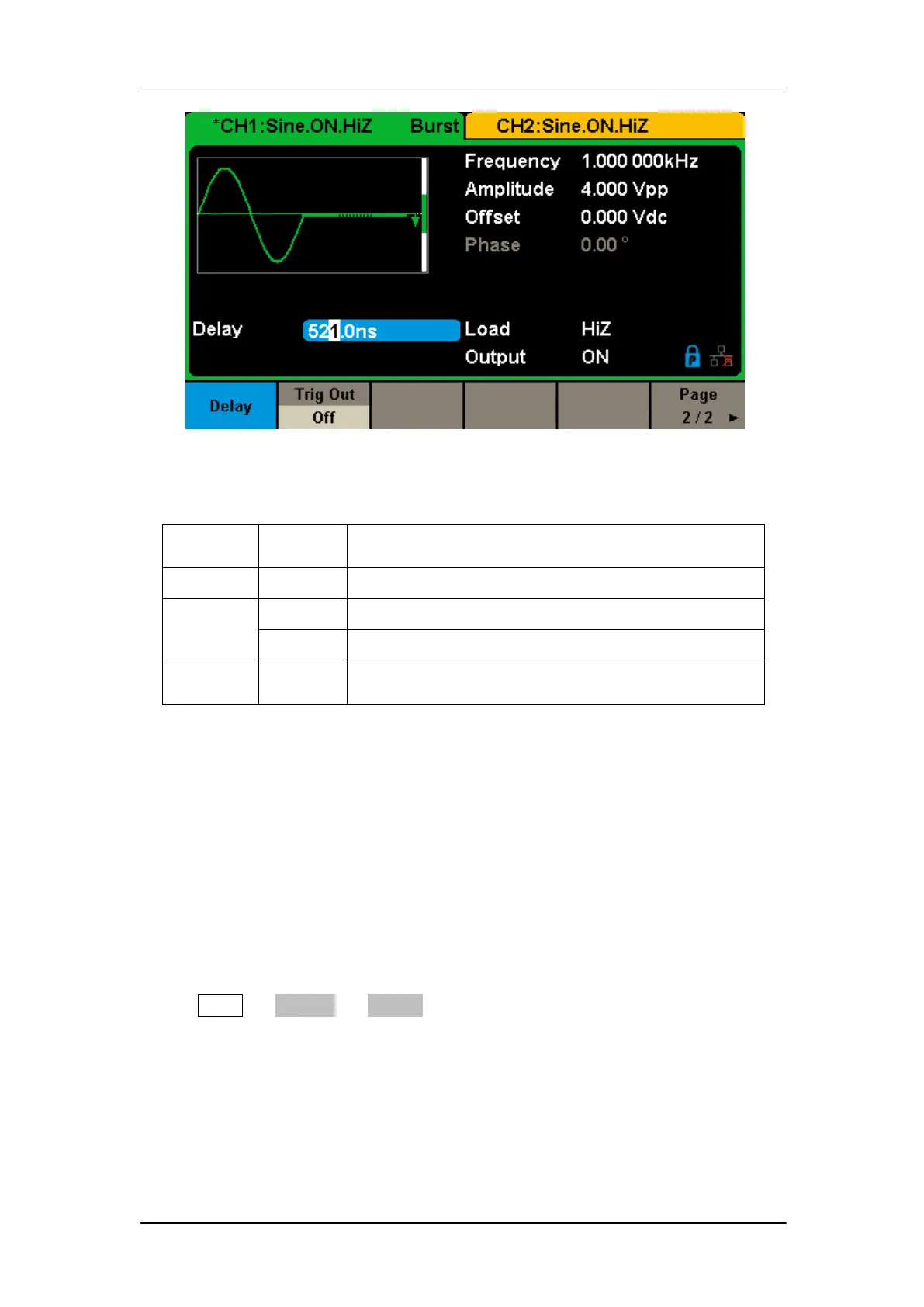

Figure 2-39 N-Cycle Burst Interface (Page 2/2)
Table 2-22 Menu Explanations of the N-Cycle Burst (Page2/2)
Function
Menu
Settings
Explanation
Delay
Set the delay time before the burst starts.
Trig Out
Off
Disable trigger out.
On
Enable trigger out.
Page
2/2
Return to the previous page.
Infinite
In infinite mode, the cycle number of the waveform is set as an infinite value.
The generator outputs a continuous waveform after receiving the trigger signal.
Waveforms that support infinite mode include sine, square, ramp, pulse and
arbitrary.
Press Burst → NCycle → Infinite, and set the trigger source to ―external‖ or
―manual‖. The screen will display an infinite cycle burst, as shown in Figure
2-40 Infinite Burst InterfaceFigure 2-40.
