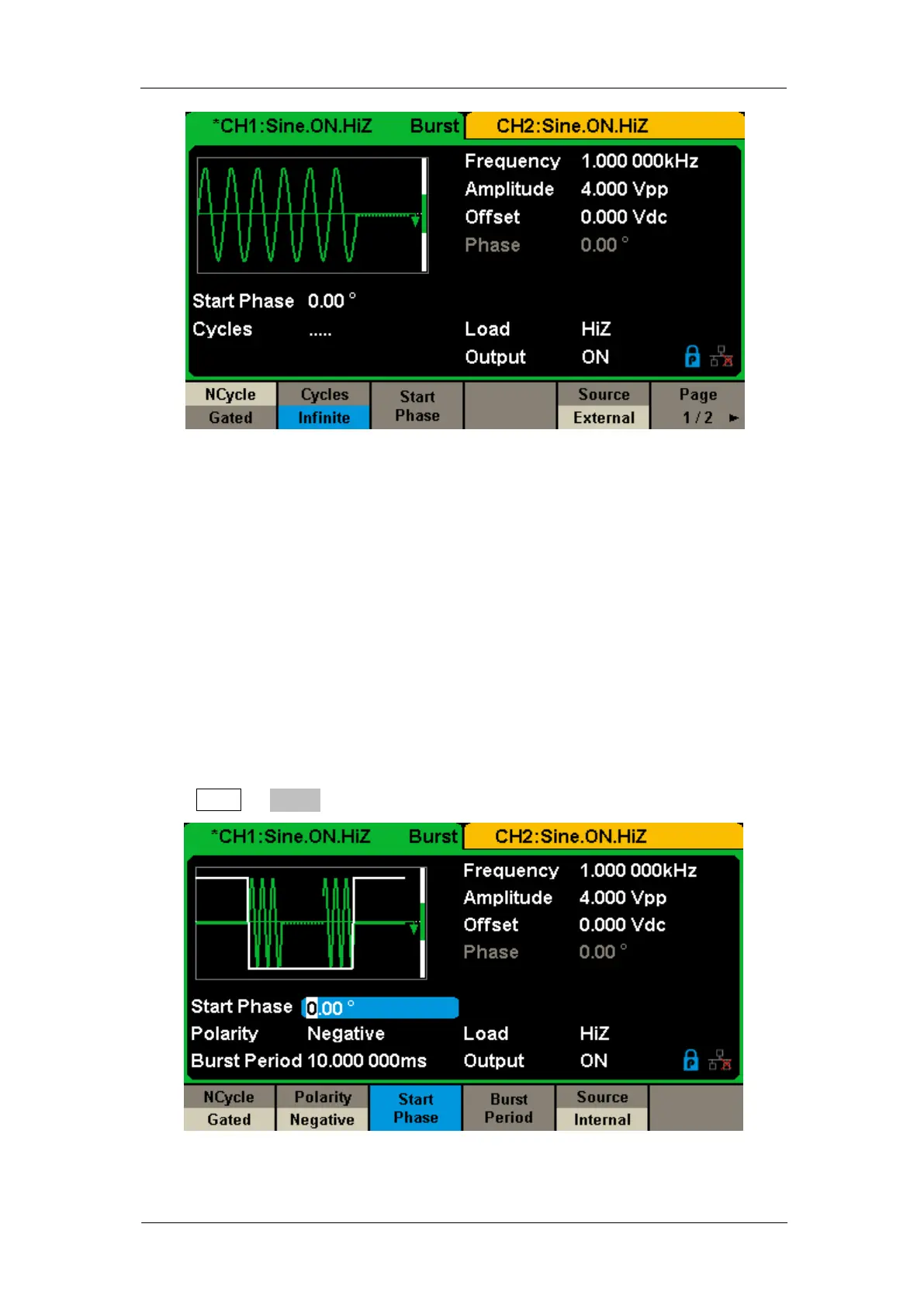

Figure 2-40 Infinite Burst Interface
Gated
In gated mode, the generator controls the waveform output according to the
gate signal level. When the gated signal is ―true‖, the generator outputs a
continuous waveform. When the gated signal is ―false‖, the generator first
completes the output of the current period and then stops. Waveforms that
support gated burst include sine, square, ramp, pulse, noise and arbitrary.
Press Burst → Gated, to enter the following interface.
Figure 2-41 Gated Burst Interface
