To Set the Symmetry of a Ramp Waveform
At power-on, the Symmetry for Ramp wave is 50%. The symmetry can be
adjusted between 0% and 100%. The following steps describe the procedure
to set the symmetry to 60%.
1. Select the Ramp wave function
Press Waveforms → Ramp to select the pulse function and then select the
desired output frequency to 1 MHz.

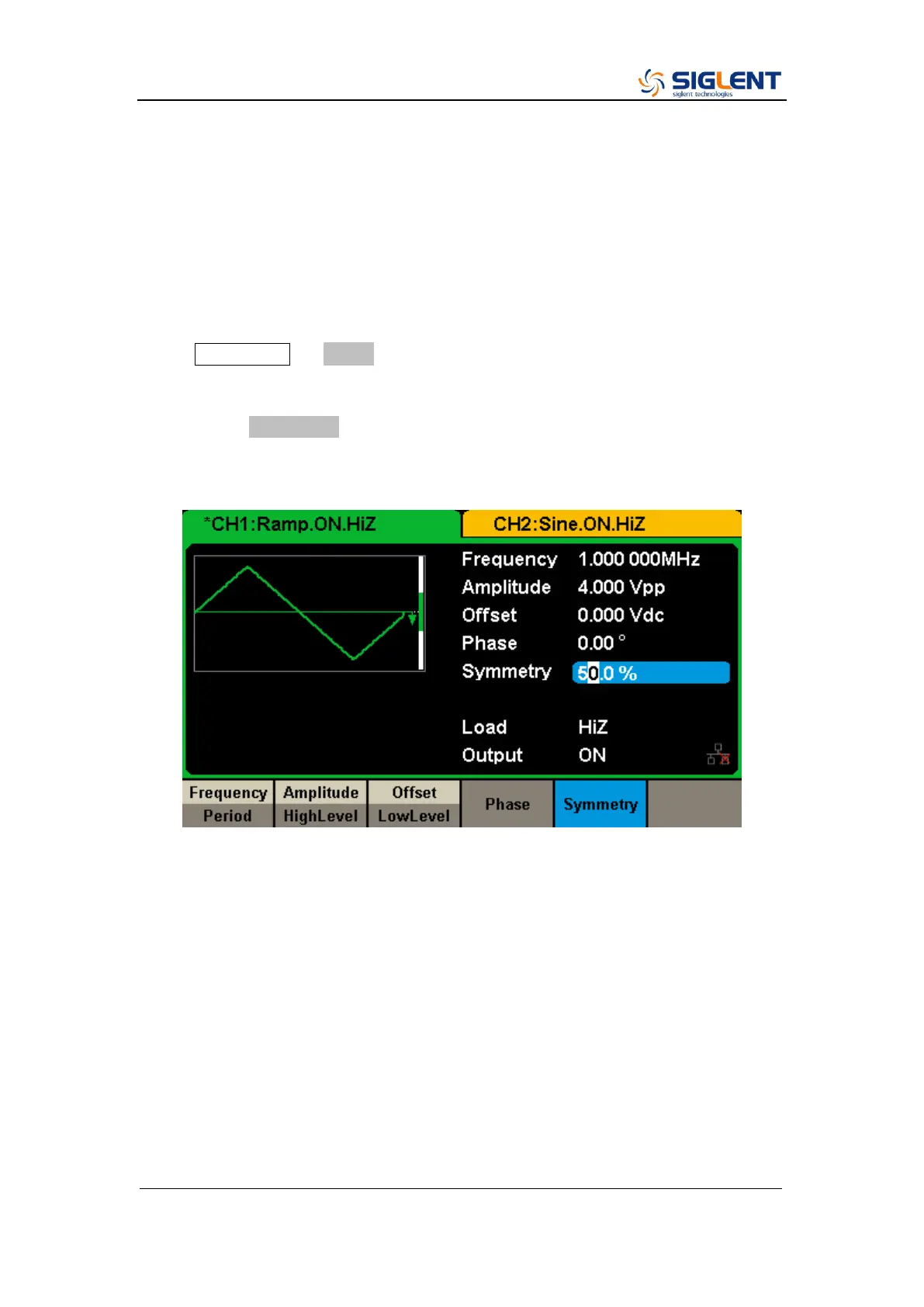

2. Press the Symmetry softkey
The displayed symmetry is either the power-on value or the percentage
previously selected.
3. Input the desired symmetry
Use digital keypad to input the value directly, enter the value “60”, then press
the corresponding softkey to select the desired unit “%”.
