SDG2000X_ServiceManual_SM0202X-E01B.doc
35

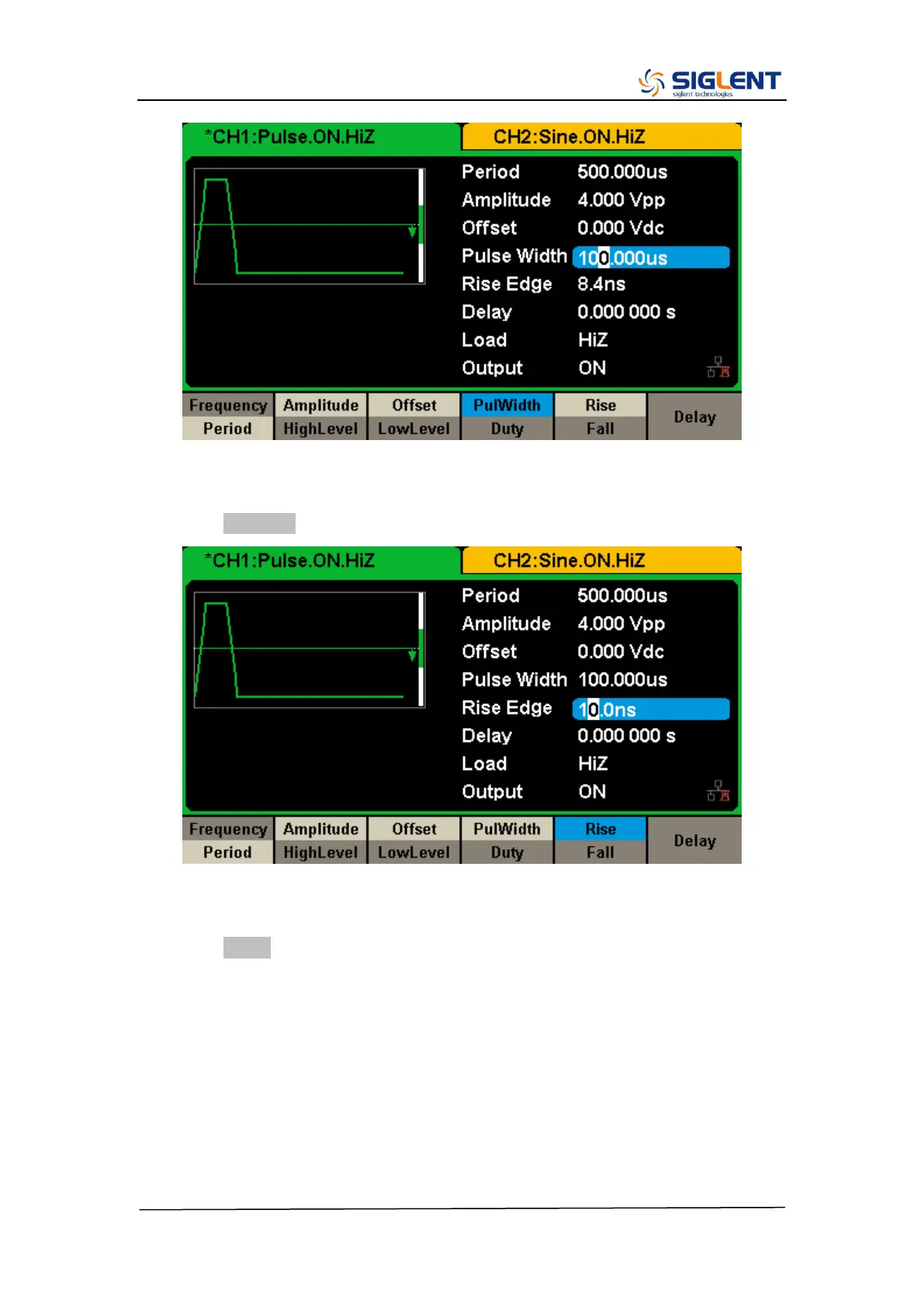

4. Set the Edge Time
Press the Rise/Fall softkey and then set the rising edge to 10 ns.
5. Set the Pulse Delay
Press the Delay softkey and then set the delay time to 50 ns.
