SDG2000X_ServiceManual_SM0202X-E01B.doc
55

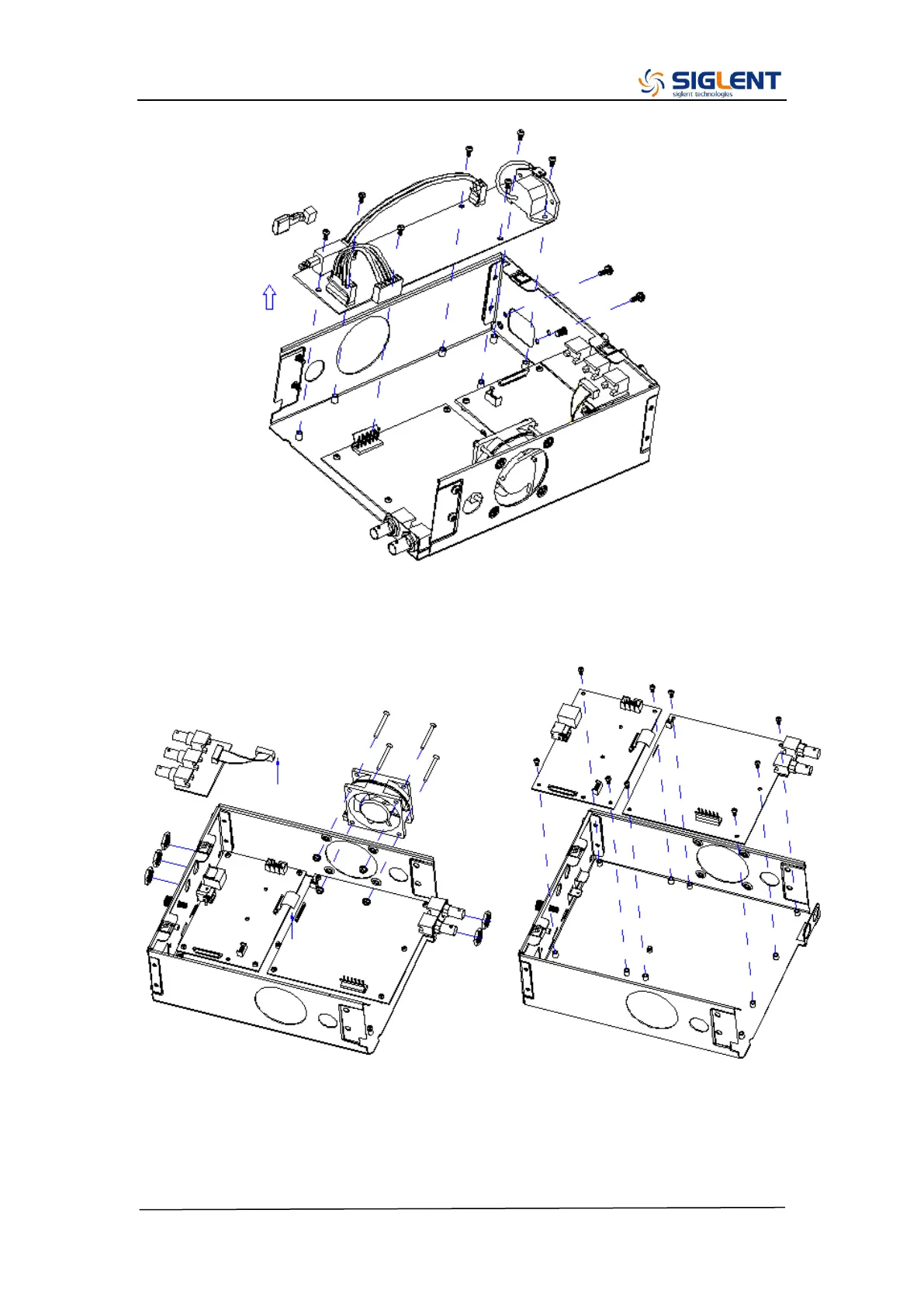

10. Pull out the connecting cable as shown in the following figure and then
remove the fan, rear interface board, channel board and main board.
Note:
To assemble the generator, please follow these same steps in reverse order.
