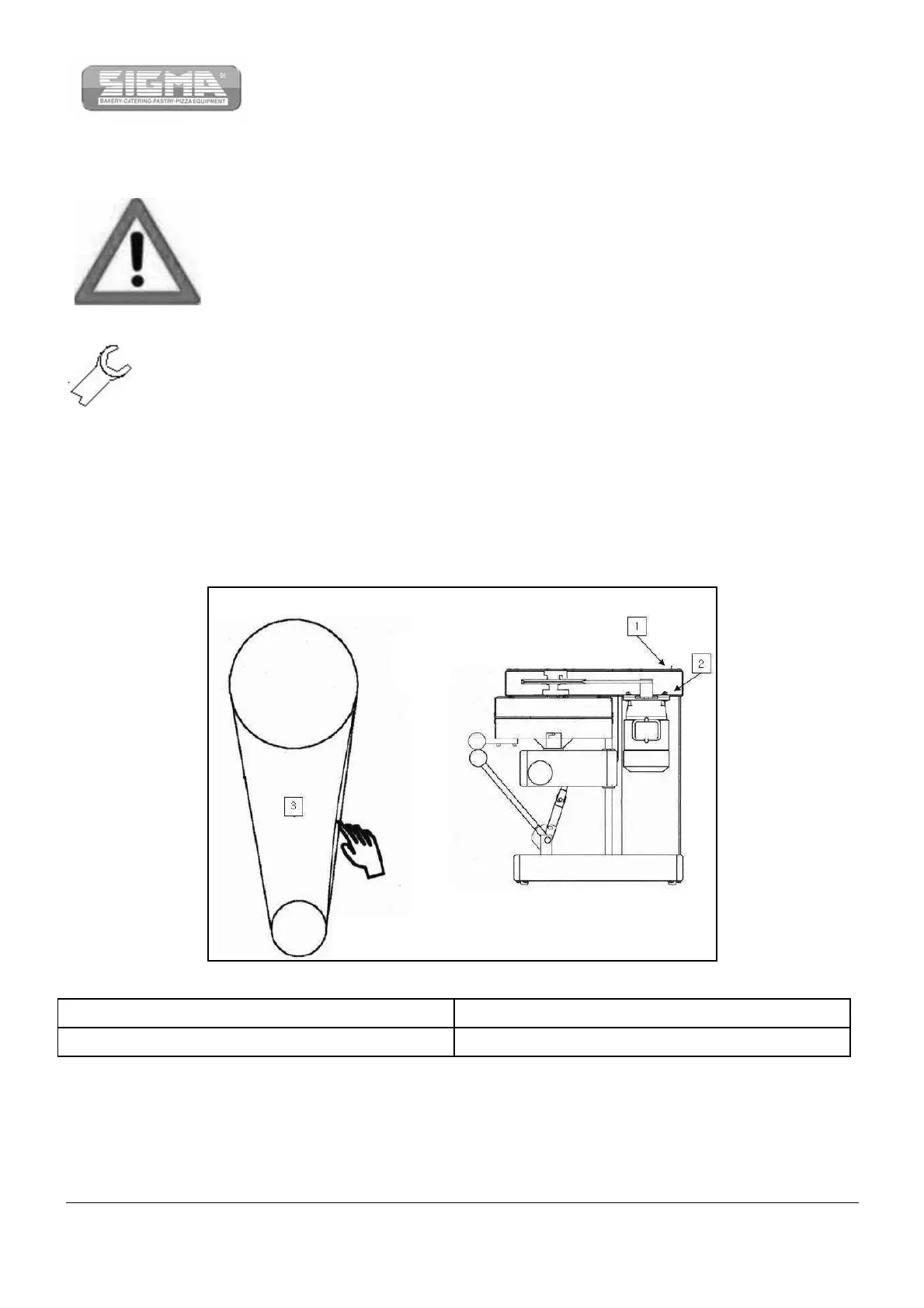

14.5.2. Belt tensioning procedure
Remove the upper casing screws (1) (see chap. 16.1).
Loosen the motor fixing screws (2) but do not remove them completely.
Use a lever against the motor to achieve the desired chain tension.
Check the belt tension (3) (offset of about 5mm (3/16 ")).
Tighten the motor fixing screws (2), put the upper casing back and tighten the screws (1).
To ensure the correct belt tension, see chap. 14.4.4.
ATTENTION: it is recommended to change the full series of belts to prevent the formation of dust.
INTERVAL METHOD
s F, M
FOR ANY MAINTENANCE AND CLEANING OPERATIONS, THE MACHINE MUST BE
OFF AND DISCONNECTED FROM THE ELECTRIC LINE.
Before performing any of the following operations, wear PPE such as: shoes with
reinforced tip and non-slip sole, gloves.
