Instructions, use and maintenance manual Pag. 31/48
SRIZZA 40

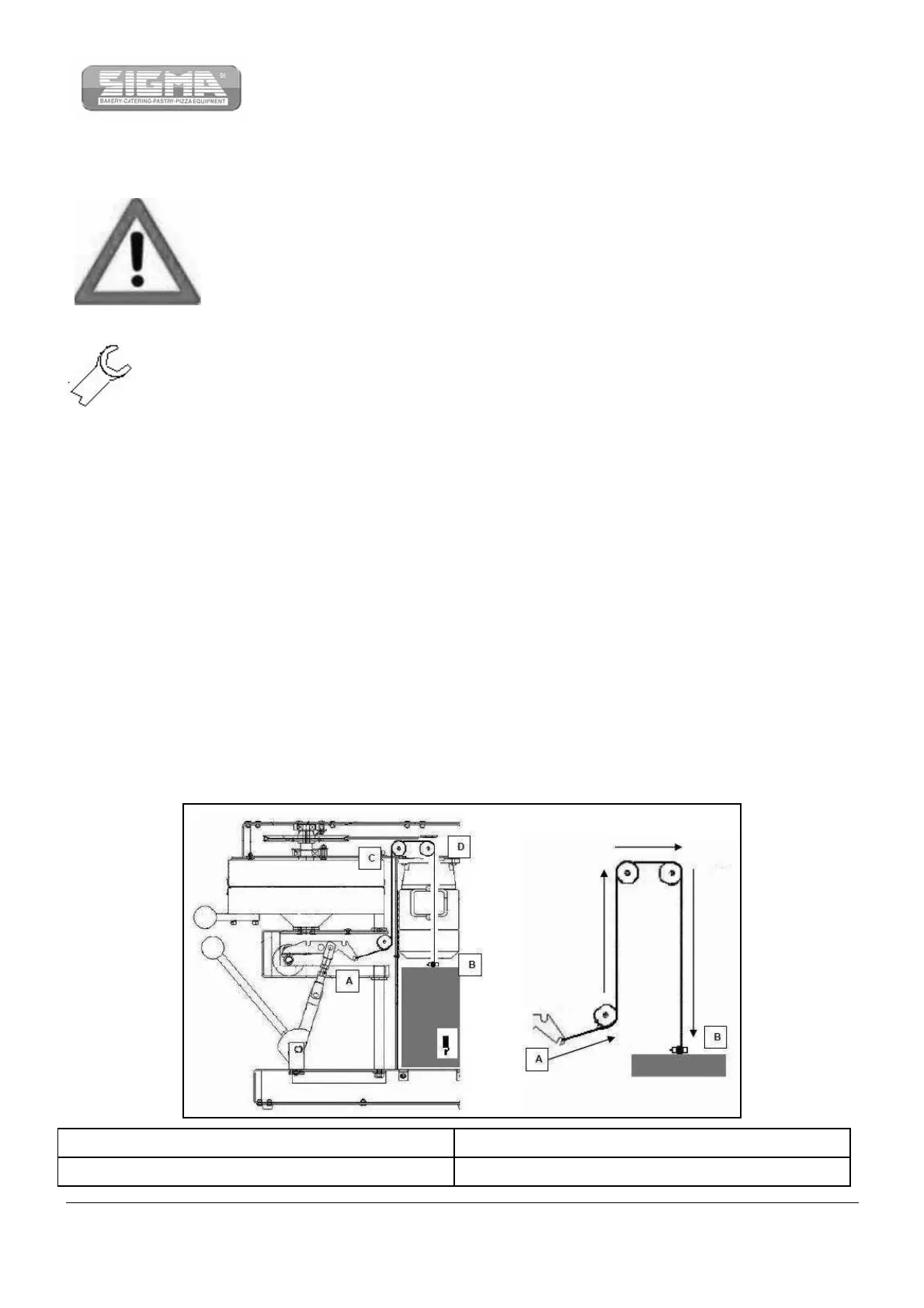

14.5.3. Replacing the counterweight cable
If replacing the counterweight cable, proceed as follows:
•Disconnect the device from the power socket before opening the machine.
•Disconnect the old cable connections from the lifting handle support (A) and from the counterweight
(B).
•Insert the cable before making the mechanical connections
•Insert the cable through the housing slot (C) located behind the upper roller plate.
•The cable passes along the two upper pulleys and through the slot (D) located above the
counterweight.
•The counterweight must be raised by about 10 cm (4") from the base to relieve the tension on the
cable once it is mechanically connected. It is recommended to use a wooden block.
•Insert the cable through the lower pulley where the lifting handle support is located.
•Connect the cable eyelet to the lifting handle support (A).
•Connect the other end of the cable (using the bolt, nut and washer) to the counterweight (B).
•Pull the lifting handle forward to tension the cable and counterweight.
•Remove the wooden block used to support the counterweight.
•Make sure that the counterweight lifts or lowers when the lever is activated.
•Machine cleaning
INTERVAL METHOD
s F, M
FOR ANY MAINTENANCE AND CLEANING OPERATIONS, THE MACHINE MUST BE
OFF AND DISCONNECTED FROM THE ELECTRIC LINE.
Before performing any of the following operations, wear PPE such as: shoes with
reinforced tip and non-slip sole, gloves.
