Instructions, use and maintenance manual Pag. 44/48
SRIZZA 40
TABLE EXPLODED VIEW 6
Pos. Q.ty Description Drawing
1 1 MAIN BODY 86153033-5
2 1 GUIDE 86153048-2
3 1 COUNTERWEIGHT 86153047-2
4 1 SMALL PLATE 02153070
5 1 MASTER SWITCH 25003063
6 1 INDICATOR LIGHT 25009029
7 2 SCREW M6x12 DIN 7985
8 2 SCREW M6x12 DIN 7985
9 1 MICRO-SWITCH 25001327

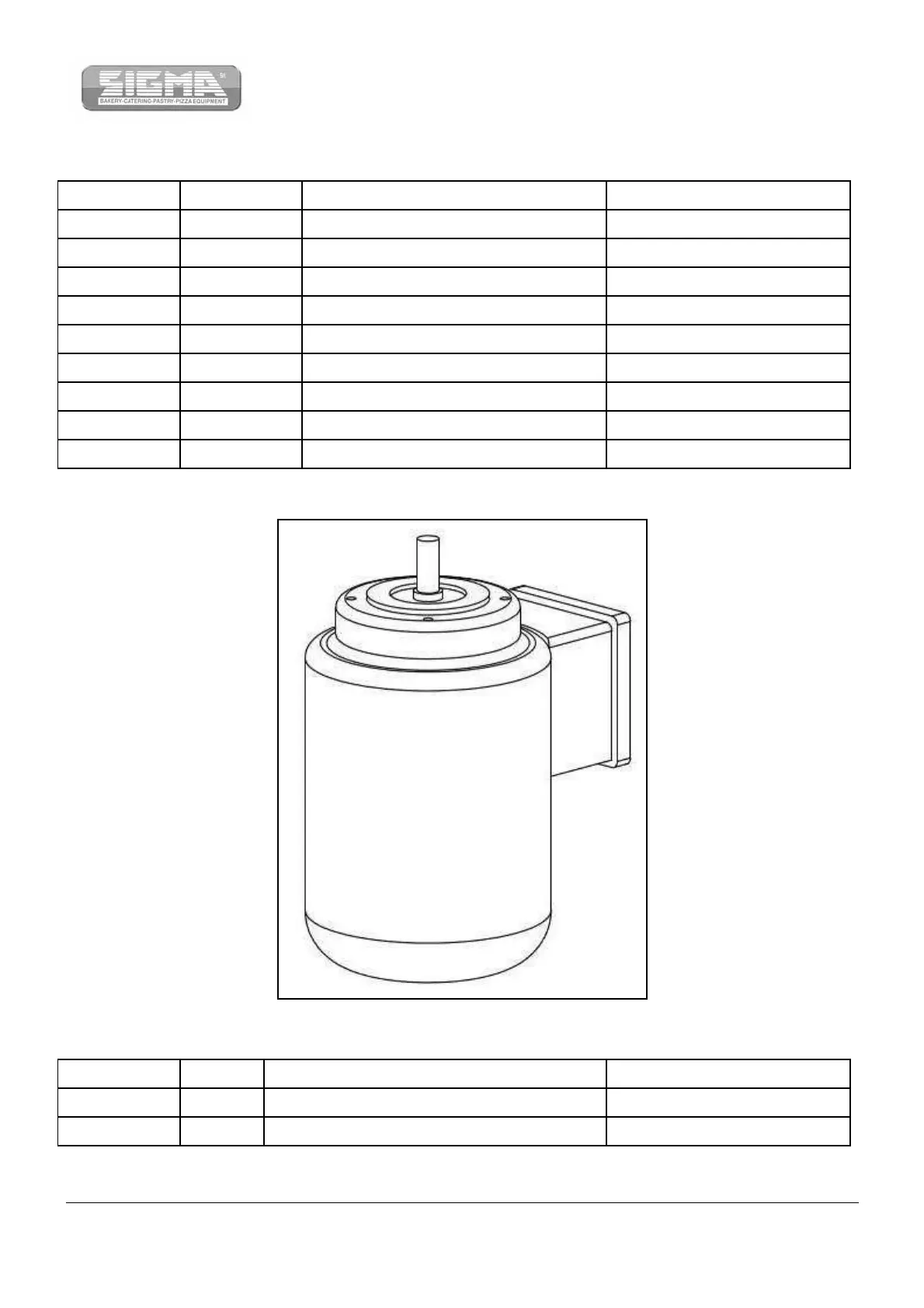

Exploded view 7
Table exploded view 7
Pos. Q.ty Description Drawing
1 1 M71 2P 0.55 kW 230V 50Hz SINGLE-PHASE 11000412
2 1 MOTOR PULLEY 01153076
