4. Installing the MultiHaul™ TG Units
4.5
Mounting and Aligning the MultiHaul™ TG Node on a Pole
To mount the node on a pole:

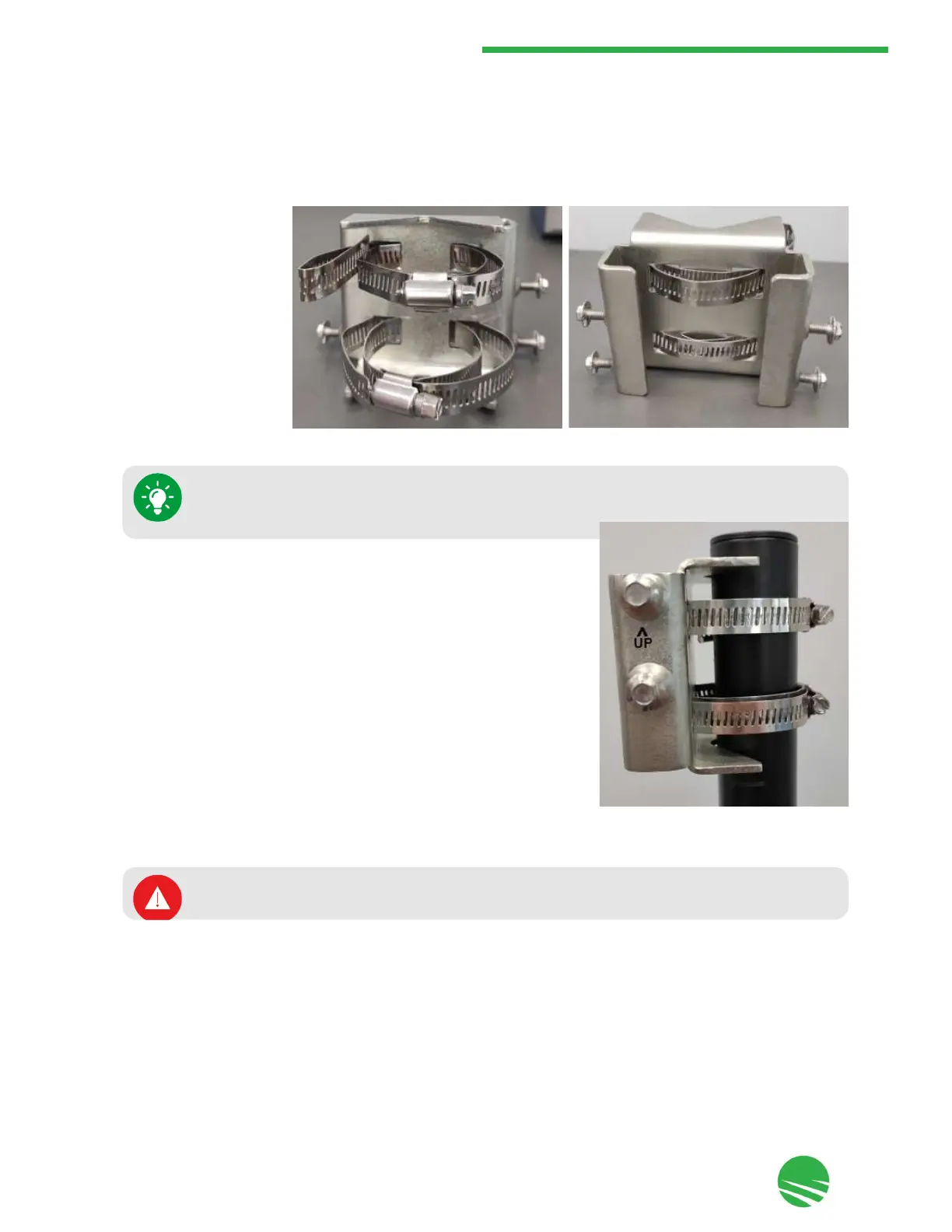

1.
Insert self-locking bands
in the mounting bracket.
2.
Align the mounting bracket with the arrow pointing up and mount it on
the pole.
3.
If all four sectors have a clear field of view and are not blocked by the pole, tighten the self-locking bands.
The self-locking bands provided with the node are suitable for poles with a diameter
of 1.5"-4". Poles with a diameter of 2"-4" are recommended.
Do NOT tighten the self-locking bands yet.
