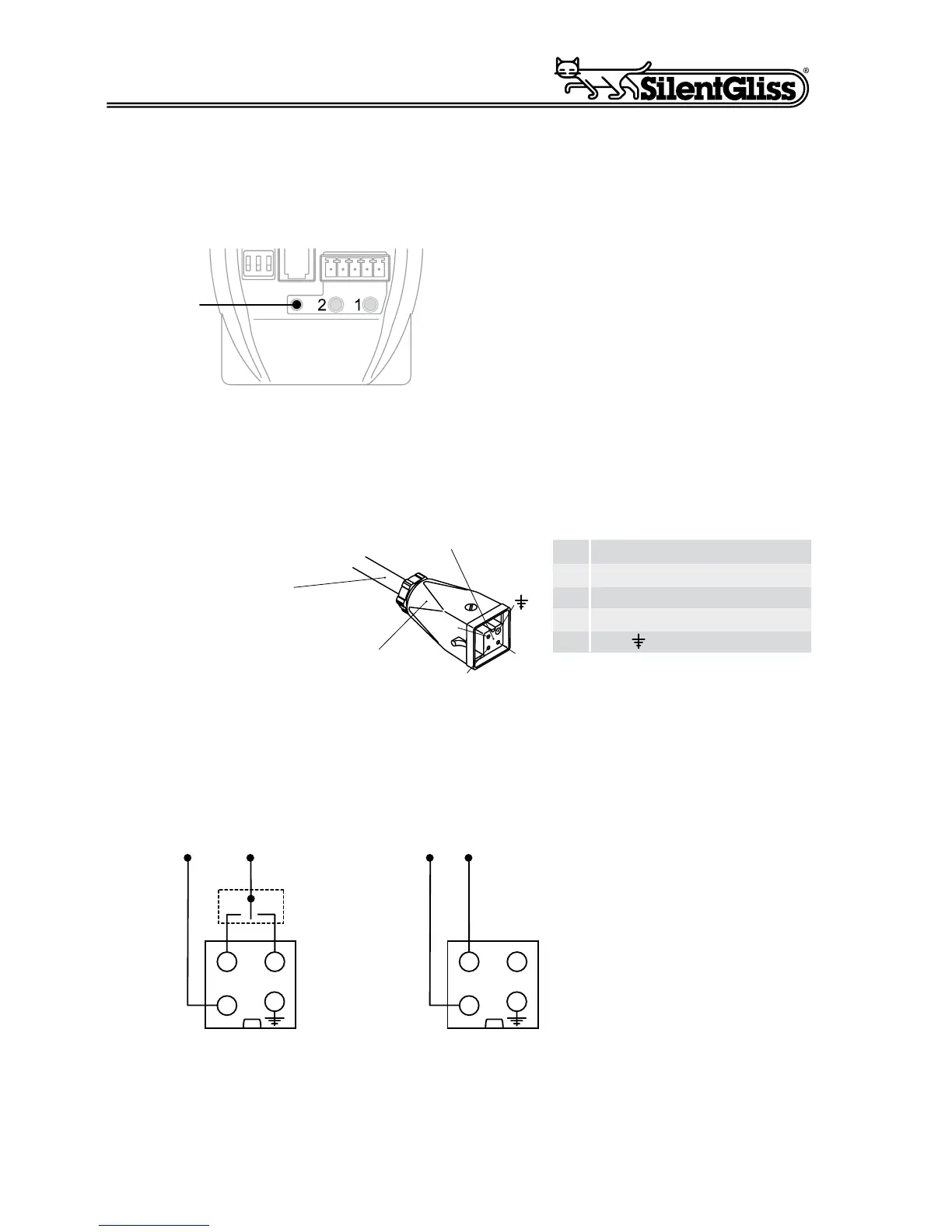

5.5 LED
Flashes or is illuminated in the programming mode.
5.6 Mains Connection and Wiring of
SG 9020 – 9023 (90 – 250V AC/260V AC CB)
Wiring: The motors SG 9020 – 9023 can be wired for non permanent
power as well as for permanent power. The wiring is to be employed as
required by local codes. The wiring diagrams are as follows:
Note!
The earth wire has to be wired according to the international wiring
standards for buildings by reason of a proper grounding. The used
switch must be equiped with a neutral terminal.
DenotationPin
1
2
3
4
Neutral
Phase (rotating direction left)
Phase (rotating direction right)
PE,
Parallel jacketed
thermoplastic cable,
300V with third
conductor for
grounding. (PVC)
Minimum lenght 72.04" (1.83m)
1
Contact H-A 3TGV 10426400
Contact H-A 3BS 10421000
2
3
