RJ-45 Console Port Pinouts
The RJ-45 console port pinouts vary by appliance model.

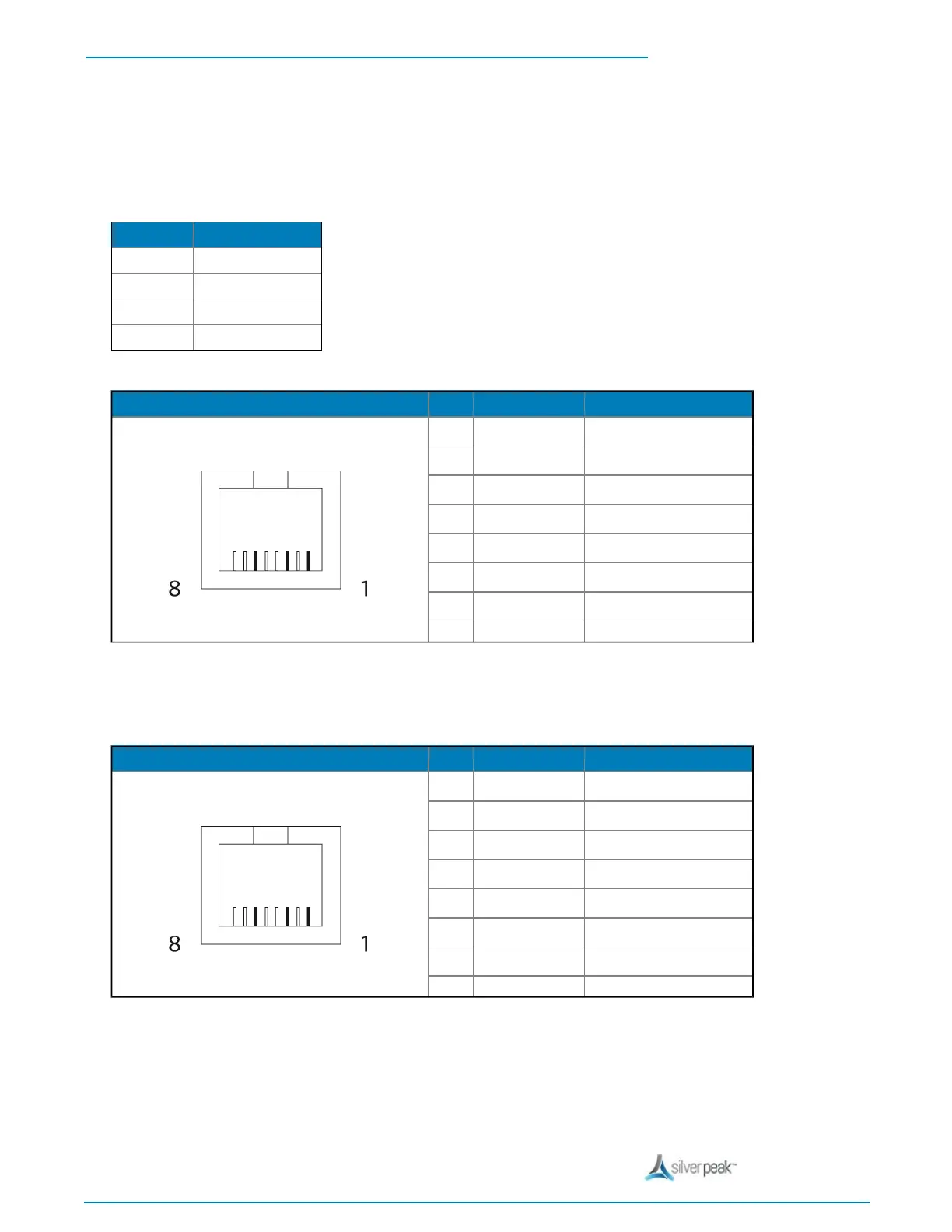

The following appliances are associated with this RJ-45 pinout diagram:
Model Part Number
NX-700 200849
NX-1700 200863
EC-XS 200889
EC-S 200877
Pin Signal Description
1 RTS Request to Send
2 DTR Data Terminal Ready
3 SOUT / TxD Transmitted Data
4 GND Ground
5 GND Ground
6 SIN / RxD Received Data
7 DSR Data Set Ready
8 CTS Clear To Send
The EC-US (Part Number 201106) follows the following pinout diagram.
Pin Signal Description
1 RTS Request to Send
2 NC No Connection
3 SOUT / TxD Transmitted Data
4 GND Ground
5 GND Ground
6 SIN / RxD Received Data
7 NC No Connection
8 CTS Clear To Send
