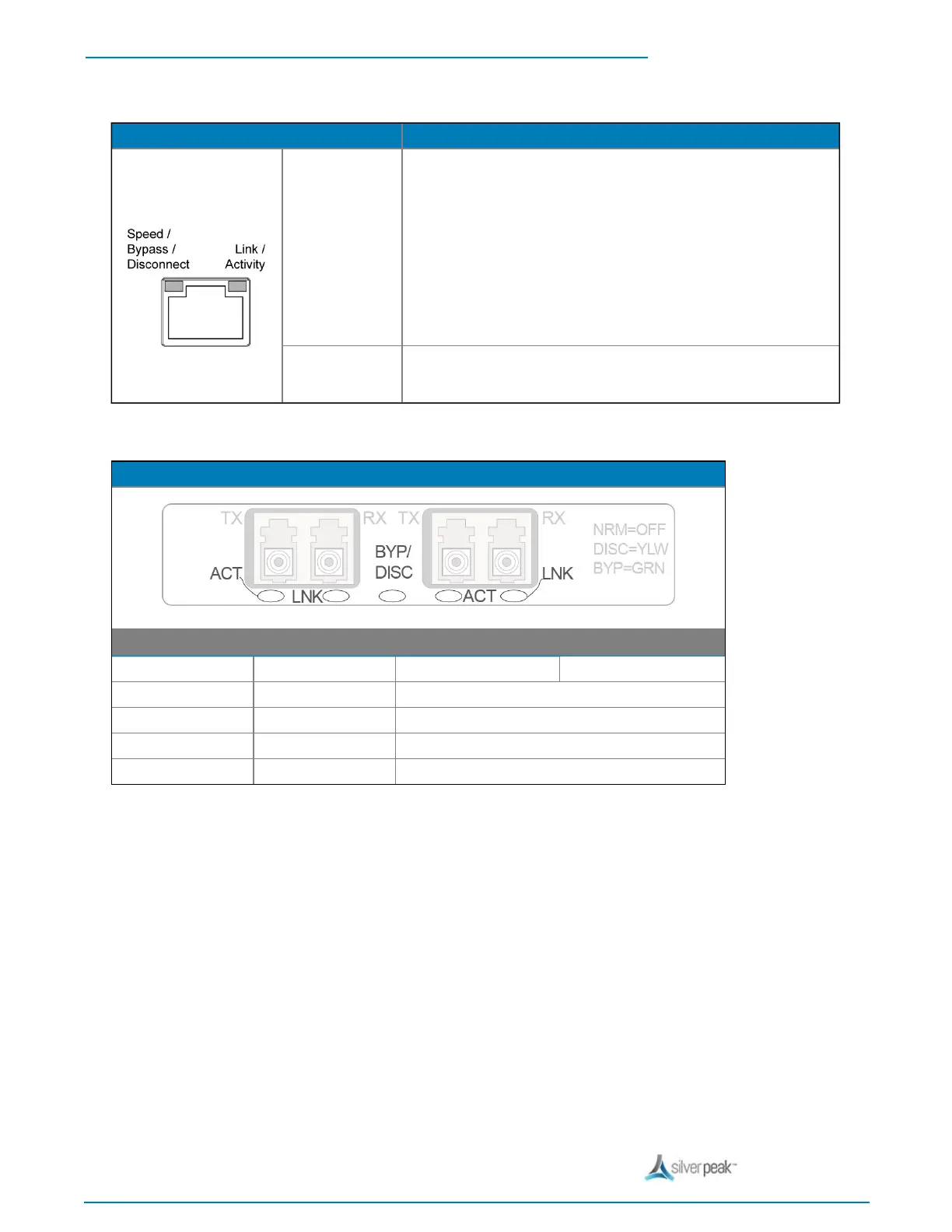

LED lan0 / wan0 / lan1 / wan1
Rear LEDs
Speed / Bypass
/ Disconnect
SPEED
l Yellow solid = Connection speed is 1000 Mbps
l Green solid = Connection speed is 100 Mbps
l Not illuminated = Connection speed is 10 Mbps
Bypass/Disconnect
l Green blinking = Bypass
l Yellow linking = Disconnect
Link/ACT
l Green solid = Port is active
l Green blinking = There is traffic
1/10 Gbps fiber interfaces for tlan / twan — SR (Short Reach) modules
Indicator
10G 1G
LNK
Link blue solid green solid
ACT Activity green blinking
BYPASS Bypass green solid
DISC Disconnect yellow solid
NRM Normal off — In NRM mode, the ports are independent interfaces
