The surfaces of some items of furniture might
contain components that can soften the rubber
feet of the product. If necessary, place a mat
under the product’s rubber feet.
Set up or mount the product in such a way
that the provided ventilation openings and the
loudspeaker
[]
are not covered.
Do not operate the product in a hot, wet or
extremely damp environment or in the vicinity
of flammable materials.
The mounting location must be selected so that
the product is not exposed to vapours. Do not
install the product directly over a hotplate.
Installation under a wall
cupboard
3.1 cm
6.3 cm

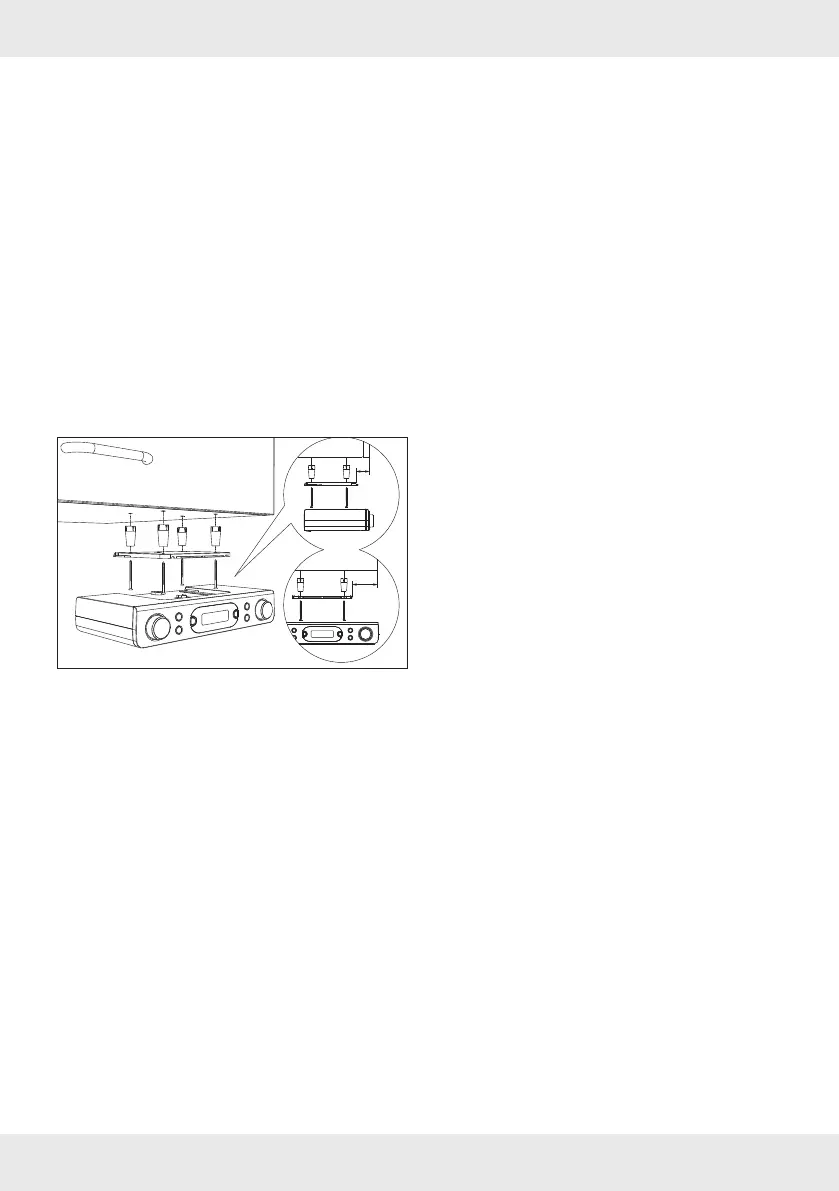

Using the supplied mounting plate [], you can
install the product e.g. under a wall cupboard.
Proceed as follows to mount the product:
Slide the mounting plate [] to the rear and
remove it from the product.
Find a suitable installation location for the
product (see “Requirements for the set-up
location”).
Hold the mounting plate [] under the
installation location. Ensure that the front edge
of the mounting plate is approx. 3.1 cm behind
the front of the cupboard so that the product is
flush with the cupboard after installation. The
side edges of the mounting plate [] must be
spaced approx. 6.3 cm away from adjacent
cabinets or walls.
Mark the 4 mounting points with a pencil.
Using a pin or nail, make a small depression at
the respective marking points. In hardwoods,
drill a shallow hole in the markings using a
Ø 2.5 mm wood drill bit.
If required, place the supplied spacers
[]
between the cupboard and the mounting plate.
If you are using the spacers
[]
, you will need
the long mounting screws
[]
.
Screw the mounting plate [] tight using the
mounting screws (
[]
or
[]
).
With the top of the product against the
mounting plate [], push the product back until
it clicks into place.
Check to ensure that the product is firmly in
position and safely route the power cable and
the wire aerial.
Dismantling
Pull the product forwards off the mounting
plate [].
Unscrew the screws (
[]
or
[]
) on the
mounting plate and remove the mounting
plate [] from the wall cupboard.
