8.2 Clean out valve
The clean out valve is used to evacuate the conveying line after each conveying
cycle. It is necessary used in case where vertical conveying line of more than 5 m
difference in height are required. It is also used in connection with driers, in order
to avoid pre-dried materials remain in the conveying line.
The clean out valve should be installed at the beginning of the conveying line;
i. e. directly at the suction pipe or fixed the suction point.
Electric connection to terminals LS- and LS+.

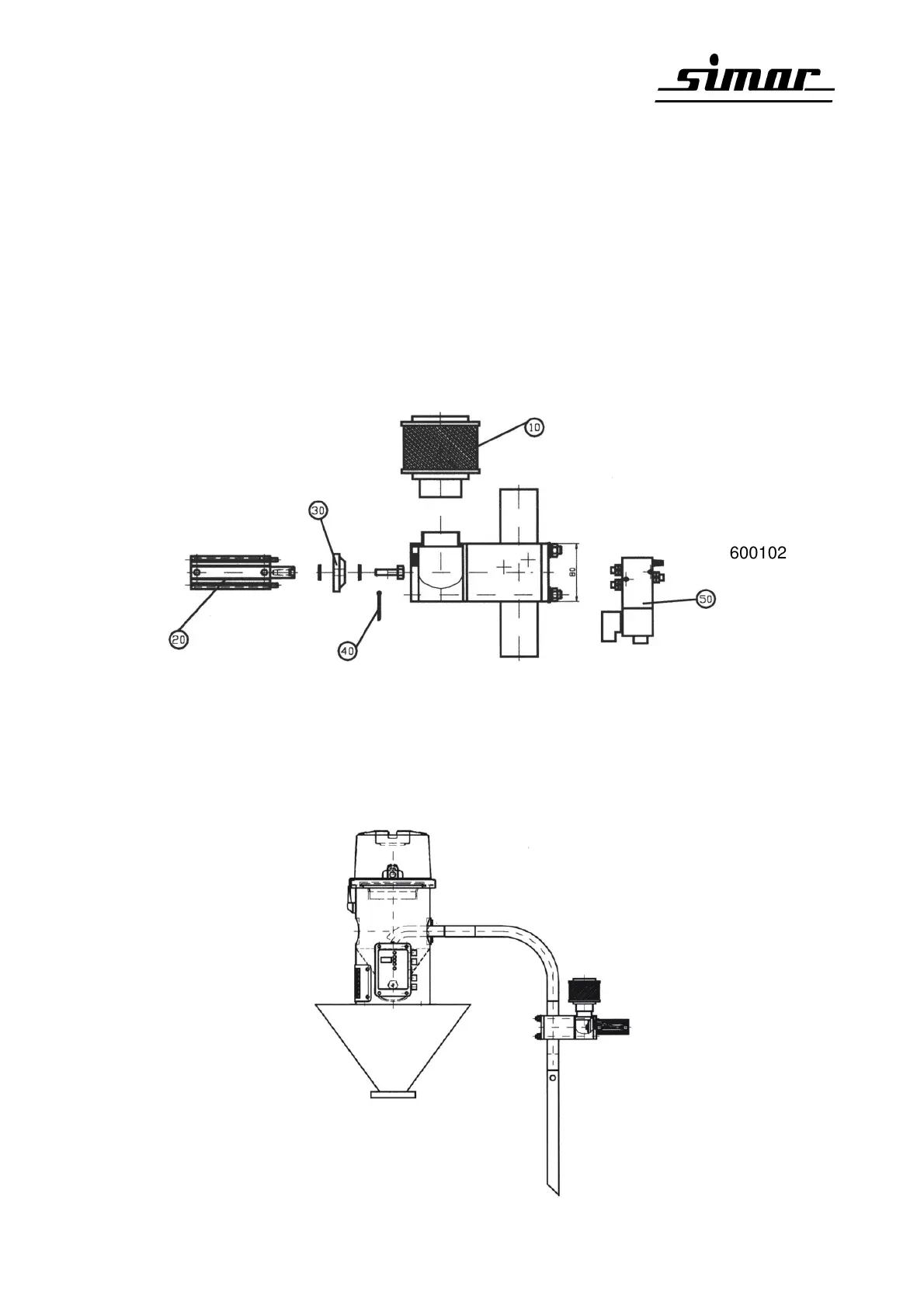

Installation of clean out valve
Suction filter
art.-no 5301001
Solenoid valve
art.-no 6001023
Cylinder
art.-no 6011005
art.-no 1038005
Splint
art.-no 5930004
