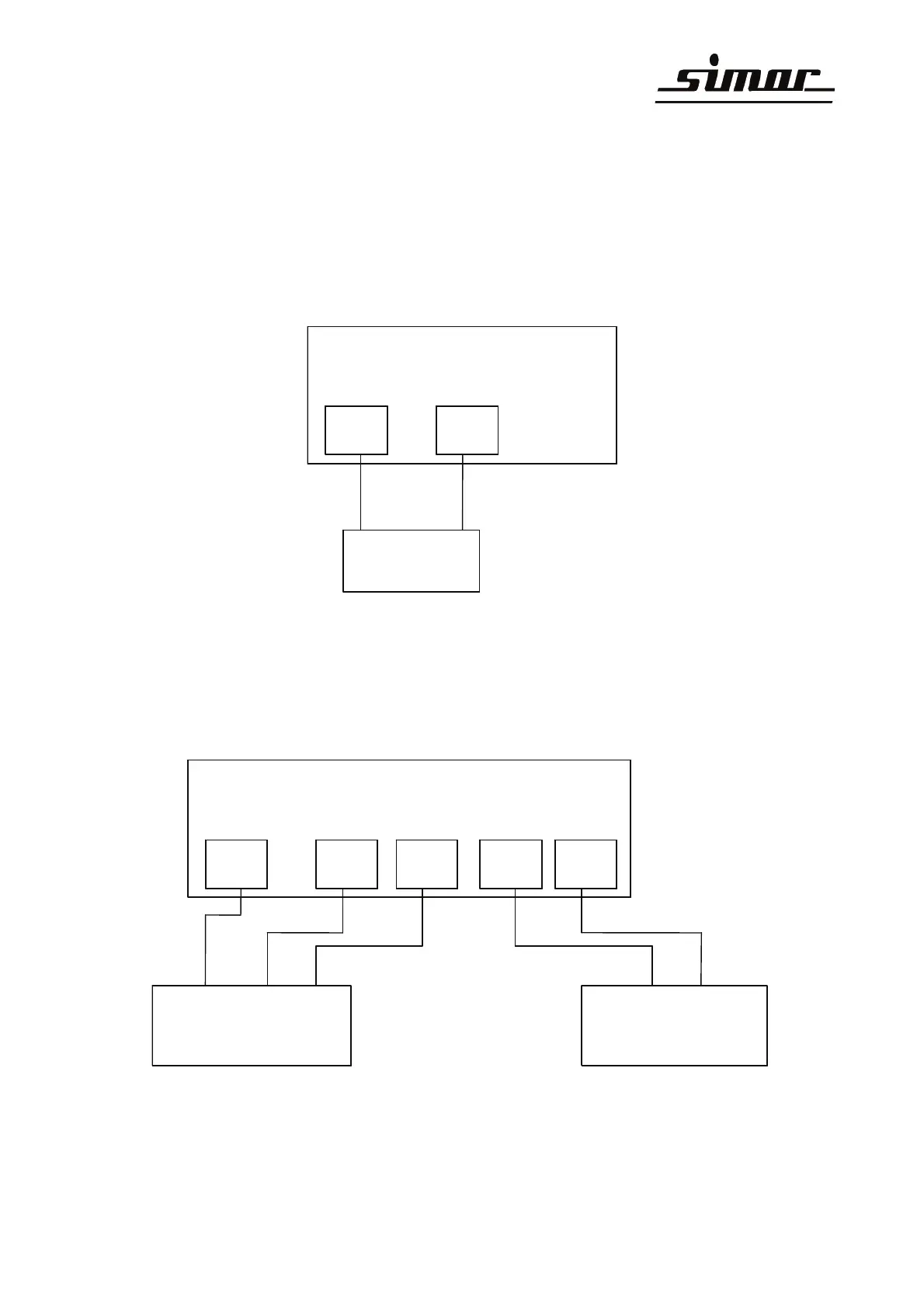

9 Terminal connection diagramm for
FX 2002 control unit(C0 = 0.10)
When using a reed relay (Standard)
C3 <> 0 P1 = conveying time
P2 = pause time
When using a light barrier (C3=0)
C3 = 0 P1 activ = timing valve open
P2 activ = timing valve closed
FX-Steuerung
ST15
+24V
Reedrelais
ST13
IN
FX-Steuerung
ST15
+24V
ST16
GND
ST17
+24V
ST18
GND
+ -
Sender-Lichtschranke
OUT + -
Empänger-Lichtschranke
ST11
IN
FX control unit
Reed relay
FX control unit
Receiver light barrier
Transmitter light barrier
