Position Code Description
1 6150700 Divertor valve microswitch
2 6219701 Cap MPMV 3310 for microswitch
3 6223800 Washer MPMV 3318
4 6220601 O-ring R1 MPMV 3325
5 6218500 Clip Ø 17 for diverting valve
6 6153101 Diaphragm assembly for divertor valve
Position Code Description
7 6231201 Brass ring nut MPMV 3320
8 6223902 Teflon short spacer MPMV 3315
9 6222000 D.H.W. filter MPMV 3326
10 6220602 O-ring 4093 MPMV 18
11 6223903 Teflon long spacer MPMV 3316

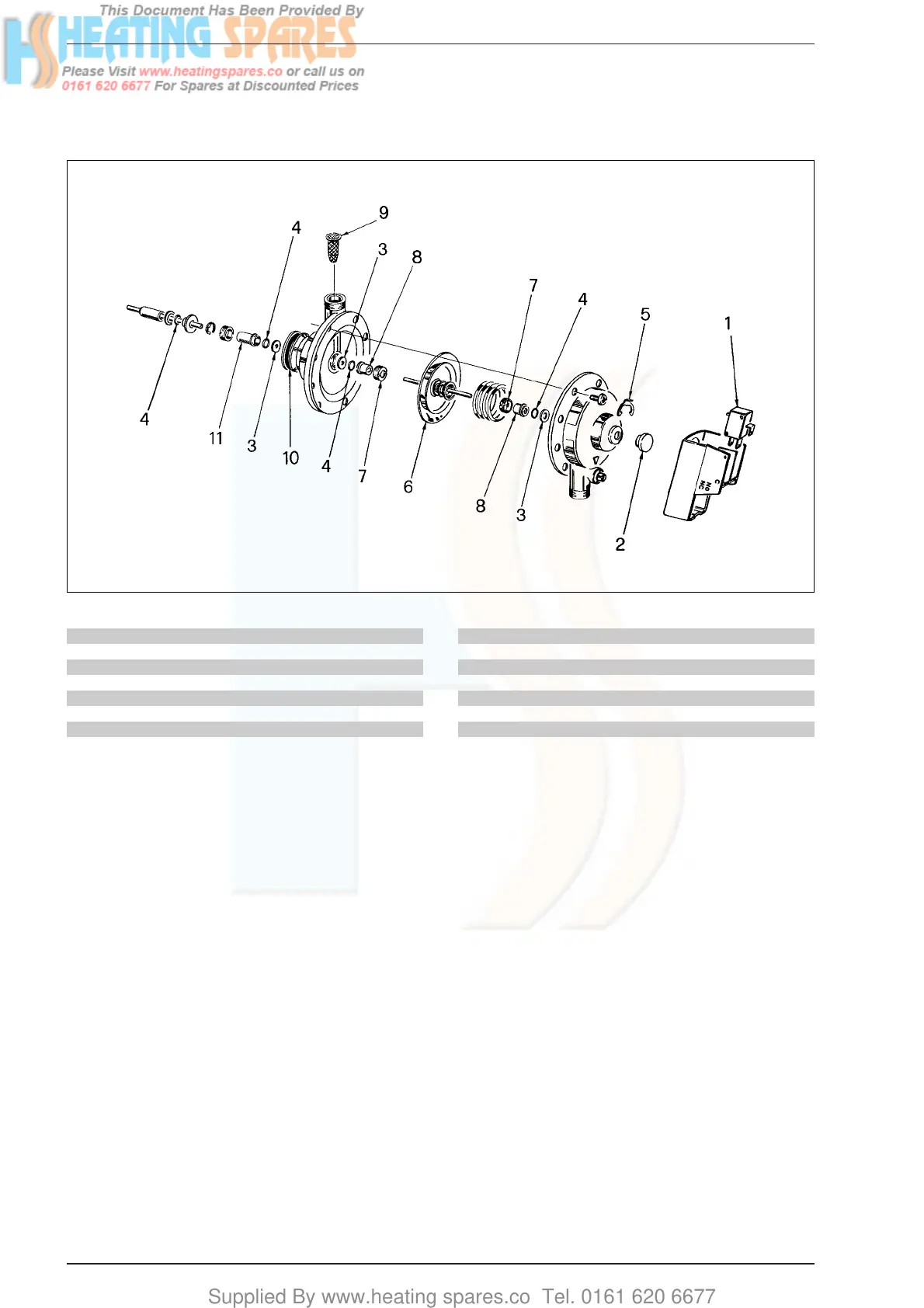

9.2 DIVERTOR VALVE
Fig. 30/a
