SD100KIT
Electronic Drum Kit owner’s manual

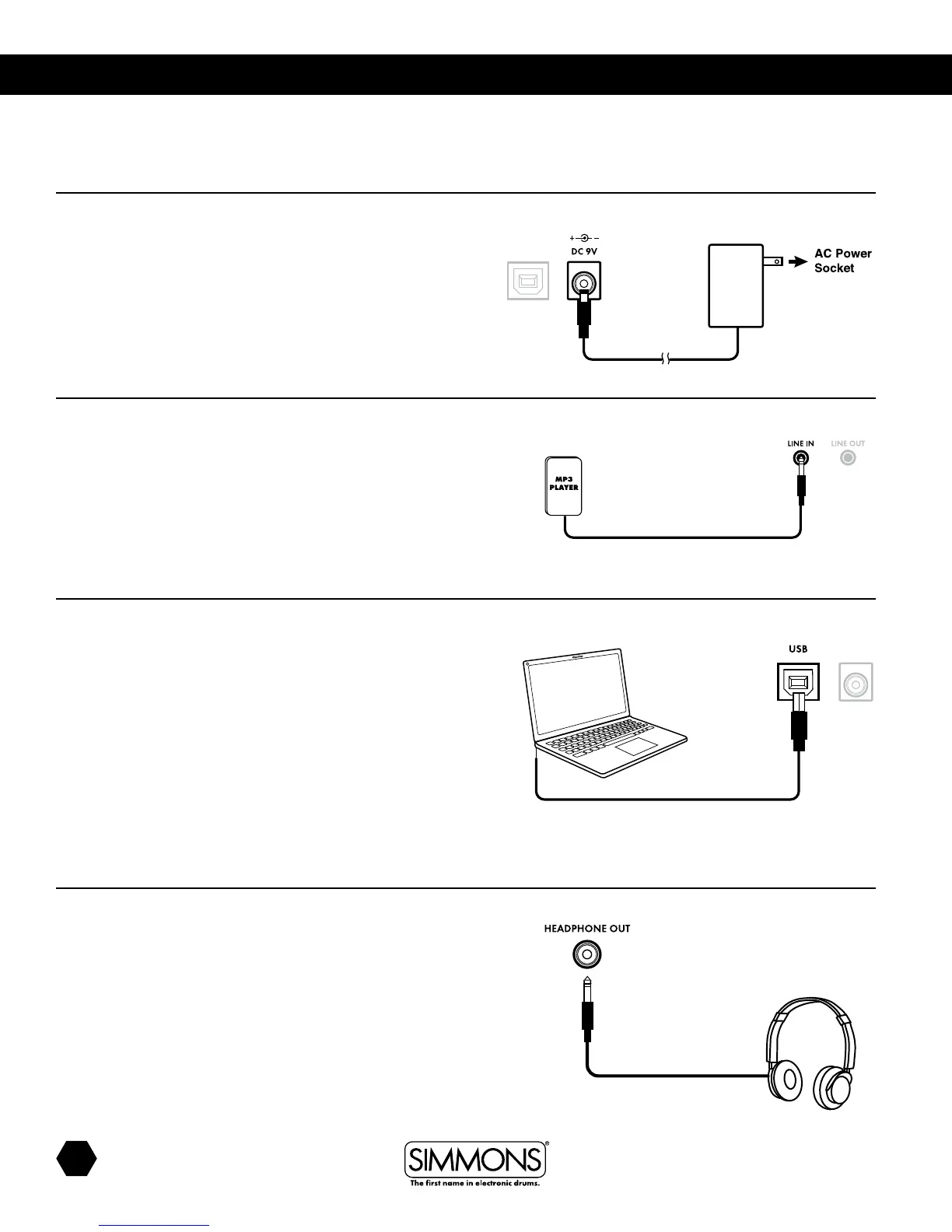

Connecting the Power Supply
Connect the AC power adapter to a wall socket as shown at right.
Connecting CD/MP3 Player
The audio output from a CD/MP3 player connected to the LINE-IN jack
on the rear panel can be mixed with the sound of the drum module. This is
ideal if you want to play along with songs or follow an audio drum tutorial.
The volume of the external signal is adjusted with the MASTER
VOLUME knob.
Connecting USB MIDI
Your drum module is USB class-compliant. This means you can plug it
into a USB class compliant host (for example, a computer running OS
X, Windows XP, Vista or Windows 7) and it should be recognized
immediately. There are no drivers to install; simply plug n’ play.
If you connect the drum module to a computer, you can trigger software
programs or record your performance into a MIDI sequencing application.
Check the operation and setup instructions for the software you intend to
use for more details.
USB cable not included.
Connecting Headphones
Your headphones can be connected to the SD100KIT. The headphone
jack is located on the left side of module base under the Hi-Hat Pad. Use
the MASTER VOLUME knob to adjust the headphone volume.
connections
