Simmons SD 100 User Manual

9
www.SimmonsDrums.net
connections
Connecting the Pads

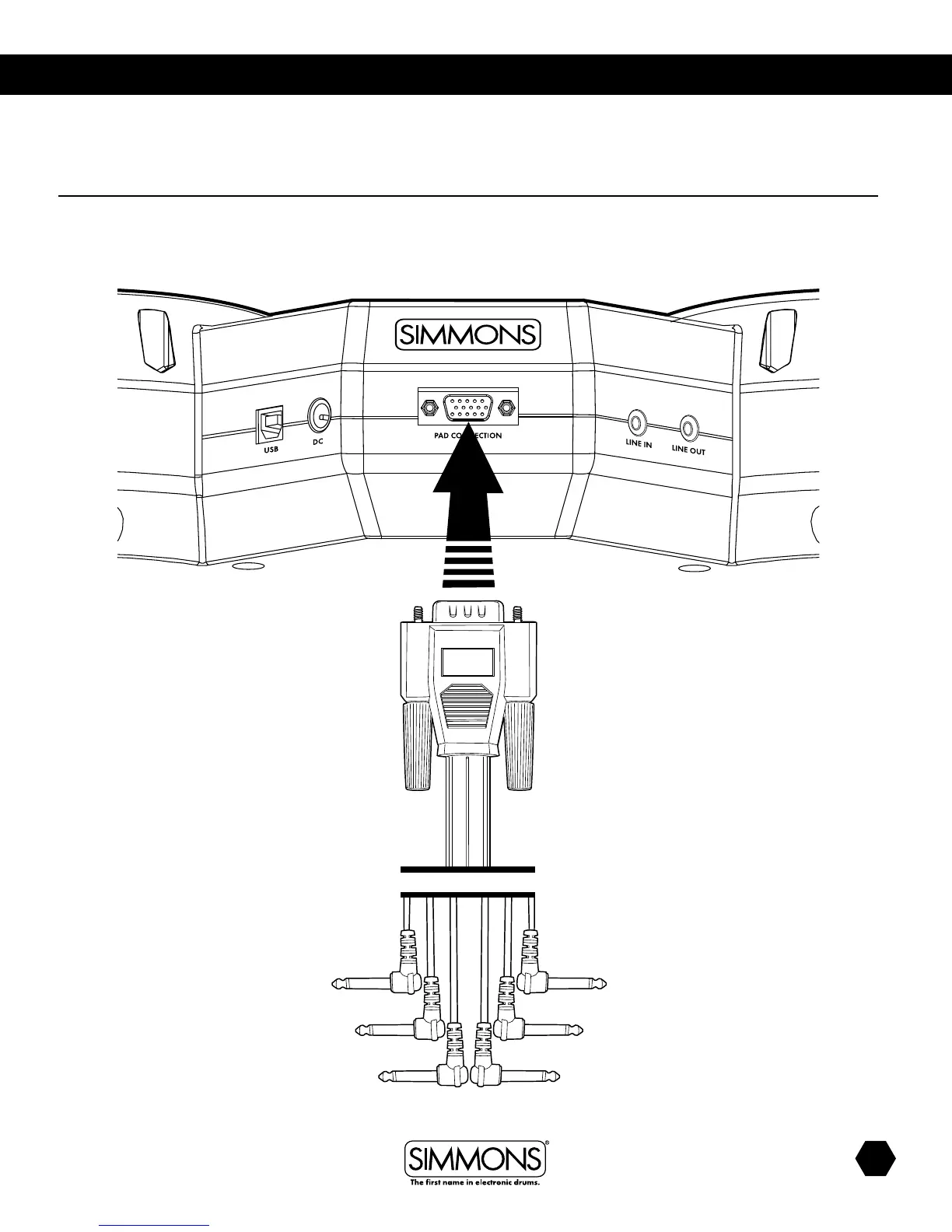

With the drum kit set up correctly, next connect the multi-pin cable into the pad connection port on back panel of module as shown.
Then connect each of the labeled cables into their respective inputs. (Each cable is labeled as the cables can vary in length and type.)

Simmons SD 100 Specifications

General

Brand	Simmons
Model	SD 100
Category	Drums
Language	English
