8
OWNER’S MANUAL
ASSEMBLING YOUR KIT
RACK ASSEMBLY
1. Remove all preassembled rack tubing with clamps from Box 2.
2. Each T-Fitting and tube end-fitting is labeled with a number.
Lay the vertical and horizontal tubes on the floor with the sticker
numbers matching each section.
3. Remove Drum Key from the crossbar.
4. There is a Drum Key Fastener location on the end of each fitting.
Back this fastener out until the pointed end is no longer protruding
inside, but do not remove it. Do this for all the fittings with this
feature on the vertical leg-fittings.

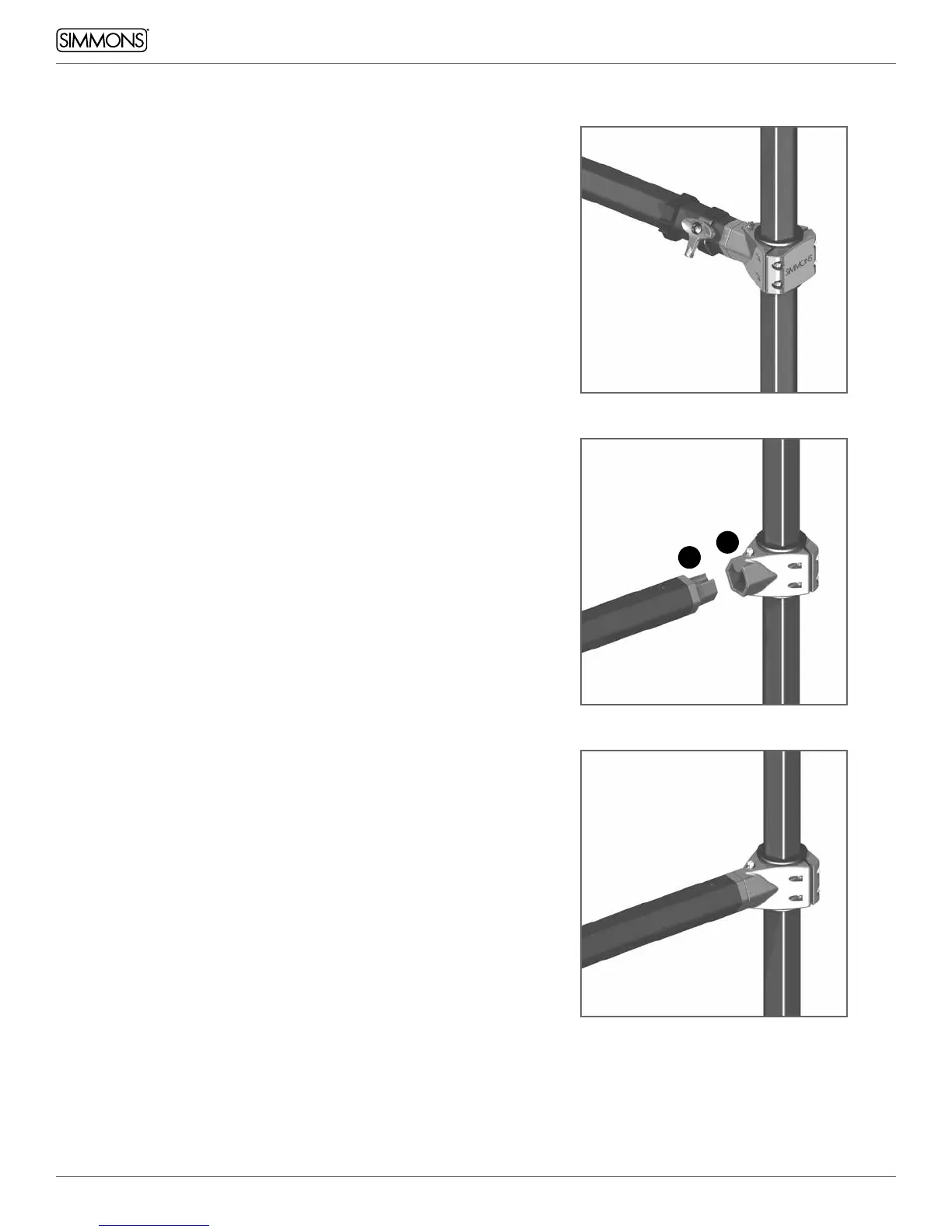

5. Begin with T-fitting/tube end number (1) and insert into the
corresponding left vertical leg. The surfaces of the fitting should
almost touch. Tighten the Drum Key Fastener with the Drum Key
until snug (do not over tighten).
6. Continue assembling the rack working your way around to T-fitting/
tube end number (1) (to the vertical right leg).
7. After you have the rack assembled, double check each Drum Key
Fastener and make sure they are all snug (but do not
over tighten).
1
1
