ASSEMBLING YOUR KIT

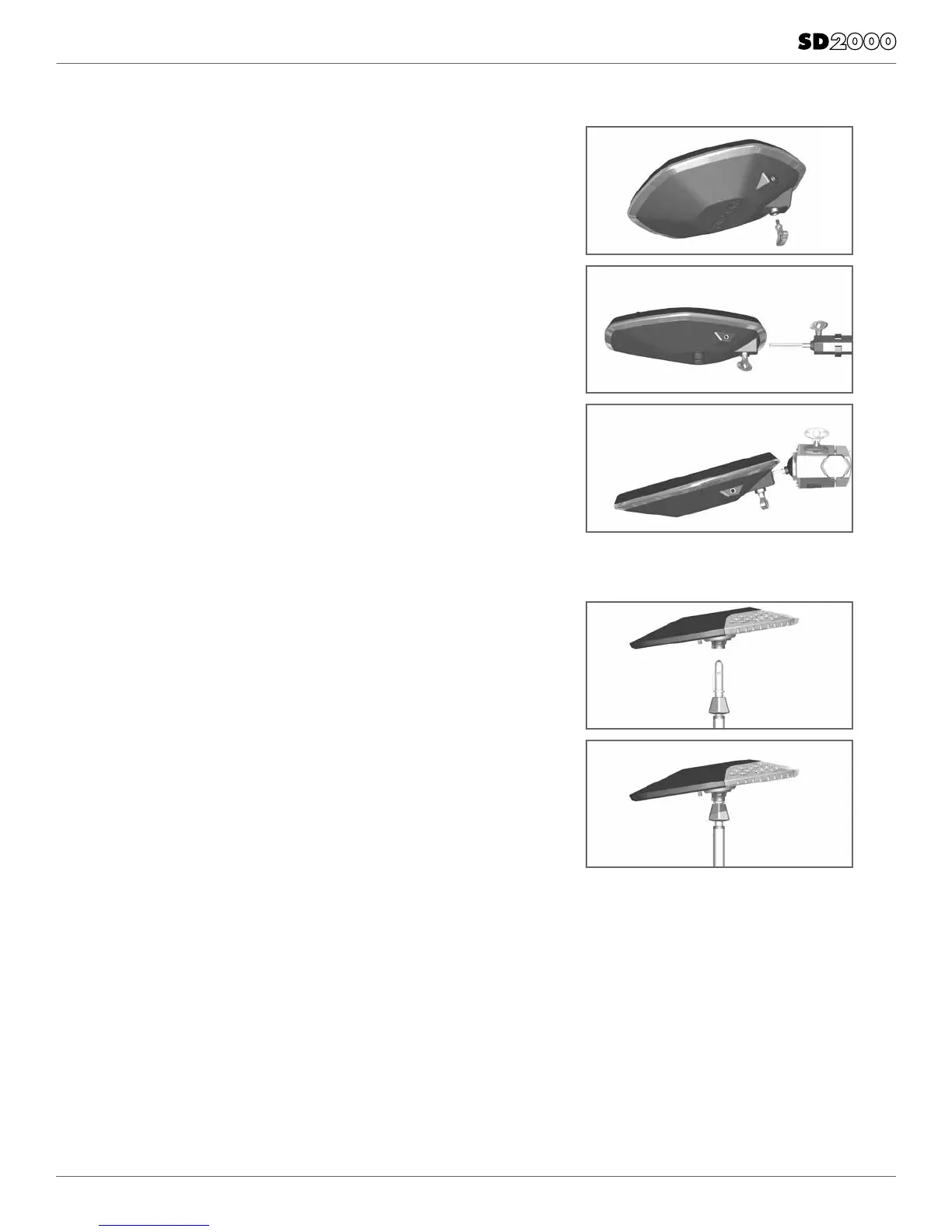

ATTACHING THE DRUMS TO THE RACK
Each drum has a hand knob thumbscrew that comes with it. Place the
hand knob thumbscrew into the hole at the bottom of the shell and
screw it in partially.
Slide the drum onto the mount arm stem and tighten the hand knob
thumbscrew until the drum is securely held on the mount.
Adjust the angle of the drum to where you want it, and use the hand
knob thumbscrew on the top of the mount to tighten the Isoball and
to secure the drum.
ATTACHING THE CYMBALS (CRASH, RIDE, HI-HAT)
Attach cymbal arms to rack and adjust to the desired position and
angle before attaching the cymbals. Hand tighten the knobs for height
and angle adjustments.
The cymbals mount to the top of the arms into the ISO Ball.
Pull down on the lock release on the cymbal arm.
Press the cymbal onto the end of the arm while holding down on
the lock release. Press on until the ISO Ball touches the shoulder
of the mount.
To remove hold down the lock release and pull cymbal off.
