CONNECTIONS
CONNECTING AUDIO EQUIPMENT
Mixers and Ampliers

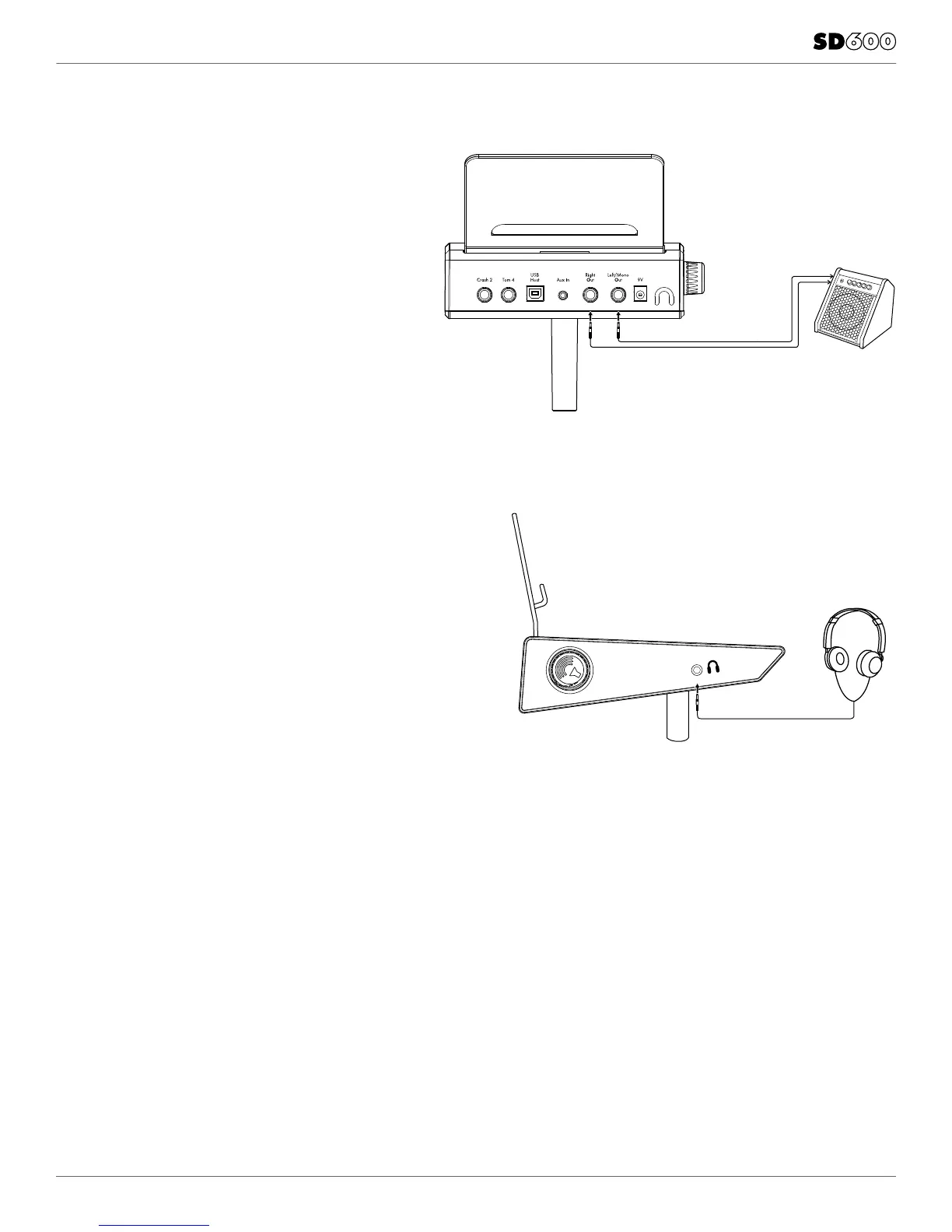

1. To listen to the module, send the outputs to a
mixer or amplier. Connect the Output
L/MONO and R jacks on the rear panel to your
amp. (For monaural playback, use the L/MONO
jack; for stereo playback, connect both L/MONO
and R jacks.)
2. The volume from the module is adjusted with the
VOLUME knob.
3. You can connect a standard pair of headphones the
SD600 module to listen to your electronic drum set
without disturbing others. Connect the headphones to
the 1/8” headphone jack located on the side panel of
the drum module. Adjust the volume to a comfortable
level to avoid damaging your hearing..
