• If you cannot get to the back of your TV and you only watch the programs
through a fixed TV box (cable/satellite box/DVD etc.), you can also use these
instructions to install the system to your TV box.
SETTINGS
ANALOG AUDIO OUT
VARIABLE
FIXED
SOUND / AUDIO
Step 2. TV Audio Out Checking and TV Speaker Setting (use TV remote
control)
If you can not hear sound from your headphone after connecting:
AUDIO OUT
R
L
COMPONENT IN
VIDEO IN
TV REAR
Note:
* If your TV only support single
sound out, the TV’s speakers will
be either automatically muted when you plug something into an audio out port
(Optical/ AUX/RCA, etc.) or they become disabled once you choose "External
Speakers" as your TV's audio output. It depends on TV circuit design.

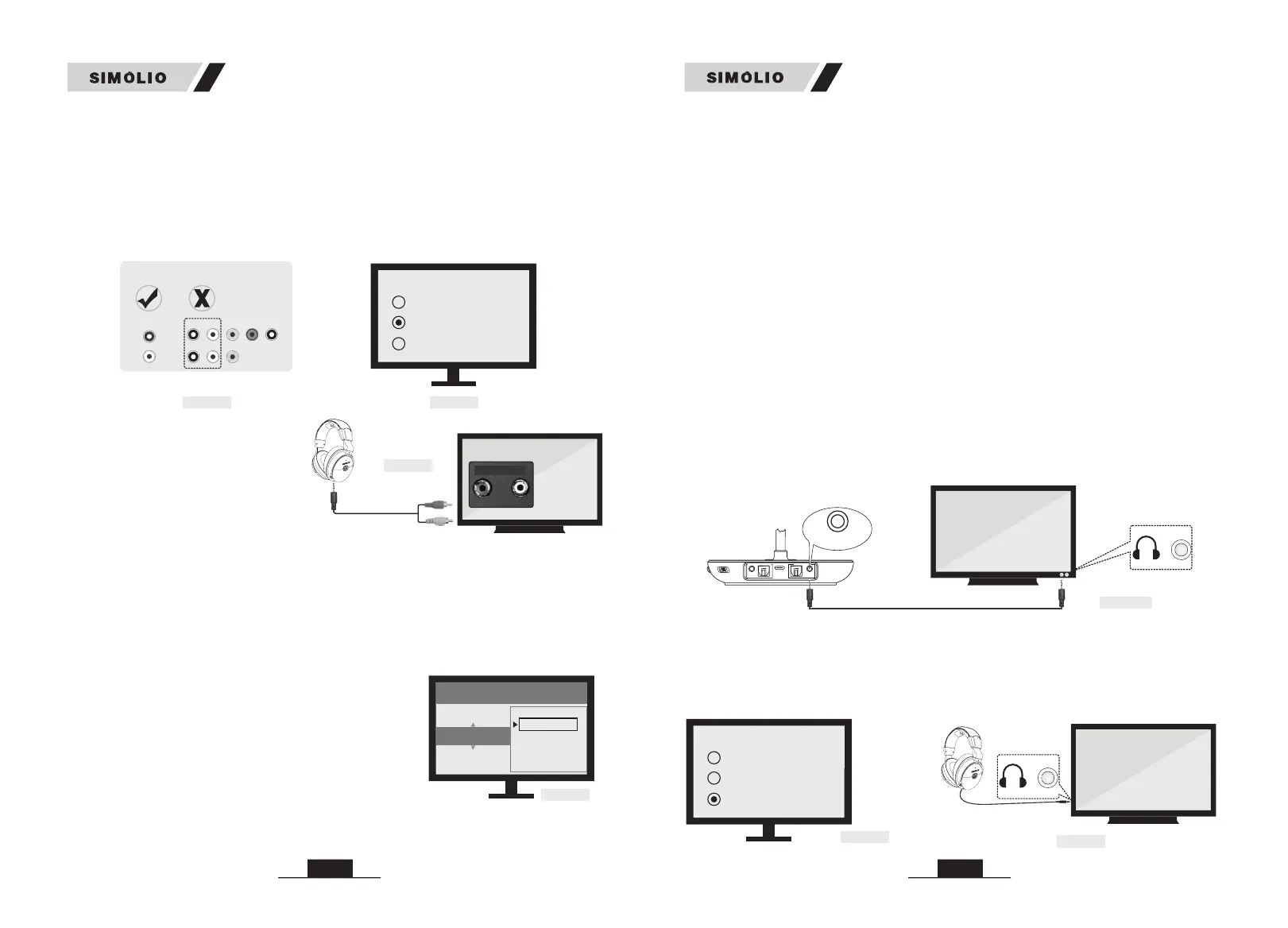

Fig 3-9
Fig 3-10
Fig 3-12
• Ensure use TV Red/White ports labeled “AUDIO OUT” or “OUTPUT”, other
Red/White ports are incorrect (Ref. Fig 3-9).
• Ensure your TV speaker is set to “External Speakers” (Ref. Fig 3-10).
For most TVs, the TV's internal speakers and an external audio device can work
simultaneously. Such as, for some newer LG TVs, when do analog RCA audio
connection, you can set the “Sound Out” to “Internal TV Speaker + Headphones”.
And for some newer Samsung TVs, you can enable this feature by selecting “TV
Speaker” from the TV Sound Output lists.
Speakers
Internal speakers
External speakers
Headset
* Your TV’s analog audio settings may be set to
“Variable” or “Fixed”. If you want to be able to
control your TV volume level separate from your
SIMOLIO SM-829D2 volume level, you will need
to make sure your TV is set to “Fixed”.Contact
your TV manufacturer for assistance
(Ref. Fig 3-12).
AUX/3.5mm Audio Cable
H/
P or
Au
d
i
o O
u
t
Fig 3-13
Plug one end of the 3.5mm audio cable into the “Audio Out” port on the back of
the TV. Plug the other end of the audio cable into the port labeled “AUX IN” on
the back of the transmitter (Ref. Fig 3-13).
• If you connect the 3.5mm audio cable to the 3.5mm Audio Out port which is
usually a Headphone port on your TV, your SIMOLIO SM-829D2 will still
function properly, but the sound to your TV internal speakers will be muted.
The port is usually labeled with an headphone icon.
• Be aware that the base should be placed at least 4 feet away from your Router/
smart WiFi TV/TV sticks/WiFi TV box to avoid interference.
Step 1. Hook up SIMOLIO to the 3.5mm Audio Out Port of the TV/other
Audio Device
Step 2. TV Audio Out / TV Speaker Setting (use TV remote control)
If you can not hear sound from your head after connecting:phone
• Use the RCA/3.5mm cable to plug the headphone into the headphone/3.5mm
audio output of the TV to test if you can hear the TV sound (Ref. Fig 3-15).
• Ensure your TV speaker is set to “Headset” (Ref. Fig 3-14).
Fig 3-14
Fig 3-15
H
/P
o
r A
u
d
i
o O
u
t
Speakers
Internal speakers
External speakers
Headset
• Use the RCA cable to plug the
headphone into the RCA output
of the TV to test if you can hear
the TV sound (Ref. Fig 3-11).
R AUDIO OUT L
Fig 3-11
R
RCA Audio Cable
*Setting menu may be different depending on different TV brands and models.
3.3 3.5mm/AUX Analog Connection
This part is an alternative to 3.1 and 3.2 on page 8-10. This part will explain how
to connect the SIMOLIO SM-829D2 transmitter to your television, satellite, or
cable box using a 3.5mm/AUX analog audio cable.
R
