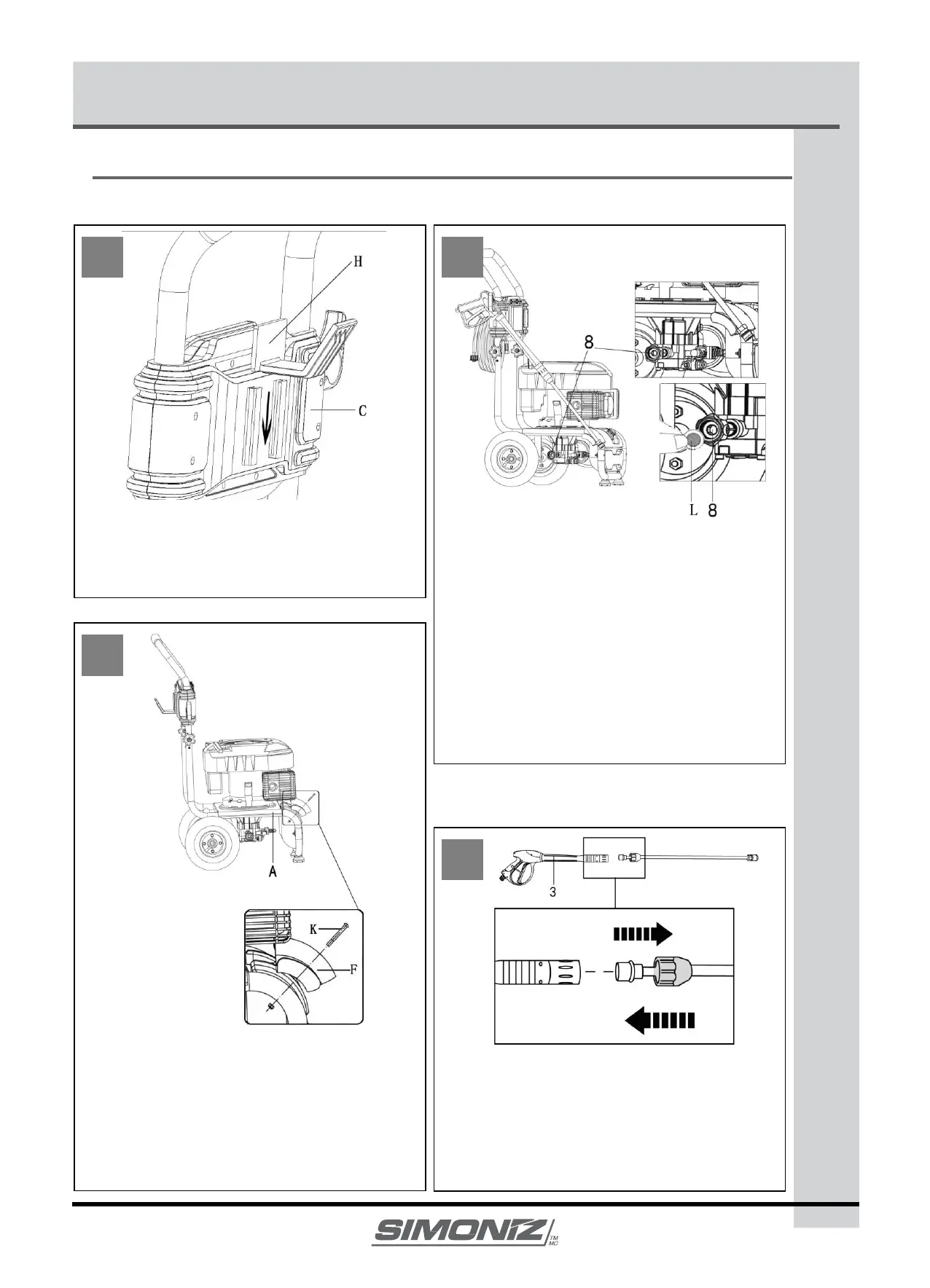

Insert the lower gun holder (F) to the position
on frame as per instruction and then insert the
bolt (K),screw the nut on the opposite position
and secure by cross screwdriver (O) and
wrench(Q)..
Insert hose hook (H) to the groove of handle
assembly(C) until the end as per instruction.
Insert the water inlet filter (L) into the pump
fresh water inlet (8). Then attach a garden hose
or other means of water supply (not provided)
to the pump inlet (8).
The water flow rate must not fall below 18 litres
per minute LPM (4 gallons per minute GPM), or
the pump might be damaged.
Note:
please make sure all the quick connec-
tors are connected in the right direction.
Assemble the spray gun with the metal wand
(3). Pull back the rubber piece to expose the
threaded fitting. Then, screw the two pieces
together and move the rubber piece back.
