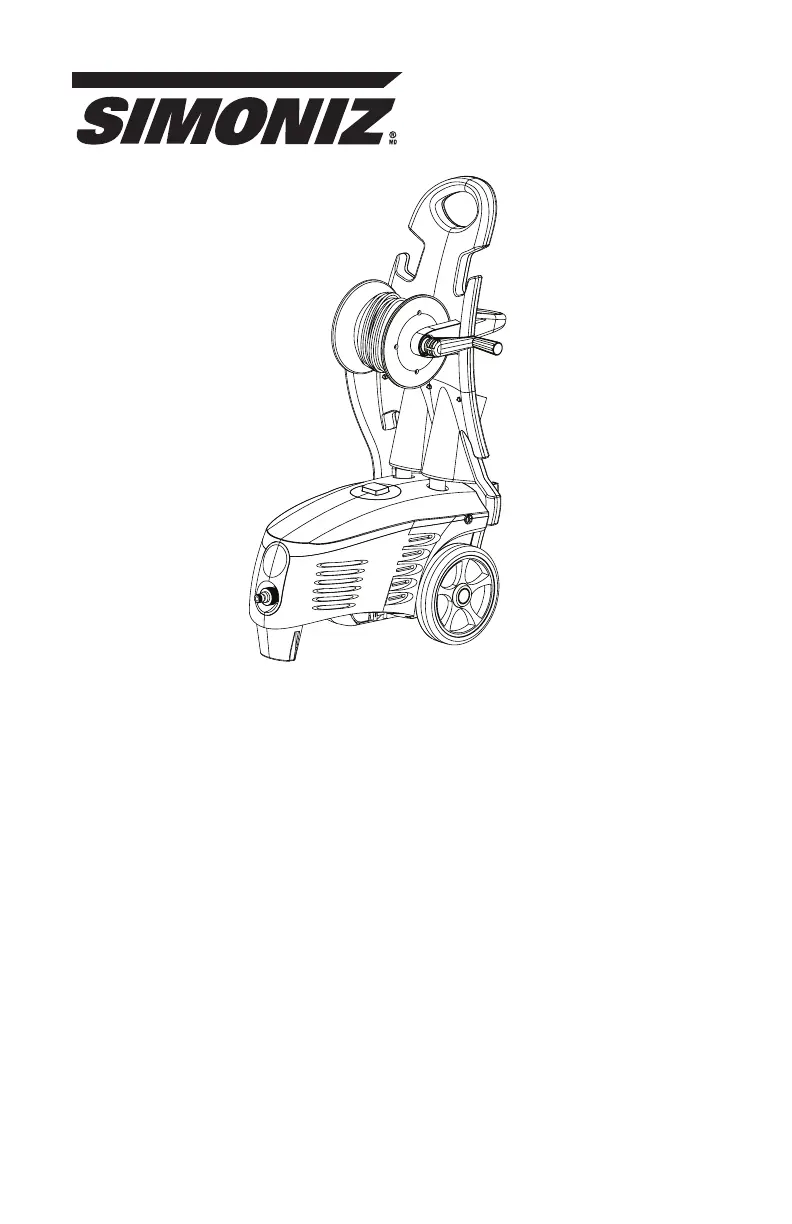

Electric Pressure Washer
S1800
039-8561-6
OWNER’S MANUAL
Sk u 039-8561-6 v e 02-m a n u a l e -v0
If you have any questions or comments, visit our website at www.simoniz.ca or call
our toll free hotline 1-866-4SIMONIZ (1-866-474-6664).
PLEASE KEEP THE ORIGINAL BOX, PACKAGING AND RECEIPT. BEFORE
OPERATING THIS UNIT, PLEASE READ THIS MANUAL THOROUGHLY AND RETAIN
IT FOR FUTURE REFERENCE. IF YOU MUST STORE YOUR PRESSURE WASHER
IN A PLACE WHERE THE TEMPERATURE IS BELOW 5ºC, YOU MUST APPLY
WINTERIZING PROCEDURE TO PROTECT IT. FAILURE TO WINTERIZE THE UNIT MAY
PERMANENTLY DAMAGE PUMP AND VOID THE WARRANTY.

Other manuals for Simoniz S1800

Questions and Answers

  • M
    Michael MillsAug 14, 2025
    Why does my Simoniz S1800 detergent not work?
    • B
      Brandon MooreAug 14, 2025
      Several factors could prevent the detergent from working correctly. The detergent container might be empty, so you should add more detergent. The detergent bottle or suction tube may not be properly connected; ensure these connections are secure. The detergent might be too thick and require dilution. A clogged filter on the detergent suction tube can also be the cause; try running warm water through it to remove any build-up. The detergent suction tube could be damaged or clogged, requiring you to remove the obstruction or replace the tube. Also, ensure the nozzle is in the low-pressure position. Finally, the discharge nozzle could be obstructed; in this case, blow out or remove debris with a fine needle.
  • T
    thomaskarenAug 17, 2025
    What to do if my Simoniz S1800 motor will not start?
    • L
      Lisa JacobsonAug 17, 2025
      If the motor won't start, first ensure the On/Off switch is in the “ON” ( | ) position and the power cord is properly plugged in. Check the extension cord; if it’s too long, not the proper gauge, or damaged, replace it with a 25’ (7.6 m) or a 50’ (15 m) 14 AWG cord. Try a different electrical outlet to rule out inadequate power supply. Also, make sure that the pressure washer circuit breaker is not tripped. If it is, allow it to cool, and then restart the unit.
  • J
    Juan SmithAug 21, 2025
    Why does the Simoniz Pressure Washer output pressure vary high and low?
    • P
      porterpatrickAug 21, 2025
      Inconsistent output pressure can result from several issues. The discharge nozzle might be obstructed; clear it by blowing it out or removing debris with a fine needle. The gun, hose, or power nozzle might be calcified; run distilled vinegar through the detergent tank to address this. Insufficient inlet water supply could be the cause; ensure the water is fully on and check the garden hose for kinks, leaks, or blockages. The pump might be sucking air; check that hoses and fittings are airtight and purge the pump by squeezing the trigger gun until a steady flow of water emerges through the nozzle. Lastly, the water inlet filter might be clogged; remove the filter and rinse it with warm water.
  • W
    William JimenezAug 25, 2025
    Why is my Simoniz S1800 Pressure Washer pump noisy?
    • A
      Annette SimsAug 25, 2025
      A noisy pump may be due to the pump sucking air. Check that hoses and fittings are airtight, then turn off the machine and purge the pump by squeezing the trigger gun until a steady flow of water emerges through the nozzle. Alternatively, the water filter might be clogged. Remove the water filter and rinse it in warm water.
  • V
    Veronica SmithAug 27, 2025
    What to do if Simoniz Pressure Washer unit does not reach high pressure?
    • E
      Elizabeth PowellAug 28, 2025
      If the unit isn't reaching high pressure, it might be due to several reasons. The diameter of the garden hose could be too small; replace it with a 1” (25 mm) or 5/8” (16 mm) garden hose. The water supply might be restricted; check the garden hose for kinks, leaks, and blockages. Make sure there's enough water supply by fully opening the water source. A clogged water inlet filter can also cause this issue; remove the filter and rinse it in warm water. Ensure the power nozzle is in the high-pressure position. Finally, the pump might be sucking air; check that hoses and fittings are airtight, and purge the pump by squeezing the trigger gun until a steady flow of water emerges through the nozzle.
  • M
    Martin MartinezAug 31, 2025
    What to do if my Simoniz Pressure Washer motor buzzes but fails to run?
    • W
      Willie RosalesAug 31, 2025
      If the motor buzzes but doesn't run, the supply voltage might be below the minimum requirement. Verify that only the pressure washer is running on the circuit. The system could have residual pressure; turn the unit “OFF”, squeeze the trigger on the spray wand to release pressure, then turn the unit “ON.” Voltage loss due to an extension cord could also be the problem; unplug any extension cords and plug the unit directly into the outlet. Also, disconnect the water supply and power ON for 2 to 3 seconds, repeat a couple of times or until the motor starts to solve residual friction among components.
  • C
    Christopher MorenoSep 3, 2025
    Why is there a leak at the garden hose connection on my Simoniz Pressure Washer?
    • C
      channicoleSep 3, 2025
      A leak at the garden hose connection could be due to loose fittings; try tightening them. Alternatively, there might be a missing or worn rubber washer; insert a new washer to resolve the issue.
  • B
    Barry TorresSep 6, 2025
    What to do if there's no water coming from my Simoniz S1800?
    • Y
      ydavisSep 6, 2025
      If there's no water, first check if the quick connect assembly is attached in reverse. Verify that the inlet adapter is attached to the machine’s water inlet and the quick connect coupler is attached to the garden hose. Ensure the water supply is turned ON. Also, check for any kinks in the garden hose and remove them.
  • A
    allisonshermanSep 10, 2025
    Why is water leaking from the pump of my Simoniz S1800?
    • S
      Steven SmithSep 10, 2025
      If water is leaking from the pump, ensure that all fittings are tight. Note that up to 10 drops per minute is permissible.

Summary

Warranty

Motor Warranty Details

Details the two-year warranty coverage for the motor.

Important Safety Precautions

General Safety Guidelines

Essential precautions for safe operation, including electrical safety and environmental awareness.

Specific Hazard & Injury Warnings

Addresses injection hazards, explosion risks, electric shock, and gun kickback.

Safety Features & Electrical Information

Electrical Safety and Cord Usage

Covers stop device, power switch, grounding, and safe extension cord usage.

Operating Procedures

Detergent Application Basics

Explains how and when to apply detergent using the unit.

Shutting Down and Taking Breaks

Shutdown and Cleaning Procedure

Procedures for safely shutting down, cleaning the detergent system, and unplugging.

Winterizing and Storage

Winterizing Procedures

Detailed steps for optimum and quick winterizing to protect the unit from freezing.

Troubleshooting Common Issues

Motor and Pressure Troubleshooting

Solutions for motor not starting, low pressure, and fluctuating output pressure.

Advanced Troubleshooting

Simoniz S1800 Specifications

General IconGeneral
BrandSimoniz
ModelS1800
CategoryPressure Washer
