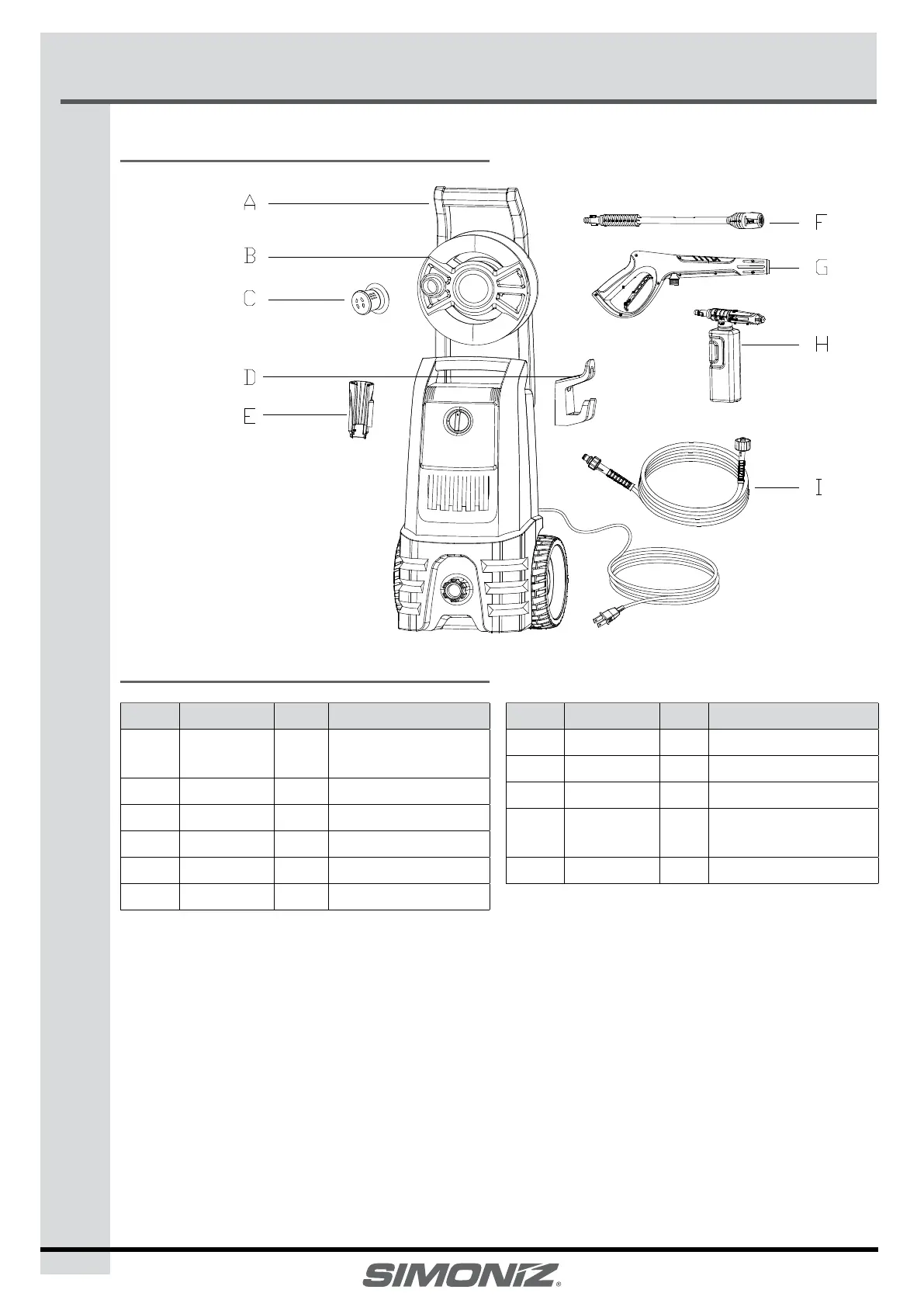

3. exploded VIew
Exploded View / Parts List
4. parts lIst
Item # Part Name Qty. Part #
A
Foldable
handle
1
VE08-000-0030
B Hose reel kit 1
VE08-040-2000
C Reel knob 1
VE08-040-0001
D Bottle bracket 1
VE08-030-0001
E Gun holster 1
VE06-030-0002
F 3-in-1 wand 1
VE07-020-0090
Item # Part Name Qty. Part #
G Gun assembly 1
XE03-020-0090
H Foam blaster 1
XE20-060-0000
*I Pressure hose 1
VE15-000-0003
n/a
Cleaning
needle
1
Pre-attached on the manual
n/a Water lter 1
Pre-attached on the machine
*Pressure hose and water lter come
pre-assembled on the machine
