Simplex 2004 Series Installation Guide

6.8.1.2 Field wiring city circuit cards
For successful wiring, ensure you adhere to the following guidelines:
• Terminate all wiring at TB1 on the city card.
• All wiring is supervised, but not power-limited.
• Conductors test free of all grounds before you connect the city card to the system.
• Wiring for reverse polarity is between 20 AWG minimum and 12 AWG maximum.
• Wiring for local energy is between 18 AWG minimum and 12 AWG maximum.
• Leave the 2.2 k, 1/2 W resistor on an unused terminal.
Note:
1. The city card is intended for connection to a polarity reversal circuit of a remote station receiving unit that has compatible ratings:
19 VDC to 32 VDC, 2 V peak to peak ripple maximum.
2. The city card is intended for connection to a 14.5 ohm trip coil.
3. For Masterbox supervision, connect Masterbox relay output back to panel IDC circuit configured for SUPV function type.

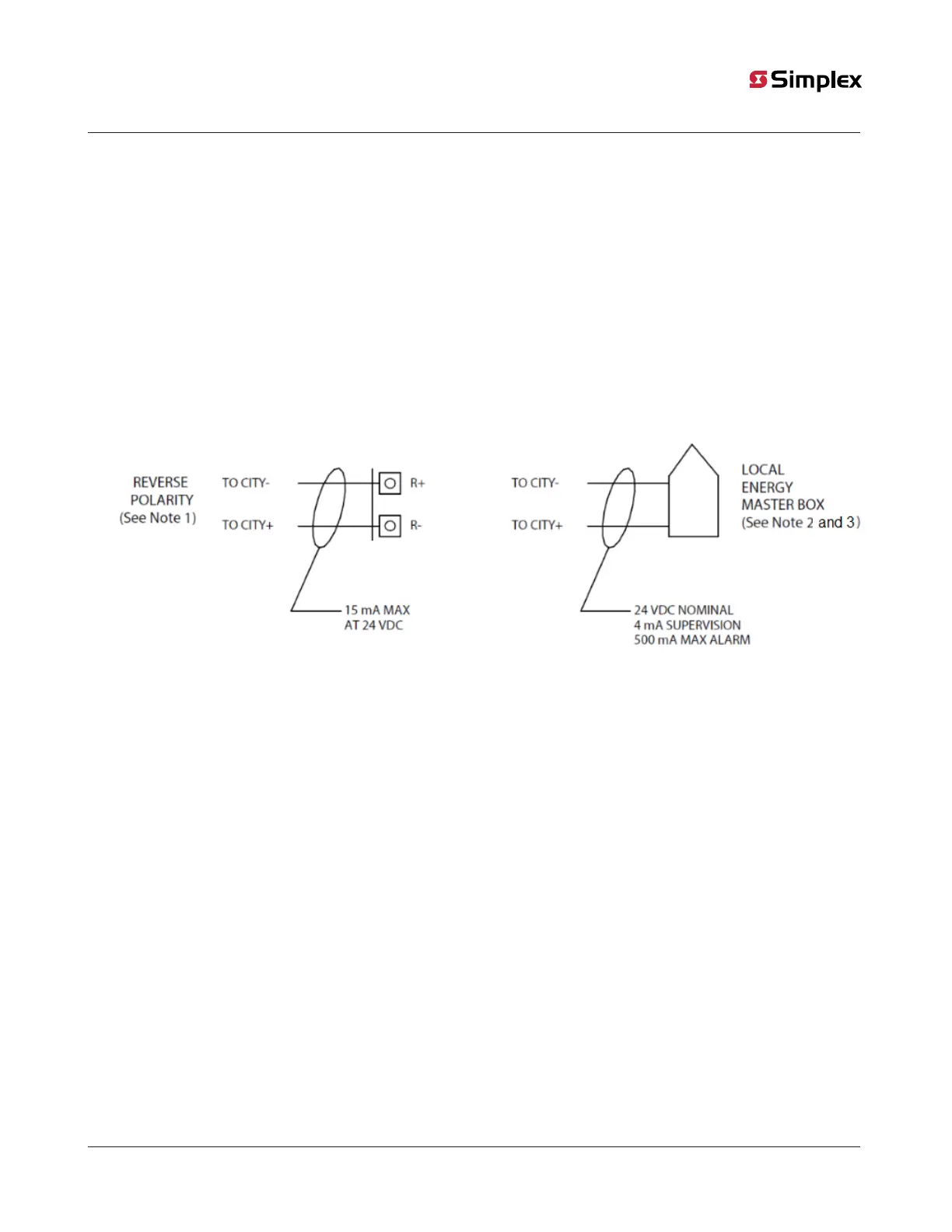

Figure 28: City card wiring
page 34 579-1402 Rev B
2004 Foundation Series Fire Alarm Control Unit Installation Guide
