Page 11 579-1102 Rev H
4007ES and 4007ES Hybrid Fire Alarm Systems Installation Manual
4 NAC power supply
A conventional reverse polarity NAC power supply is used in a 4007ES hybrid panel. It provides 6A and can support the following:
• Non-addressable notification devices.
• Addressable initiating devices.
See Figure 10: NAC power supply on page 11 and Table on page 11 for the main components of the NAC power supply.

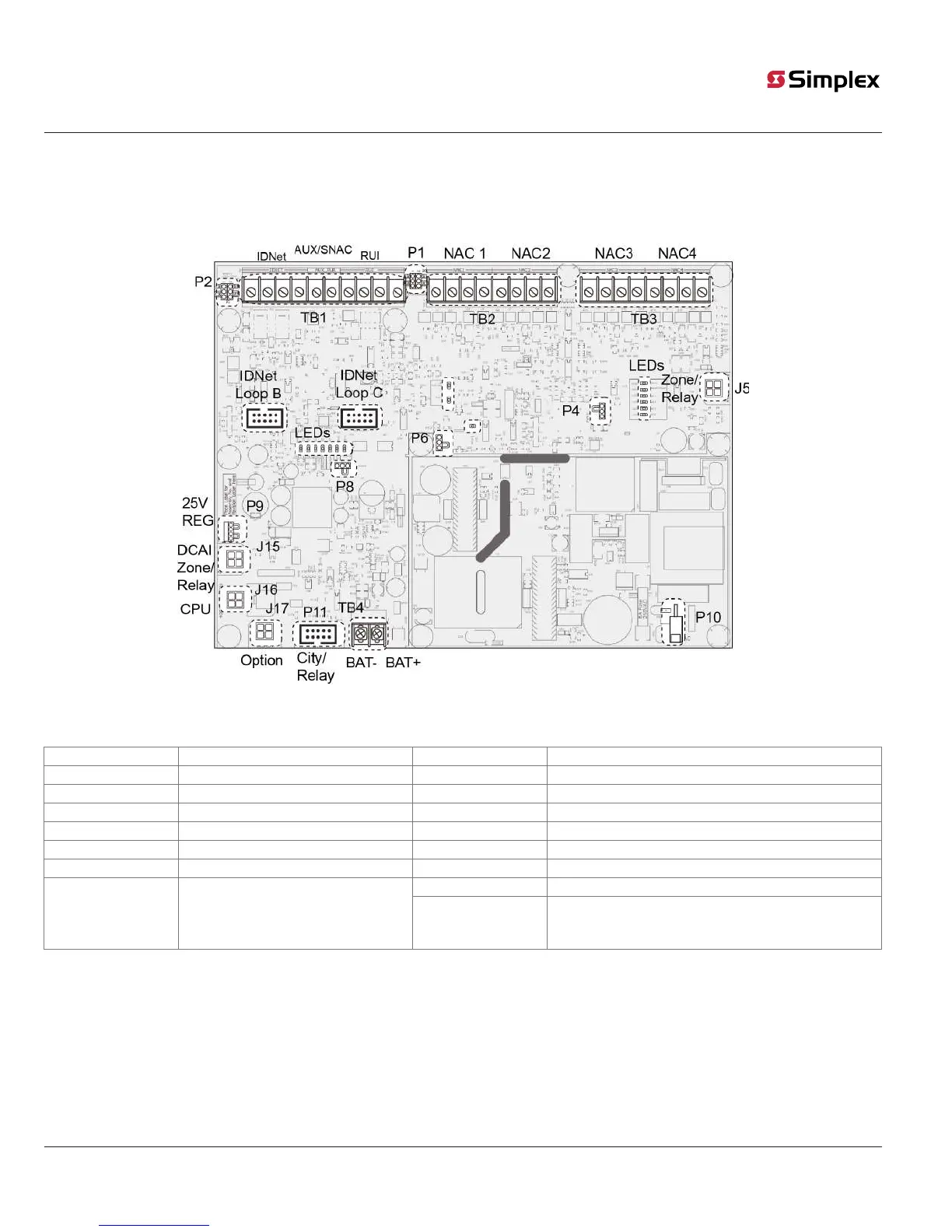

Fig 10: NAC power supply
Table 4: Main components information
P1 RUI Class A/B jumpers P2 IDNet Class A/B jumper
TB4 Battery connection TB2 NAC 1 and NAC 2
P10 AC Power Connection TB3 NAC 3 and NAC 4
J5 and J15 Zone / Relay J7 IDNet Loop B
J16 CPU Connection J8 IDNet Loop C
J17 Option Connection P4 NAC Power Supply Card On-line
P11 City/Relay Connection P6 Battery Depleted Jumper
P8 1-2 (default) / IDNet card on line
TB1
IDNet Loop 1, Aux Power, RUI
Connection
P9
25V Regulator Jumpers 1-2, 3-4
default. Power is fed to the zone/ relay card. No jumpers.
Using 4007-9802, 25V Regulator Module.
