Page 6 579-1102 Rev H

4007ES and 4007ES Hybrid Fire Alarm Systems Installation Manual

3 Installation

Introduction

This chapter describes how to install the 4007ES panel. It can be semi-flush or surface mount.

3.1 Mounting the 4007ES panels

• Due to the danger of metal fragments falling into electronics when drilling the holes for the conduits, remove the electronics in the system:

- To remove the electronics, unscrew the ten screws. Remove the power supply and store it in a safe, clean, and dry location until the panel

installation is completed, see Figure 2: Screws location on page 6.

- If installing a 4007ES hybrid panel, also remove the Zone/Relay card (three screws).

• Use a suitable punch where a conduit entrance is required. The knockouts are not provided. Locate and create on-site as required during installation.

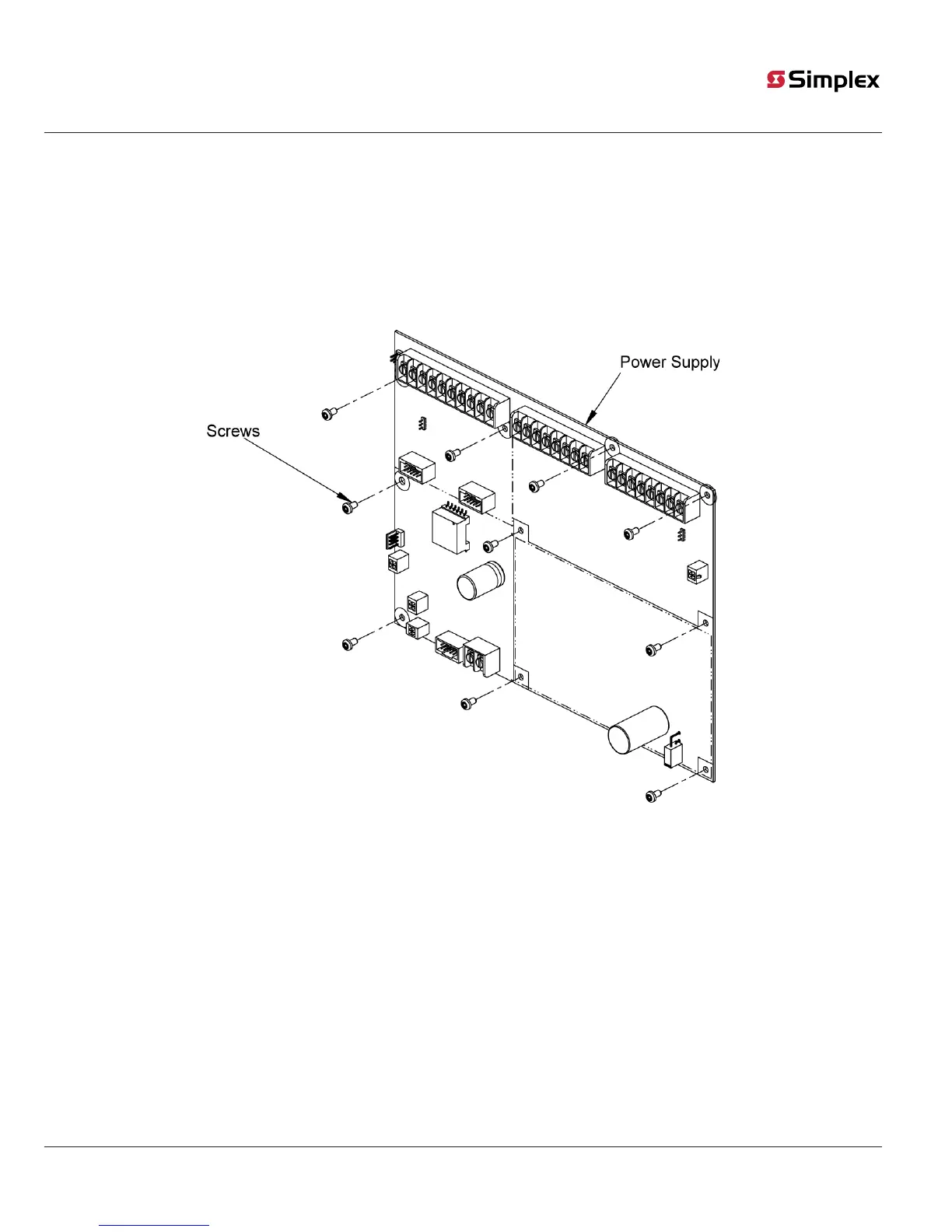

Fig 2: Screws location

• For surface or semi-flush mounting to a wooden wall structure, the panel must be attached with four 1 1/2 in. (38 mm) long lag bolts and four 1/2 in.

(13 mm) diameter washers, supplied by others.

• For surface mounting, secure the box to the wall using the tear-drop mounting holes on the back surface. For semi-flush mounting, secure the box

along the sides to the wall studs. Note that the front surface of the back box must protrude at least 1-1/2 in. (38mm) from the wall surface for semi-

flush installation. A trim kit is supplied for semi-flush mounting, see the Trim kit application on page 7 section for more information.

• To install the panel, see Figure 3: Back Box Installation dimensions and Semi-Flush Mounting (Right) on page 7 for the dimensions and use the

holes in the back box to secure it to the wall.
