Simplex NEPTUNE - Load Dump Installation; Load Dump Jumper

Installaon — 17
If the Load Dump fea-
ture is desired, remove the
factory-installed jump-
er at TB-R 1–2 and con-
nect customer-supplied
Load Dump contacts to
TB-R 1–2 (See Figure 9
Load Dump Jumper). To
dump the load, open the
customer-supplied contact.
To enable load, close the cus-
tomer-supplied contact.
load dump
inStallation

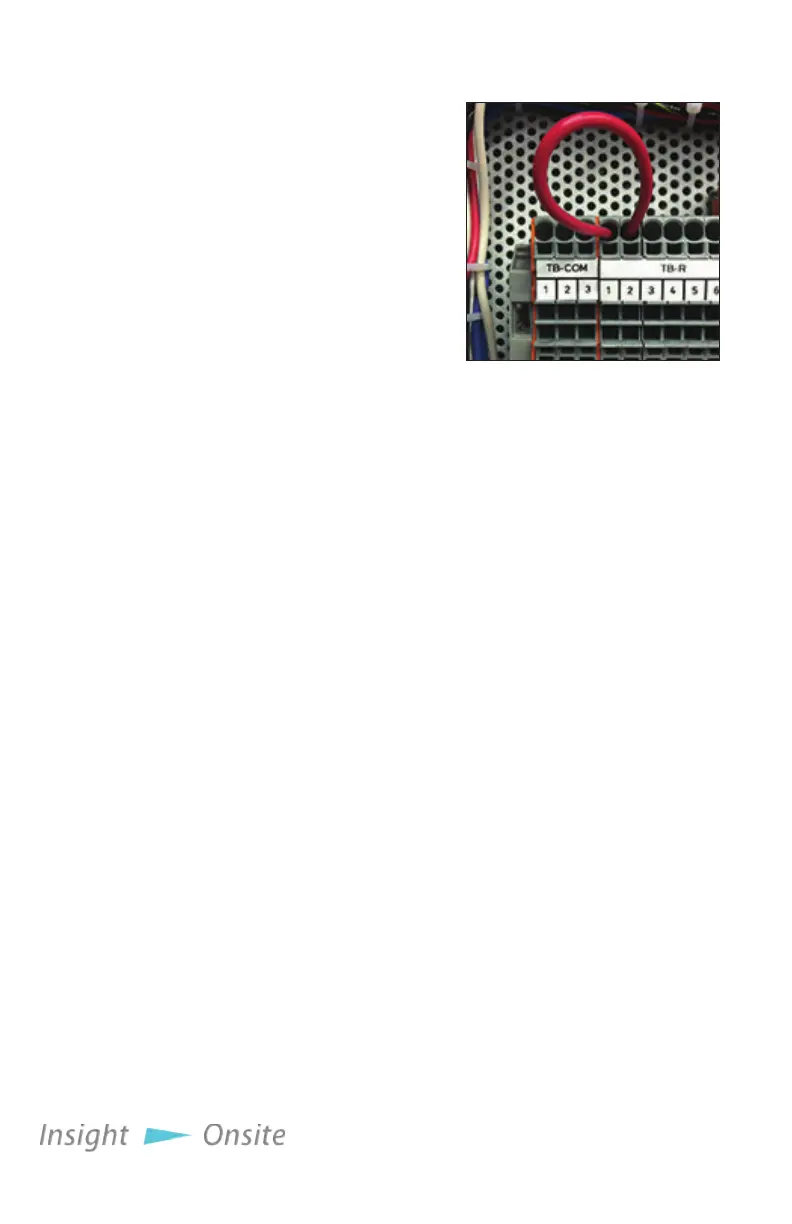

Figure 9
Load Dump Jumper
