6 - 55
6 General Repair
6C Foot Controls Repair

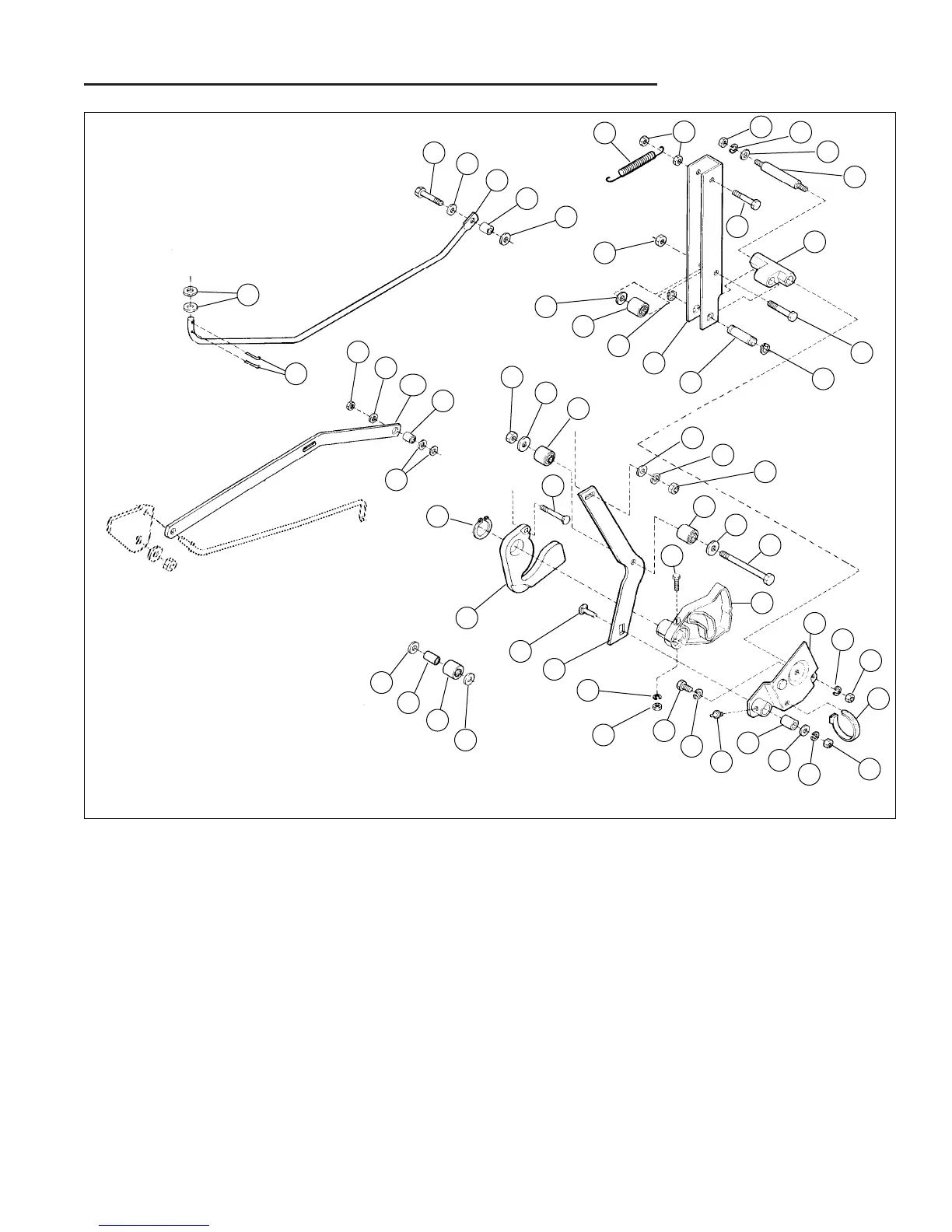

Figure C–27. Landlord Hydro Foot Controls - Cam/Lever Parts Late Models)
A. Extension Spring
B. 1/4-20 Center Lock Hex Nut
C. 1/4-20 Hex Nut
D. 1/4 Lockwasher
E. 1/4 Flat Washer
F. Adj. Lever Pivot
G. 1/4-20 x 1/2 Hex Capscrew
H. Neutral Adj. Lever
I. 3/8 Ext. Retaining Ring
J. Pivot Pin
K. Neutral Roller Arm
L. Roller Cam
M. Washer
N. Flat Washer
O. 5/16 Lockwasher
P. 5/16-18 Hex Nut
Q. Flat Washer
R. 1/4-20 x 2-1/4 Hex Capscrew
S. 6 mm-1.0 x 55 mm Capscrew
T. Directional Control Cam
U. Control Support Bracket
V. Spacer
W. 1/4 Lube Fitting
X. 8 mm-1.25 x 19 mm Capscrew
Y. 6 mm-1.0 Hex Nut
Z. Speed Control Lever
AA. 1/4-20 x 2 Carriage Bolt
AB. Neutral Return Cam
AC. Retaining Ring
AD. Spacer
AE. 5/16-18 x 1-3/4 Carriage Bolt
AF. Return-to-neutral Rod
AG. Cotter Pin
AH. 5/16-18 ESNA Locknut
AI. Plain Washer
AJ. 3/8-16 x 1-1/4 Hex Capscrew
AK. Flat Washer
AL. Shift Rod
AM.Nylon Washer
AN. Control Cam Spacer
AO. Cam Roller
AP. Self-locking Tie
AQ. 1/4-20 ESNA Locknut
B
C
D
E
A
B
G
H
G
I
M
L
I
J
N
L
Q
N
O
P
L
Q
R
S
U
D
C
E
C
D
V
W
D
X
Y
D
Z
N
AF
N
F
K
AJ
AK
AL
AD
AQ
AE
AC
AH
AD
AB
AA
AP
T
AM
AN
AO
AM
AI
AG
Transmission Control
Linkage -
Tuff Torq K215A,
Later Models
