6 - 56
6 General Repair
6C Foot Controls Repair

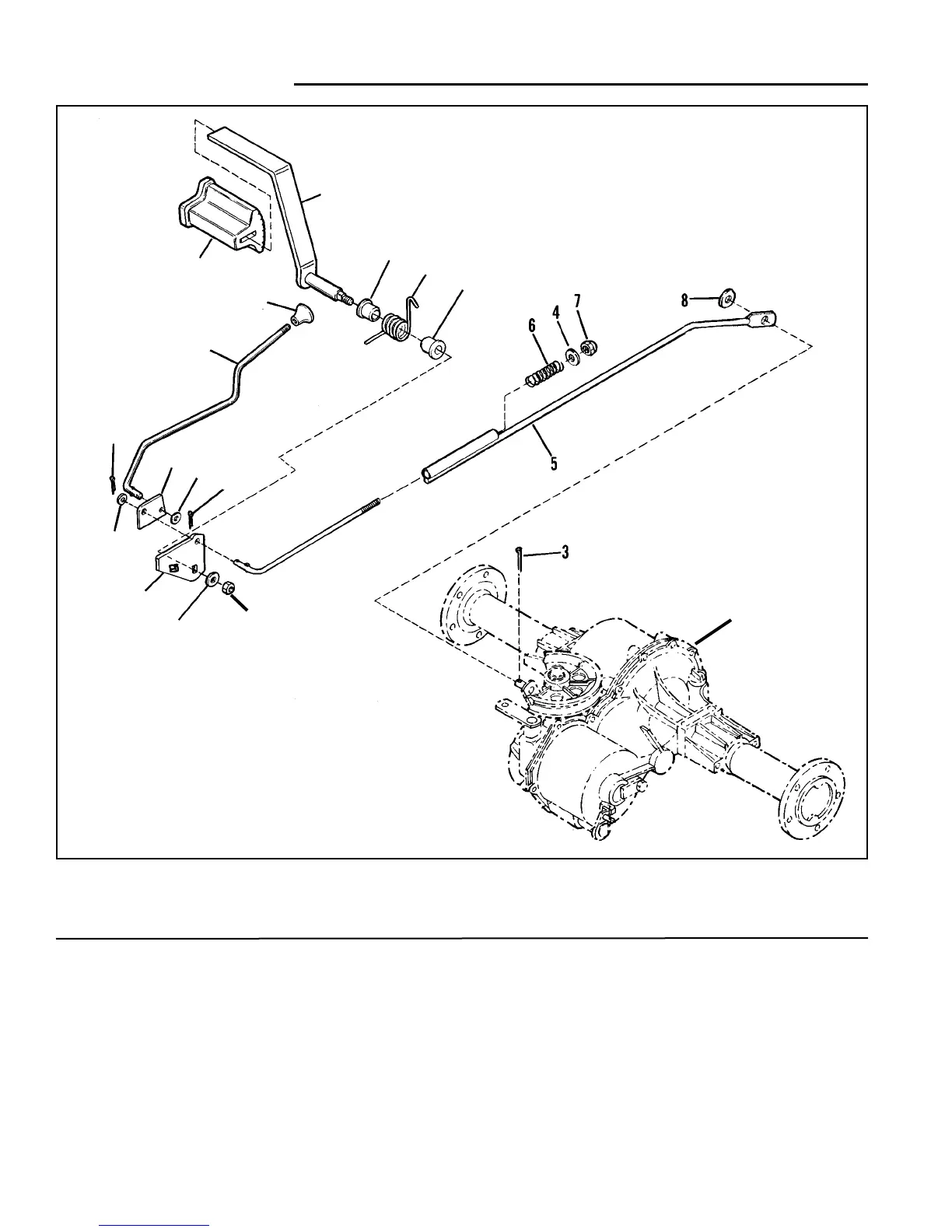

Figure C–28. Brake Linkage
1 Foot Pedal Pad
2 Brake Pedal Assembly
3 Cotter Pin
4 Flat Washer
5 Rear Brake Rod
6 Brake Compression Spring
7 Nyloc Nut
8 Plain Washer
9 Bushing
10 Torsion Spring
11 Knob
12 Parking Brake Rod
13 Parking Brake Cam
14 Flat Washer
15 Foot Pedal Arm
16 Flat Washer
17 Lock Nut
18 Plain Washer
19 Transmission Assembly
REF.
NO. DESCRIPTION
REF.
NO. DESCRIPTION
1
2
9
9
10
11
12
3
3
14
13
18
15
16
17
19
Brake Control Linkage -
Tuff Torq K210A Models
