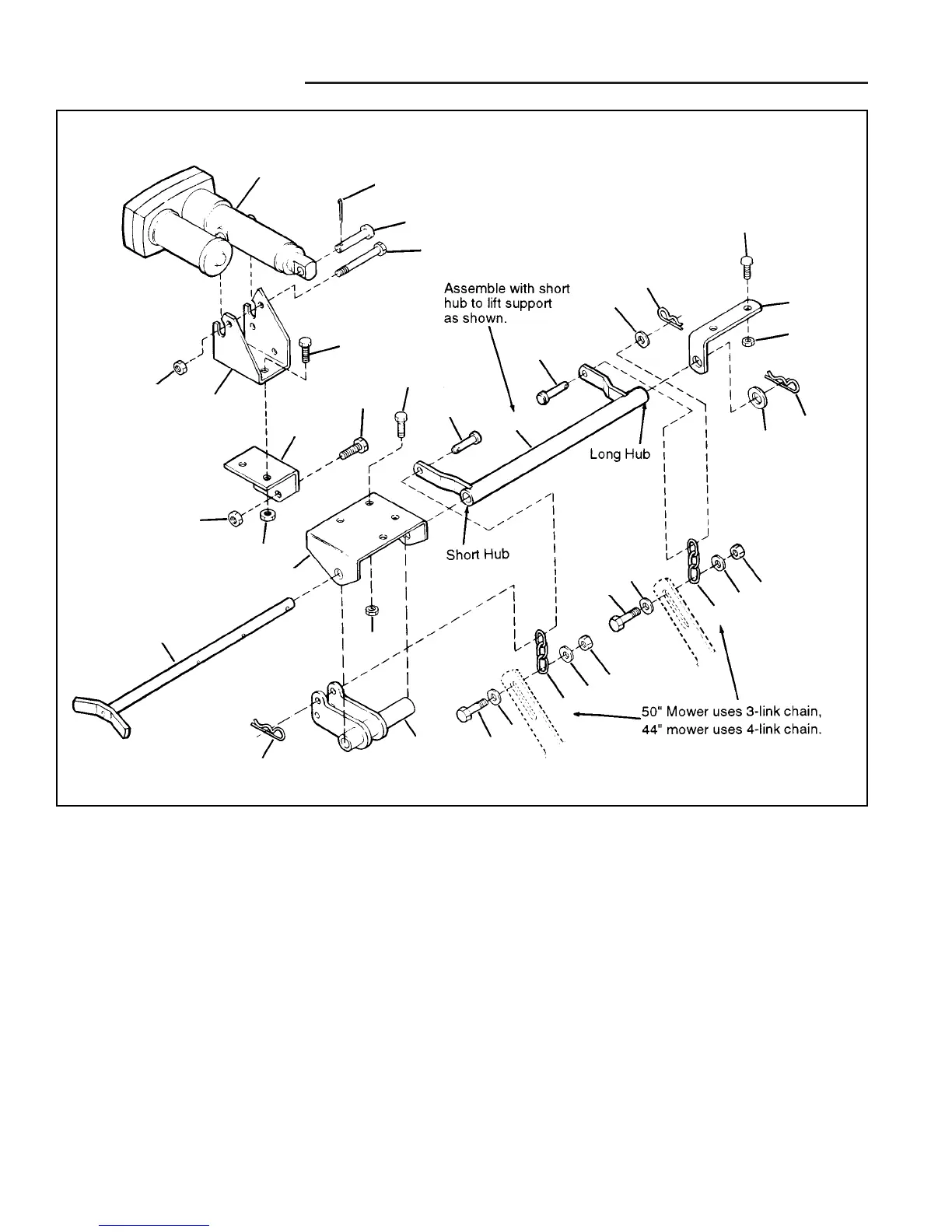

Figure B-30. Double Chain Electric Lift
Ref. Qt. Desc.
No.
1 1 PIN, Clevis
2 1 BRACKET, Actuator
3 1 LIFT, Pivot Bracket
4 1 SHAFT ASSM.
5 1 SUPPORT, Lift
6 1 SUPPORT, Actuator
7 1 POWER LIFT ASSM.
8 2 CHAIN, 3-Link
2 CHAIN, 4-Link
9 1 LIFT ARM ASSM.
10 1 PIN, Clevis
11 1 LIFT TUBE ASSM.
12 1 WASHER, Plain
13 1 PIN, Cotter
Ref. Qt. Desc.
No.
14 4 WASHER, Plain
15 9 NUT, Hex, Lock, ESNA, 5/16-18
16 2 NUT, Hex, Lock, ESNA, 3/8-16
17 2 CAPSCREW, Hex Hd., Whizlock, 3/8-16
18 2 CAPSCREW, Hex Hd., 5/16-18 x 1
19 1 WASHER, Plain
20 6 CAPSCREW, Hex Hd., 5/16-18 x 7/8
21 1 CAPSCREW, Hex Hd., 5/16-18 x 3-1/4
22 2 CAPSCREW, Hex Hd., 5/16-18 x 1-1/2
23 3 CLIP, Hair Pin (Large)
24 1 PIN
Double Chain Electric Lift
