6-33
6 General Repair
6B Hand Controls Repair
DOUBLE CHAIN ELECTRIC LIFT TUBE REPLACEMENT
1. Remove the mower deck as described in Mower
Deck Repair.
2. Remove the hair pin clip (H, Figure 31) and remove
the shaft assembly (B).
3. Remove and replace the lift tube assembly (I).
DOUBLE CHAIN ELECTRIC LIFT ASSEMBLY REMOVAL
NOTE: For power lift electrical tests see Electrical
Troubleshooting.
1. Remove the mower deck as described in Mower
Deck Repair.
2. Remove the safety clip (23, Figure 30) and the long
clevis pin (1) to disconnect the power lift assembly (7)
from the lift arm assembly (9).
3. Disconnect the red and black motor wires.
4. Remove the 3-1/4” long capscrew (21) securing the
power lift assembly.
5. Lift the power lift assembly (7) out the actuator brack-
et (2) for service.

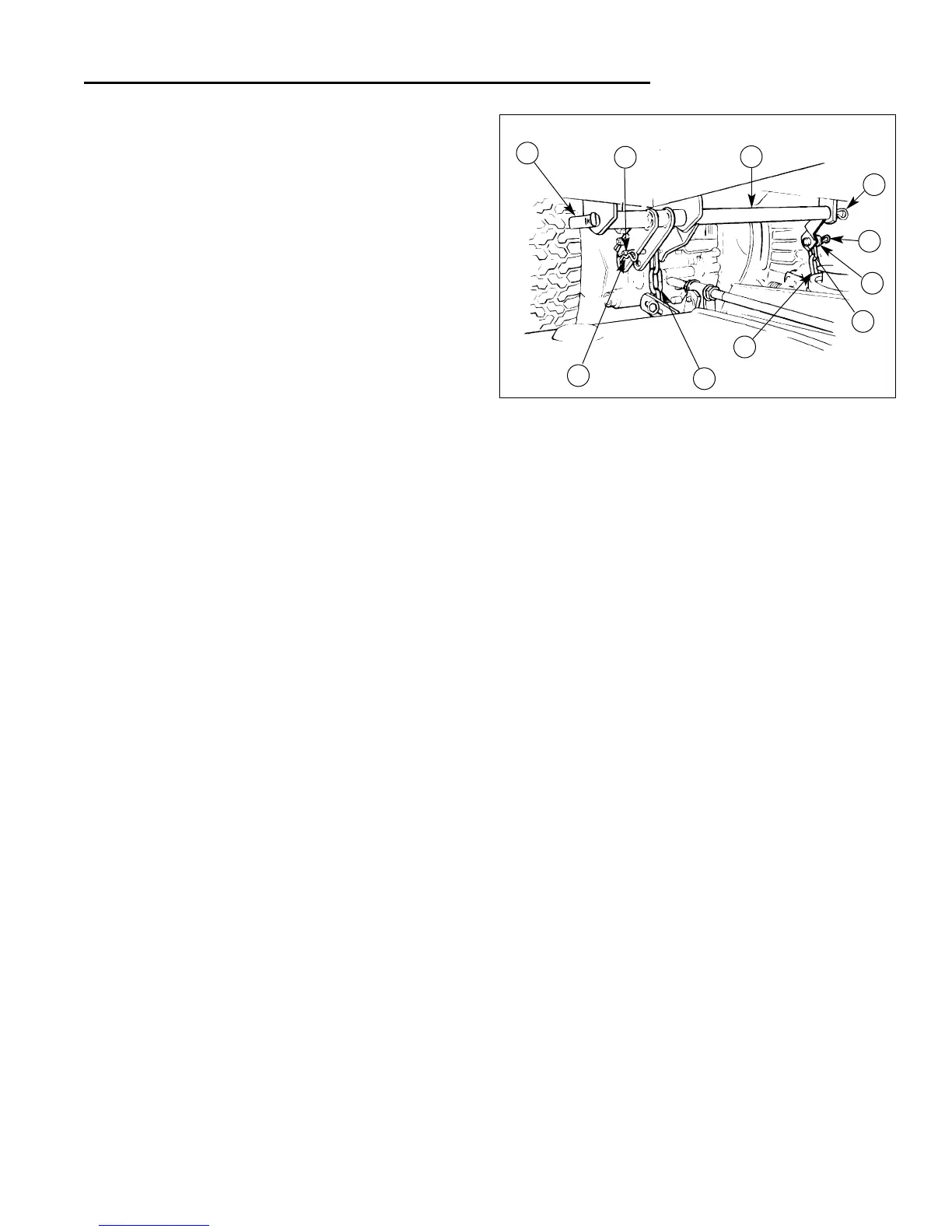

Figure B-31. Mower With Electric Lift
A. Clevis Pin, Long F. Clevis Pin, Short
B. Shaft Assm G. Washer
C. Safety Clip H. Hair Pin Clip
D. Mower Lift Chain, R.H. I. Lift Tube
E. Mower Lift Chain, L.H.
D
G
E
B
C
C
F
A
H
I
