Simplicity 1692024 User Manual

6 - 45
6 General Repair
6C Foot Controls Repair
1 CARRIAGE BOLT, 3/8-16 x 1-3/4
2 IDLER ARM ASSY.
3 SPRING, Drive
4 PULLEY, Idler, Backside
5 WASHER, Plain, 3/8
6 NUT, Hex, Flange, Whiz, 3/8-16
7 PULLEY, V, Idler
8 BELT STOP
9 CLIP RING, 5/8
10 WASHER, 5/8 I.D. x 1-1/4 O.D. x 5/64 Thk.
REF.
NO. DESCRIPTION

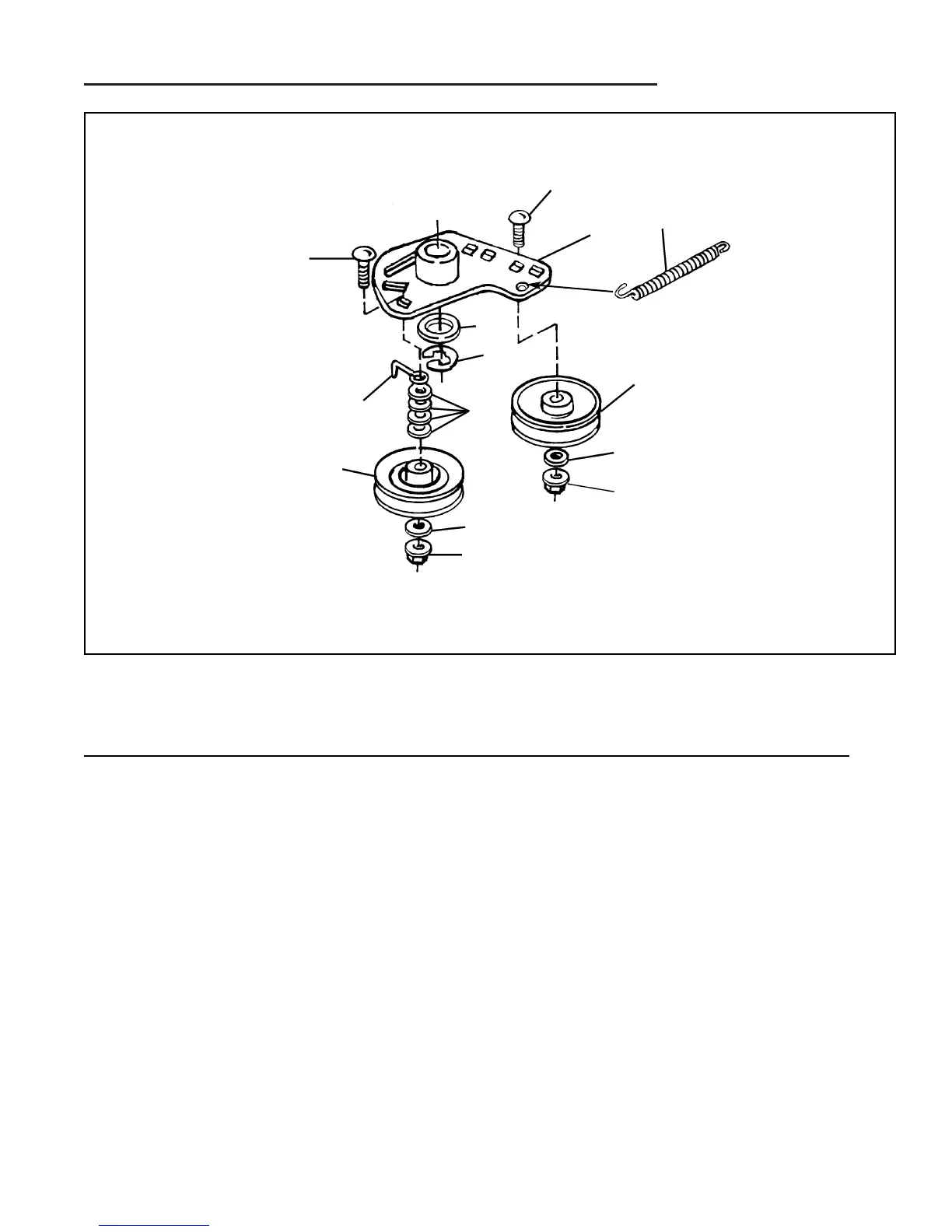

Figure C–13. Idler Arm Assembly - Hydro-Gear K216-3010L Models
1
1
2
3
4
5
6
5
6
7
8
5
10
9
Idler Arm Assembly -
Hydro-Gear K216-3010L Models
