7 - 64
7 Transmission Repair
7E Tuff Torq K210A
14. Remove the seal from the input shaft and the retain-
ing ring from the bearing bore. Pull the shaft assembly
straight up.
13. It is necessary to remove the shift fork shaft, reduc-
tion shaft, shift shaft, and differential all at the same
time. Carefully observe the positions of the compo-
nents as you remove them.
NOTE: Do not lose track of the washers and shims on
these shafts as they are removed from the case. The
shims may remain in the bores, or stick to the bear-
ings as the shafts are removed.

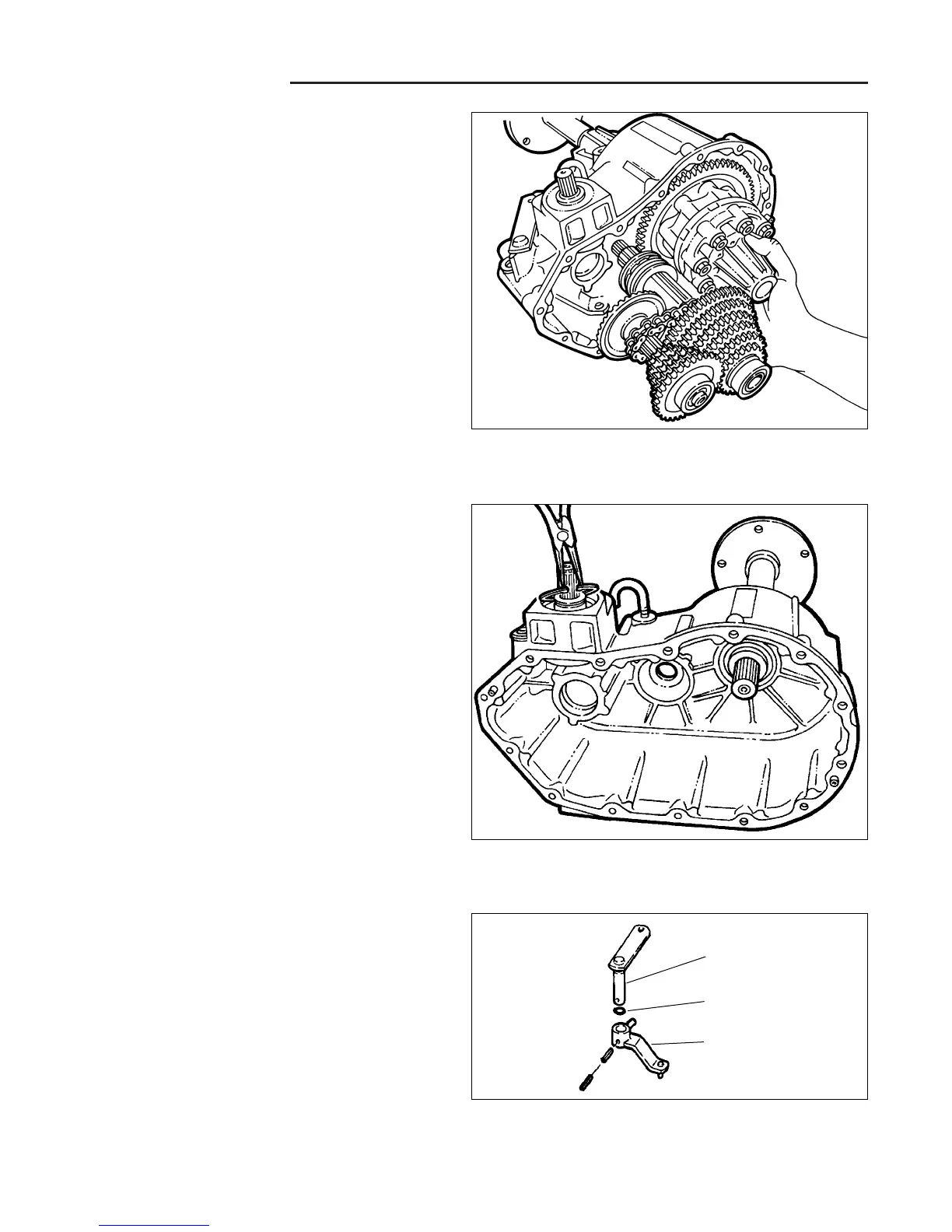

Figure E-15. Remove Major Components
Figure E-16. Remove Input Shaft
15. Remove left axle shaft assembly the same way the
right hand assembly was removed.
16. Remove the shift arm from the range arm by driving
out the double roll pin. Remove range arm seal
Figure E-17. Remove Shift Arm
Range Arm
Seal
Shift Arm
To Next Page
