7 - 65
7 Transmission Repair
7E Tuff Torq K210A

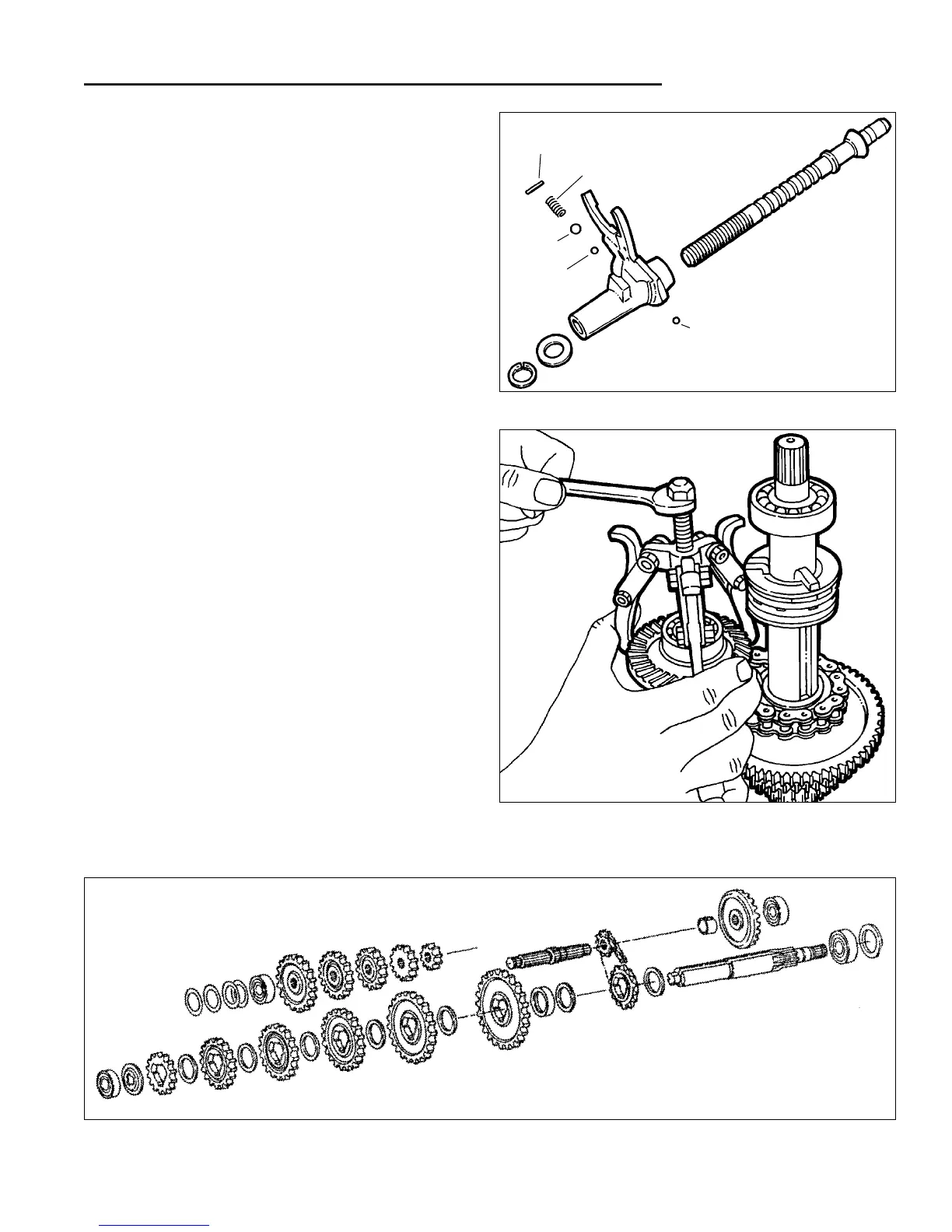

Figure E-18. Fork Shaft Disassembly
Figure E-19. Reduction Shaft Disassembly
17. When removing the shift fork from the fork shaft. Do
not lose the two 3/16” diameter steel balls. The spring
and 3/8” ball can be removed by driving out the roll
pin.
3/16"Ball
3/8"Ball
3/16"Ball
Roll Pin
3/16"Ball
18. Using a three-way puller, remove the 35 tooth spiral
bevel gear and roller bearing from end of reduction
shaft.
19. Use puller to remove roller bearing from opposite end
of reduction shaft. Remove five reduction gears from
reduction shaft, and pull shaft from chain sprocket.
20. Remove bearing from shift shaft, and remove gears
in order shown below. Do not lose washers between
gears.
Figure E-20. Reduction Shaft and Shift Shaft Disassembly
