7 - 66
7 Transmission Repair
7E Tuff Torq K210A

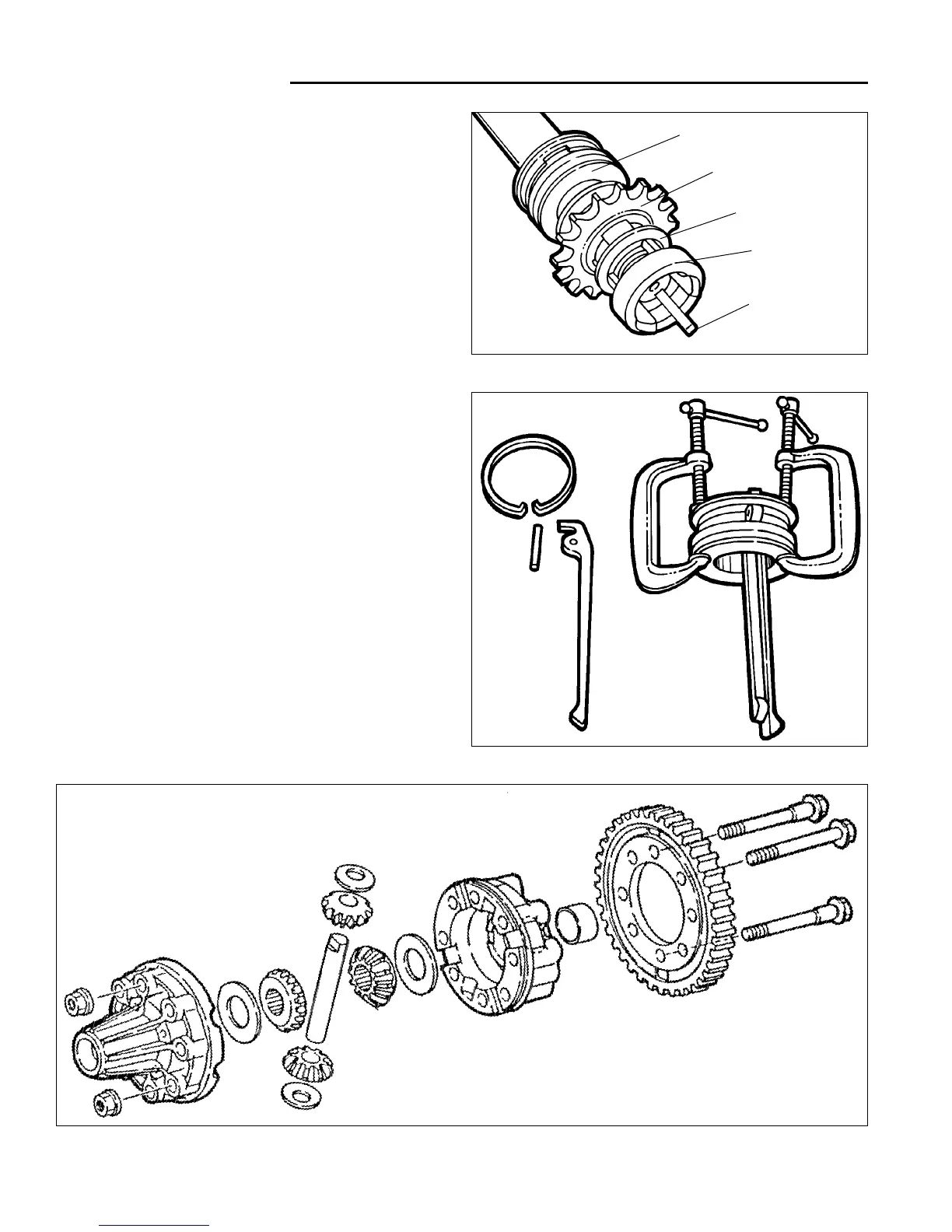

Figure E-21. Disassemble Shift Collar
Figure E-22. Remove Shift Keys
Figure E-23. Differential Disassembly
22. To remove the shift keys: remove the conical spring,
compress the spring washers with a C-clamp,
remove the roll pins, and remove the shift keys from
the collar.
21. Remove neutral collar, washer, sprocket, chain, and
shifter from shift shaft.
Neutral Collar
Washer
Sprocket
Shifter
Shift Fork
23.Remove eight bolts and nuts holding differential
housing together.
NOTE: Nuts are installed with Loctite at the factory.
