5. Check the windows for an equal amount of tension
when the gauge is inserted and removed, and make
any necessary adjustments by tightening or
loosening the adjustment nuts.
NOTE: The actual air gap between the rotor and
armature may vary even after performing the adjustment
procedure. This is due to dimensional variations on
component parts, and is an acceptable condition.
6. Check the mower blade stopping time. The mower
blades and mower drive belt should come to a
complete stop within five seconds after the electric
PTO switch is turned off.
7. Perform the BLADE BRAKE CHECK found in the
Maintenance section. Mower blades and mower drive
belt should come to a complete stop within five
seconds after electric PTO switch is turned off.
Mower Belt Replacement
PTO BELT REPLACEMENT
1. Park the tractor on a smooth, level surface such as a
concrete floor. Disengage the PTO, turn off the
engine and lock the parking brake. Remove the key.
Lower the mower to its lowest position.
2. Remove the left and right mower belt covers.
3. Move the idler arm release lever (A, Figure 26) to
relieve belt tension. Remove the PTO belt (B) from
the engine PTO clutch pulley (C).
4. Remove the old belt and replace with a new one.
Make sure the belt is seated in the pulley grooves.
5. Move the idler arm release lever to release tension
on the PTO belt and install on the engine PTO pulley
and mower PTO pulley (D) as shown.
6. Reinstall the right and left belt covers.
7. Run the mower under a no-load condition for about 5
minutes prior to using.
ARBOR DRIVE BELT REPLACEMENT
Replacement of the arbor drive belt (E, Figure 26)
requires the idler pulley tensioning spring to be released.
See you local authorized servicing dealer for this repair.

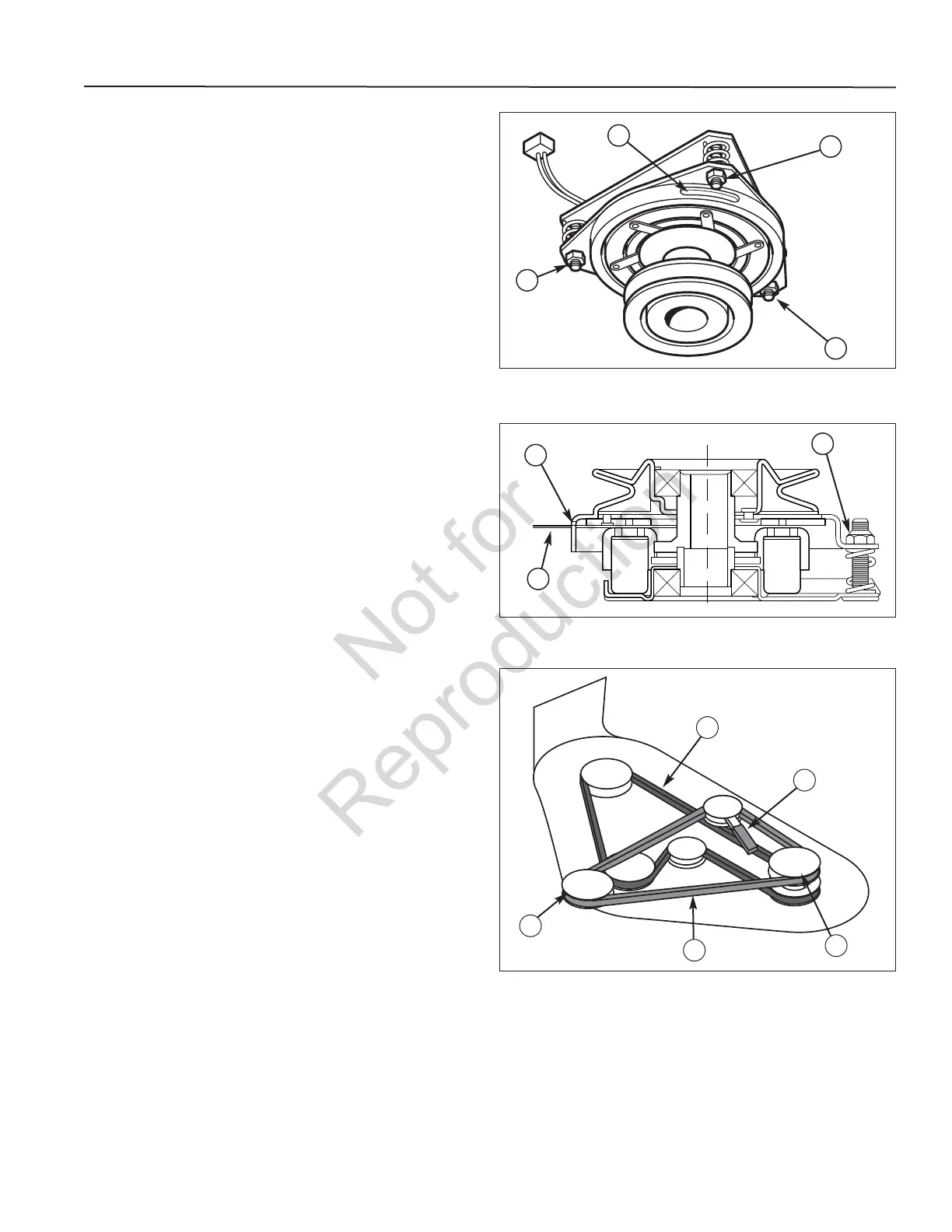

Figure 24. PTO Clutch Adjustment
A
B
B
B
B
C
A
Figure 25. Adjust PTO Clutch
Figure 26. PTO Belt Replacement
B
C
D
A
31
TROUBLESHOOTING
E
