Simplicity Regent Hydro-Gear 0650 Series

0500
Models
0650 Models
A
B
C
D
E
F
G
H
I
J
K
L
T
U
V
W
M
N
O
N
R
S
R
T
X
Y
Z
AA
P
Q
E

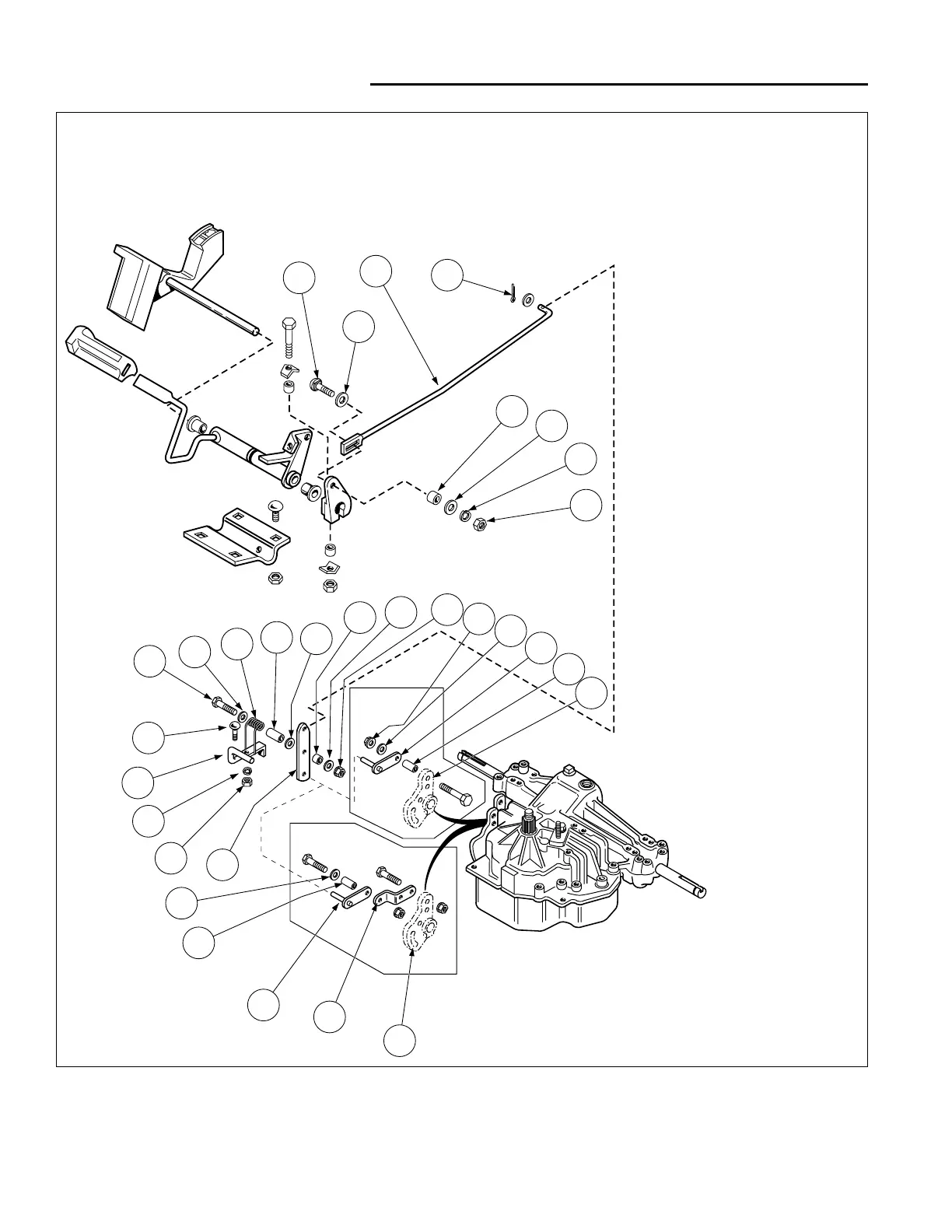

Figure 10. Transmission Control Linkage - Hydro-Gear 0500 / 0650 Models
A. Carriage Bolt
B. Trans. Control Rod
C. Cotter Pin & Washer
D. Spacer
E. Washer
F. Lockwasher
G. Nut
H. Capscrew
I. Washer
J. Spring
K. Spacer
L. Washer
M. Spacer
N. Washer
O. Nut
P. Nut
Q. Pivot Lever
R. Speed Control Lever
S. Spacer
T. Cam Lever
U. Carriage Bolt
V. Neutral Adj. Rod
W. Lockwasher
X. Nut
Y. Washer
Z. Spacer
AA. Reversing Arm
9 Drive Controls Service
Hydro-Gear 0500 / 0650 Models
9 - 10
Transmission Control Linkage -
Hydro-Gear 0500 / 0650 Models
