Simplicity Regent Hydro-Gear 0650 Series

9 Drive Controls Service
Peerless (Gear Drive) Models
9 - 12
A
B
C
D
E
F
G
H
I
A
J
K
L
M
N
O
P
Q
R
S
T
U
L
A
W
X
V

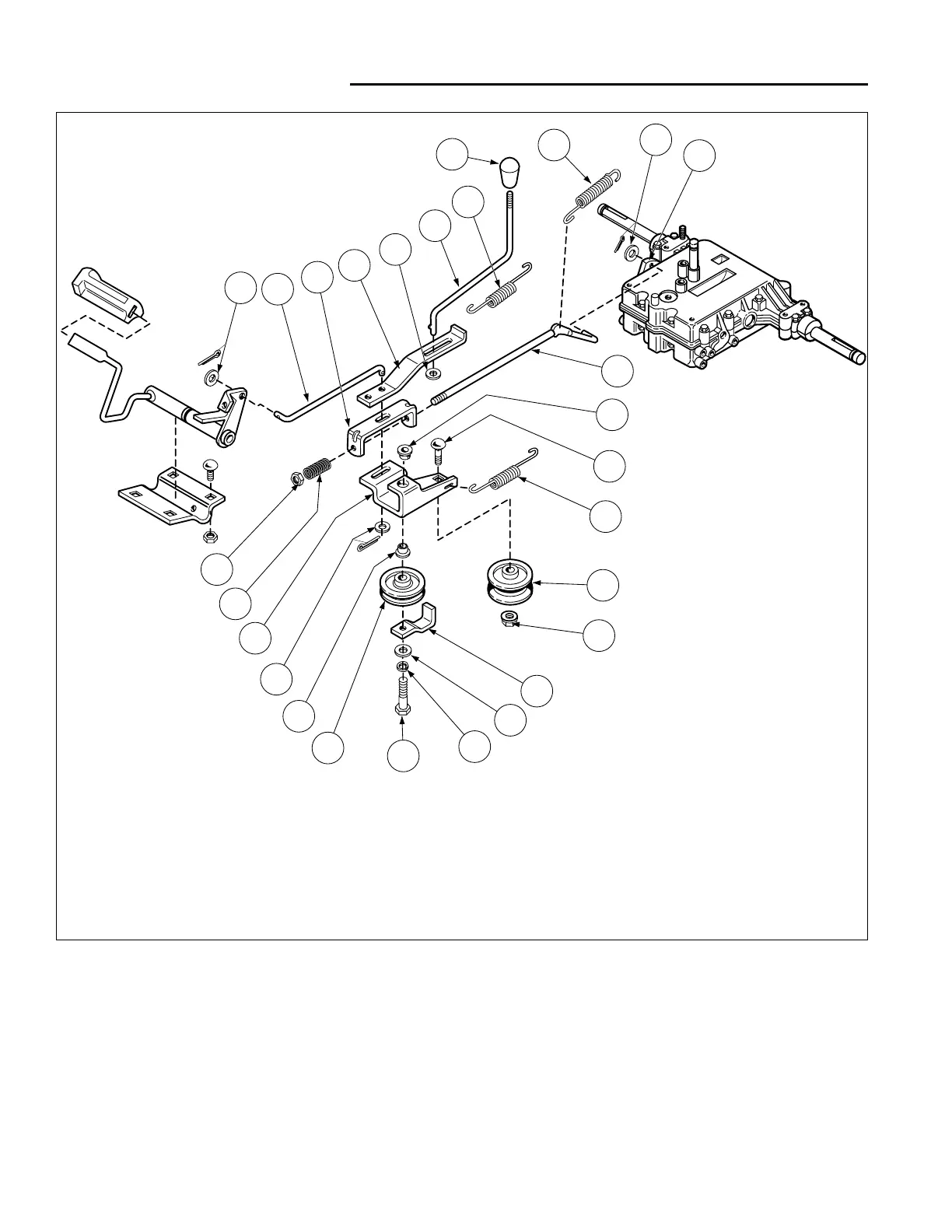

Figure 11. Foot Control Group - Peerless Models
A. Washer & Cotter Pin
B. Front Brake Rod
C. Brake Rod Guide
D. Parking Brake Lever
E. Washer
F. Parking Brake Rod
G. Brake Return Spring
H. Parking Brake Knob
I. Brake Return Spring
J. Brake Lever (Transmission)
K. Rear Brake Rod
L. Bushing
M. Carriage Bolt
N. Idler Bracket Spring
O. Backside Idler Pulley
P. Nut
Q. Belt Guide
R. Washer
S. Lockwasher
T. Capscrew
U. V Idler Pulley
V. Idler Bracket
W. Brake Spring
X. Locknut
Clutch / Brake Linkage -
Peerless (Gear Drive) Models
