Simplicity Regent Hydro-Gear 0650 Series

9 Drive Controls Service
Peerless (Gear Drive) Models
9 - 14
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
J
U
V
W

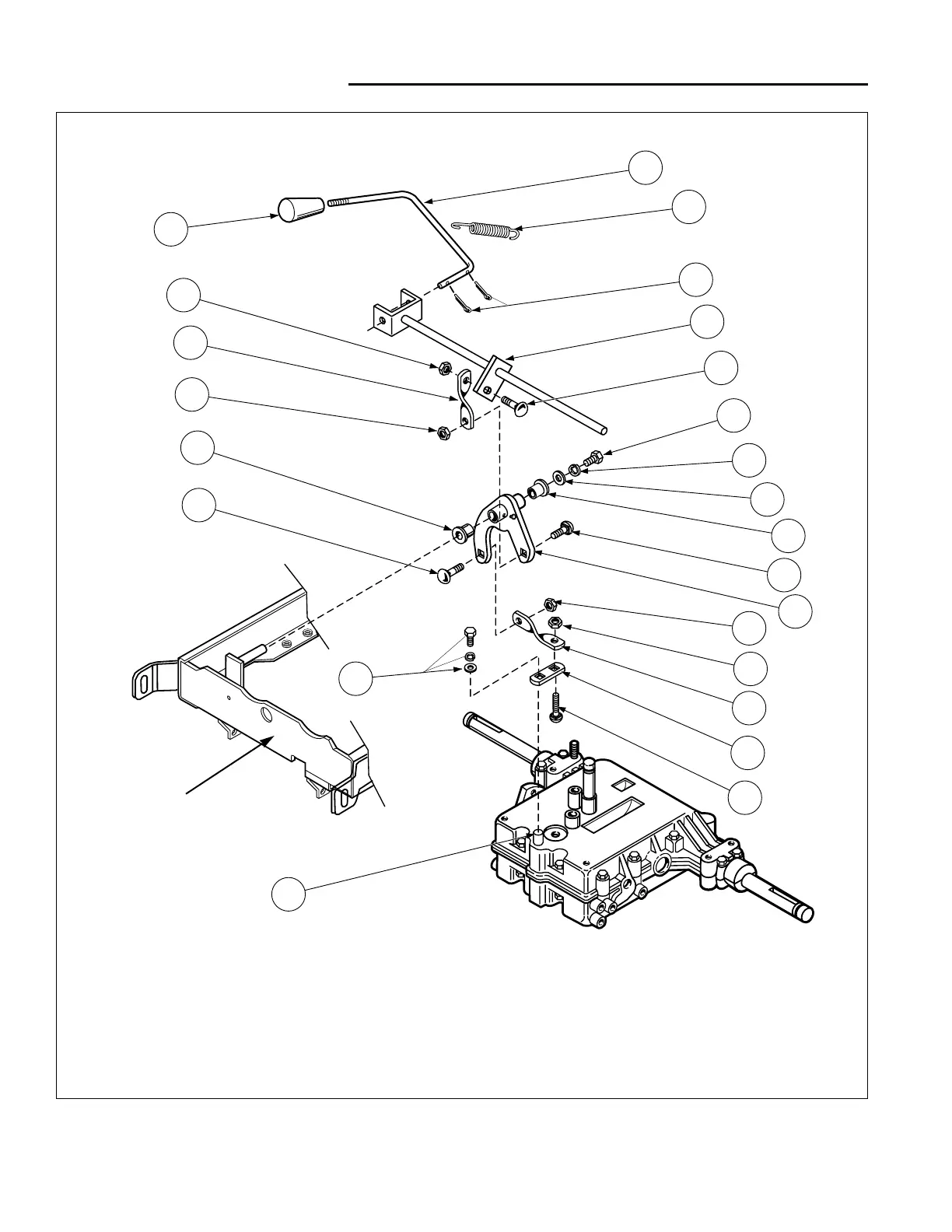

Figure 13. Shift Linkage - Peerless (Gear Drive) Models
A. Shift Lever Knob
B. Shift Lever
C. Spring
D. Cotter Pins
E. Pivot Shaft
F. Carriage Bolt
G. Capscrew
H. Lockwasher
I. Washer
J. Bushing
K. Carriage Bolt
L. Bell Crank Assembly
M. Nut
N. Nut
O. Lower Shift Link
P. Shift Lever
Q. Carriage Bolt
R. Shift Shaft (Transmission)
S. Capscrew, Lockwasher,
Washer
T. Carriage Bolt
U. Nut
V. Upper Shift Link
W. Nut
Shift Linkage -
Peerless (Gear Drive) Models
Transmission
Carrier Assembly
(Cut-Away)
