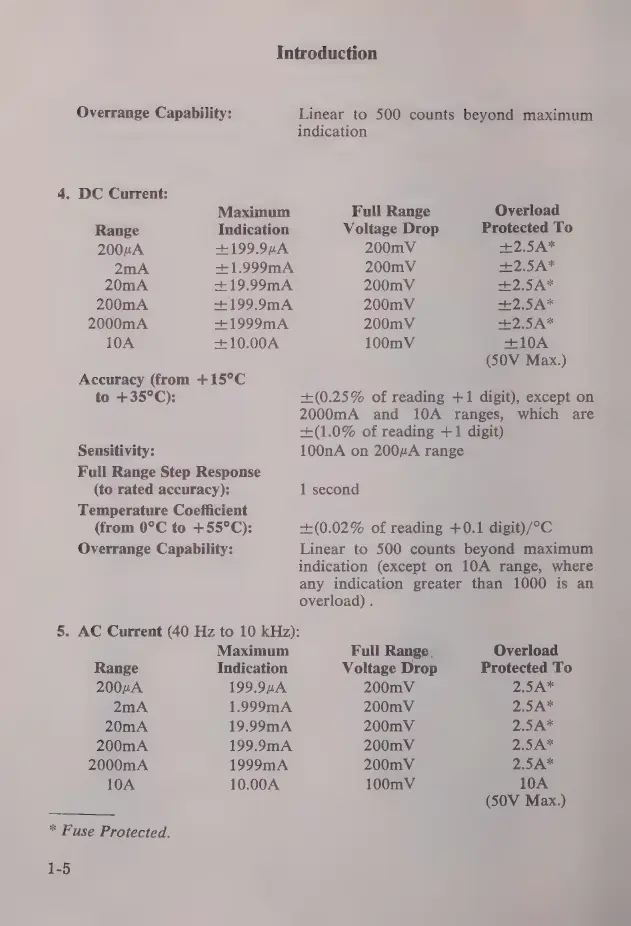

Introduction
Overrange Capability: Linear to 500 counts beyond maximum
indication
4. DC Current:
Maximum Full Range Overload
Range Indication Voltage Drop Protected To
2004A 2-199.94A 200mV ESAF
2mA +1.999mA 200mV SDA
20mA
+19.99тА
200mV
sD
AIT
200mA =199.9ПА 200mV E25 A*
2000mA +1999mA 200mV PRIJAT
10A +10.00A 100mV +10A
(50У Max.)
Accuracy (from +15°C
to +35°C):
Sensitivity:
Full Range Step Response
(to rated accuracy):
Temperature Coefficient
(from 0°C to +55°C):
Overrange Capability:
+(0.25% of reading +1 digit), except on
2000mA and 10A ranges, which are
+(1.0% of reading +1 digit)
100nA on 2004A range
1 second
+(0.02% of reading +0.1 digit)/°C
Linear to 500 counts beyond maximum
indication (except on 10A range, where
any indication greater than 1000 is an
overload) .
5. AC Current (40 Hz to 10 kHz):
Range
2004A
2mA
20mA
200mA
2000mA
10A
* Fuse Protected.
1-5
Maximum
Indication
199.94A
1.999mA
19.99mA
199.9mA
1999mA
10.00A
Full Range, Overload
Voltage Drop Protected To
200mV 2:595
200mV ОА
200mV 2.5A*
200mV 25 A
200mV 2.5A*
100mV 10A
(50V Max.)
