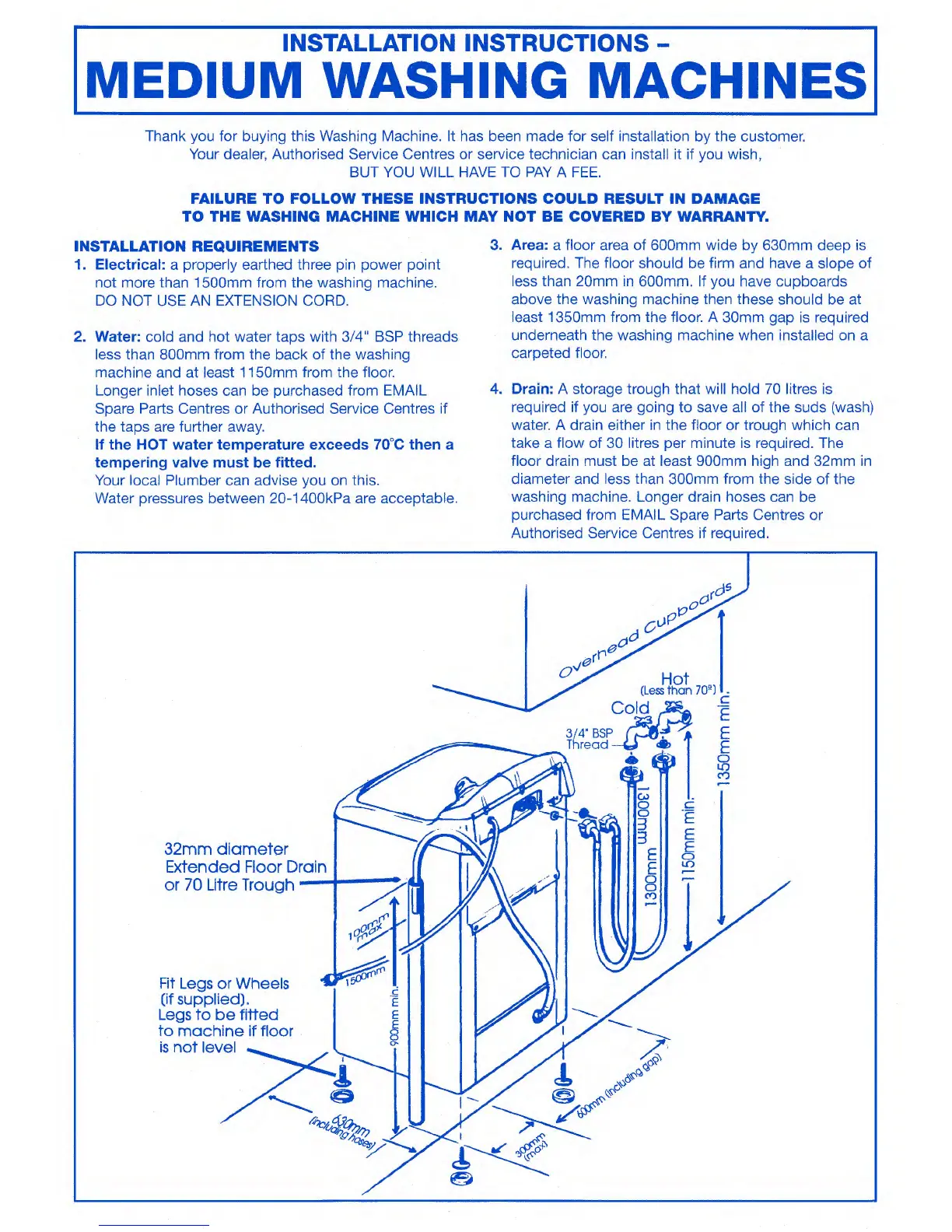

INSTALLATION INSTRUCTIONS -
MEDIUM WASHING MACHINES
Thank you for buying this Washing Machine. It has been made for self installation by the customer.
Your dealer, Authorised Service Centres or service technician can install it if you wish,
BUT YOU WILL HAVE TO PAY A FEE.
FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN DAMAGE
TO THE WASHING MACHINE WHICH MAY NOT BE COVERED BY WARRANTY.
INSTALLATION REQUIREMENTS
1.
Electrical:
a properly earthed three pin power point
not more than 1500mm from the washing machine.
DO NOT USE AN EXTENSION CORD.
2.
Water:
cold and hot water taps with 3/4" BSP threads
less than 800mm from the back of the washing
machine and at least 1150mm from the floor.
Longer inlet hoses can be purchased from EMAIL
Spare Parts Centres or Authorised Service Centres if
the taps are further away.
If the HOT water temperature exceeds 70
°
C then a
tempering valve must be fitted.
Your local Plumber can advise you on this.
Water pressures between 20-1400kPa are acceptable.
3.
Area:
a floor area of 600mm wide by 630mm deep is
required. The floor should be firm and have a slope of
less than 20mm in 600mm. If you have cupboards
above the washing machine then these should be at
least 1350mm from the floor. A 30mm gap is required
underneath the washing machine when installed on a
carpeted floor.
4.
Drain:
A storage trough that will hold 70 litres is
required if you are going to save all of the suds (wash)
water. A drain either in the floor or trough which can
take a flow of 30 litres per minute is required. The
floor drain must be at least 900mm high and 32mm in
diameter and less than 300mm from the side of the
washing machine. Longer drain hoses can be
purchased from EMAIL Spare Parts Centres or
Authorised Service Centres if required.
