Terminal connections

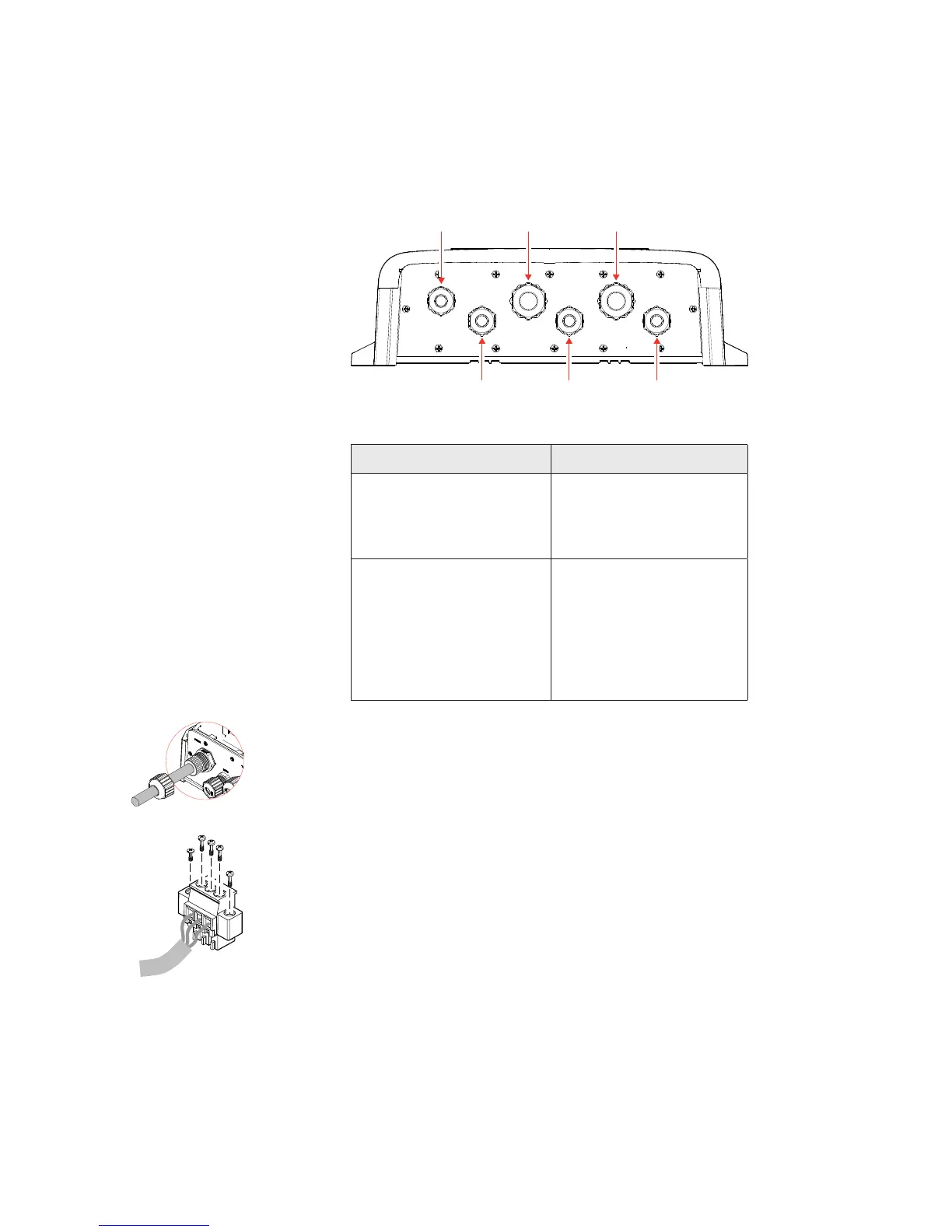

Select cable inlets according to cable diameter and 1
labelling on the front plate
POWER
XDCR HI
XDCR LO
SPEED TEMP 1 TEMP 2
Cable Cable diameter
M20
Transducer 1 -
Transducer 2 -
10.0 mm - 14.0 mm
(3.94” - 5.51”)
M16
Power -
Speed -
Temperature 1 -
Temperature 2 -
6.0 mm - 10.0 mm
(2.36” - 3.94”)
2 Remove the outer sealing nuts from selected cable
glands, and thread those on to the cables
3 Terminate the wires to the terminal blocks
according to the terminal specication in the
following pages
Connect the terminal blocks to the pcb4
Tighten the outer sealing nuts by hand5
Close the BSM-2 cover and secure the cables6
