16 | BSM-2 Installation manual

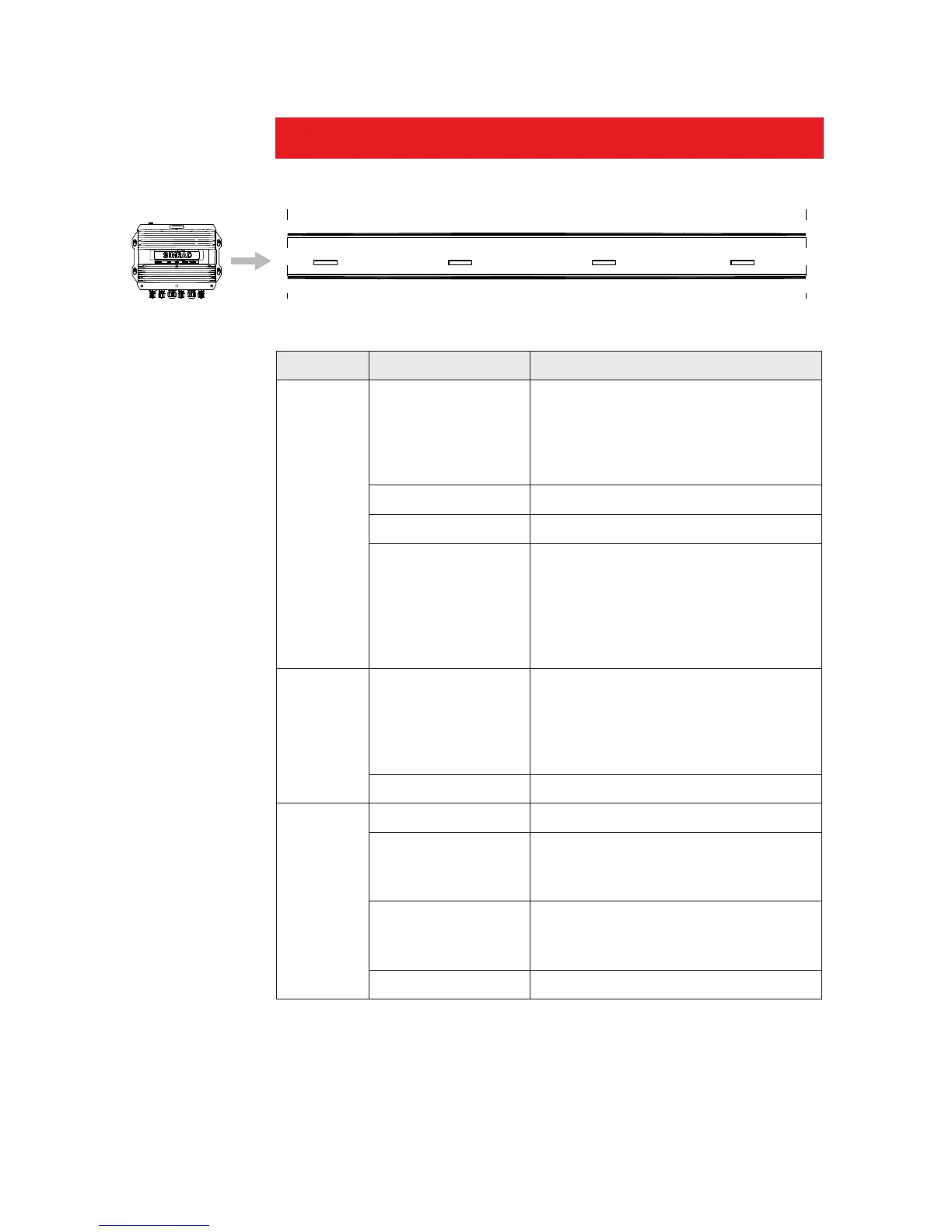

Trouble shooting
POWER NETWORK TRANSDUCER-2TRANSDUCER-1
IND. STATUS DESCRIPTION
Power
Off
No power connection
Check power and power -
cable
Check yellow wire -
On - Red System starting
On - Green System operational
Flashing -
Red/Green
Software error or unit
reprogrammed
Restart the unit -
If still not ok contact -
Customer Support
Network
Off
No Ethernet connection
Check cable -
Verify that remote unit is -
turned ON
On - Green Ethernet connected and ok
Trans-
ducers
Off Transducer not connected
Flashing every
0.5 second -
Green
Initializing transmitter
Flashing every
second -
Green
Searching for bottom signal
On - Green System operational
