BSM-2 Installation manual | 13
ENGLISH
7 pins transducers
An optional transducer adapter cable is available
(000-10377-001) for connecting 7 pin transducers to the
BSM-2.

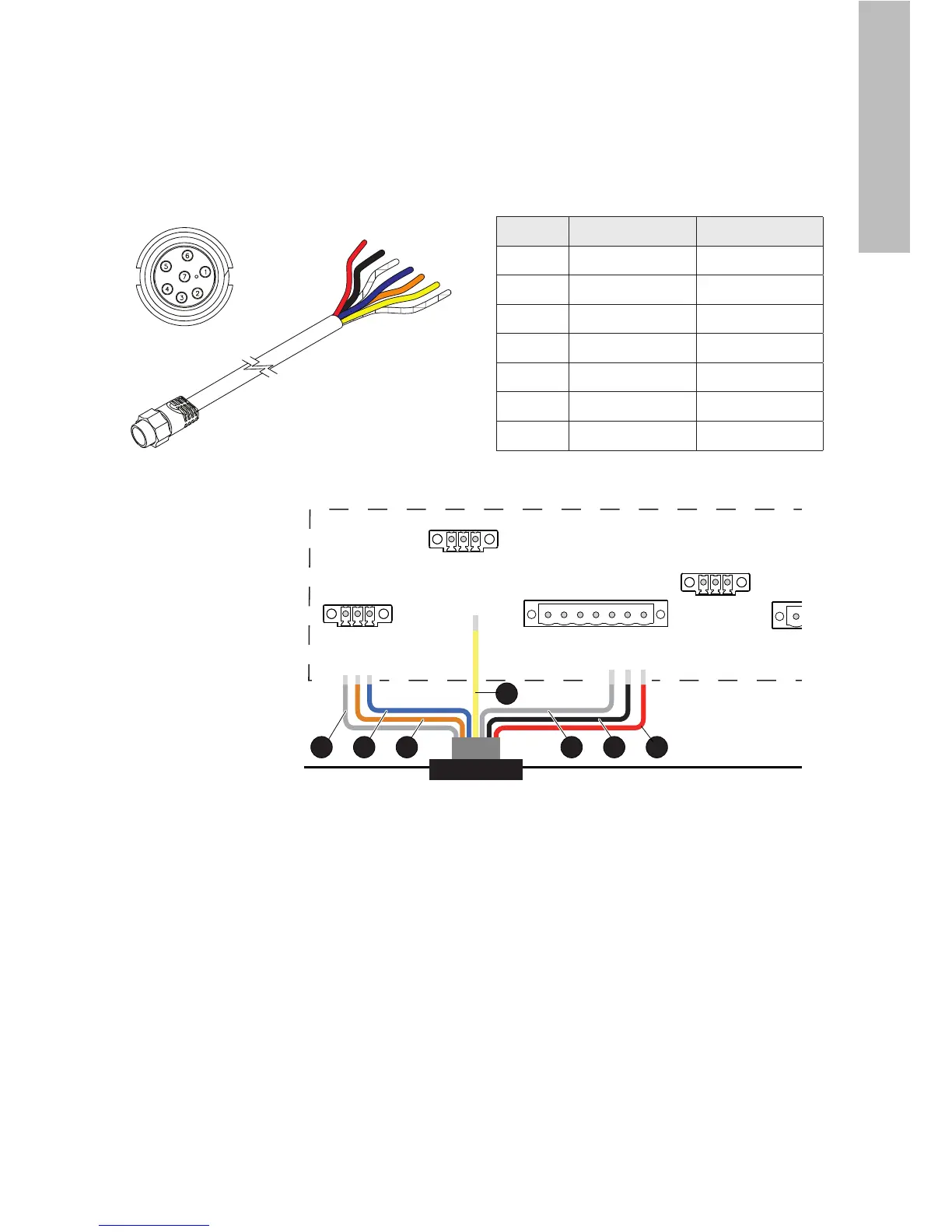

Front View
XDCR LOW
SPD PWR SPD IN GND
SPEED
J4
1
XDCR HIGH
XDCR Z1 XDCR Z2 XDCR Z3 XDCR - XDCR + SHIELD IMP SEL
J8
1
XDCR Z1 XDCR Z2
XDCR Z3
XDCR - XDCR + SHIELD IMP SEL
J7
1
TEMP LOW
TEMP LOW GND XDCR ID LOW
J6
1
TEMP HIGH
TEMP HIGH GND XDCR ID HIGH
J5
1
1
4
3 267 5
REF. COLOR FUNCTION
1 Red XDCR+
2 Black XDCR-
3 XDCR Shield SHIELD
4 Yellow TEMP
5 Orange SPD IN
6 Blue SPD PWR
7 Shield GND
