Simrad GO XSE - Forwardscan; The Forwardscan Image

ForwardScan
ForwardScan sonar is a navigational aid that helps you monitor the
underwater environment in front of your vessel while carrying out
slow speed maneuvers.
To use the ForwardScan feature you must have a ForwardScan
transducer mounted on your vessel. For installation instructions,
refer to the ForwardScan transducer installation manual.
Ú
Note: Do not rely on this equipment as your principle
source of navigation or hazard detection.
Ú
Note: Do not use this equipment to gauge depth or other
conditions for swimming or diving.

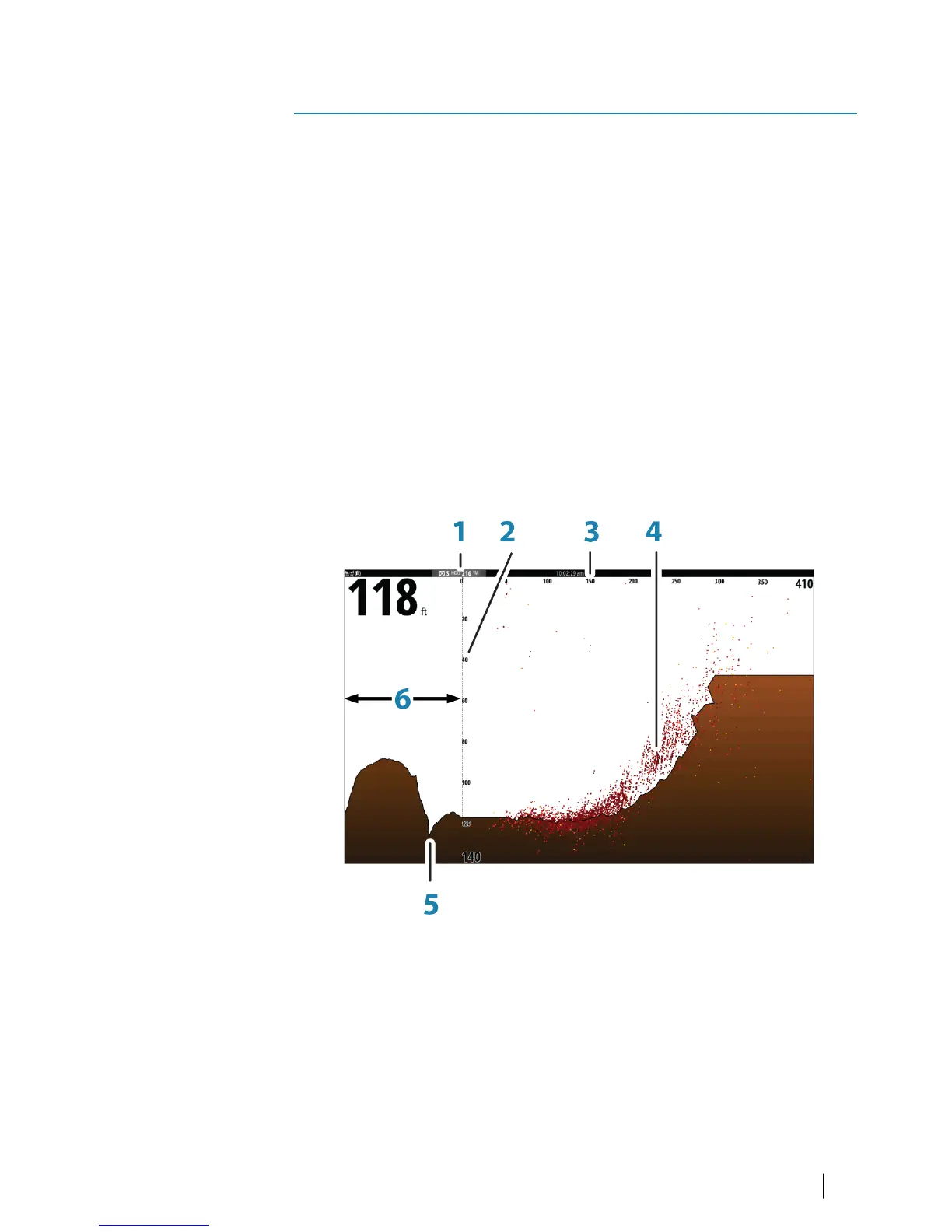

The ForwardScan image
1 Transducer location shown as the origin on the page
2 Depth range scale and vessel position
3 Forward range scale
4 Point data
