Simrad HS 75 - Dimensions; Physical Dimensions and Mounting Details

12

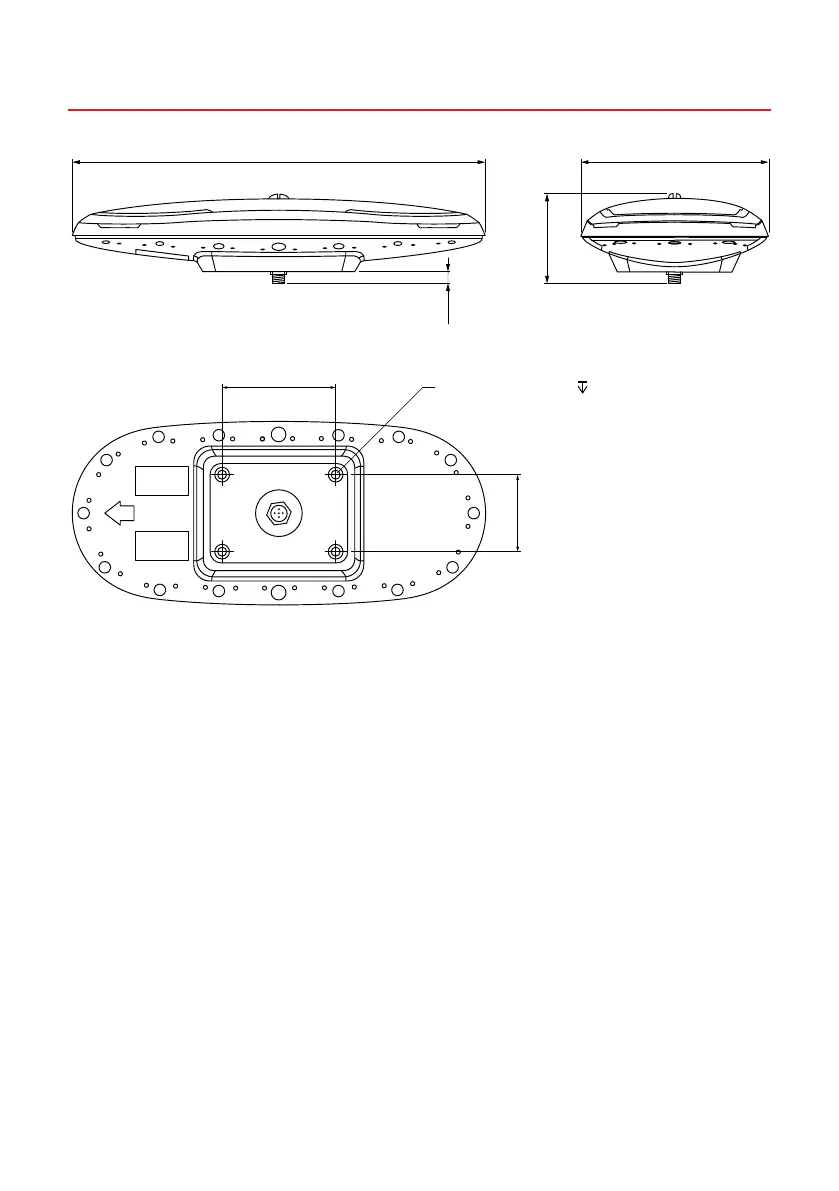

DIMENSIONS
94.0 mm
(3.70 “)
63.5 mm
(2.50 “)
348.2 mm
(13.71 “)
9.5 mm
(0.37 “)
158.4 mm
(6.23 “)
74.45 mm
(2.93 “)
Qty. 4 - M8x1.25 - 12.7 (0.50 “)
